← Jackrabbit PC 30-36 Pre-Cleaner (CAT 2.8L)

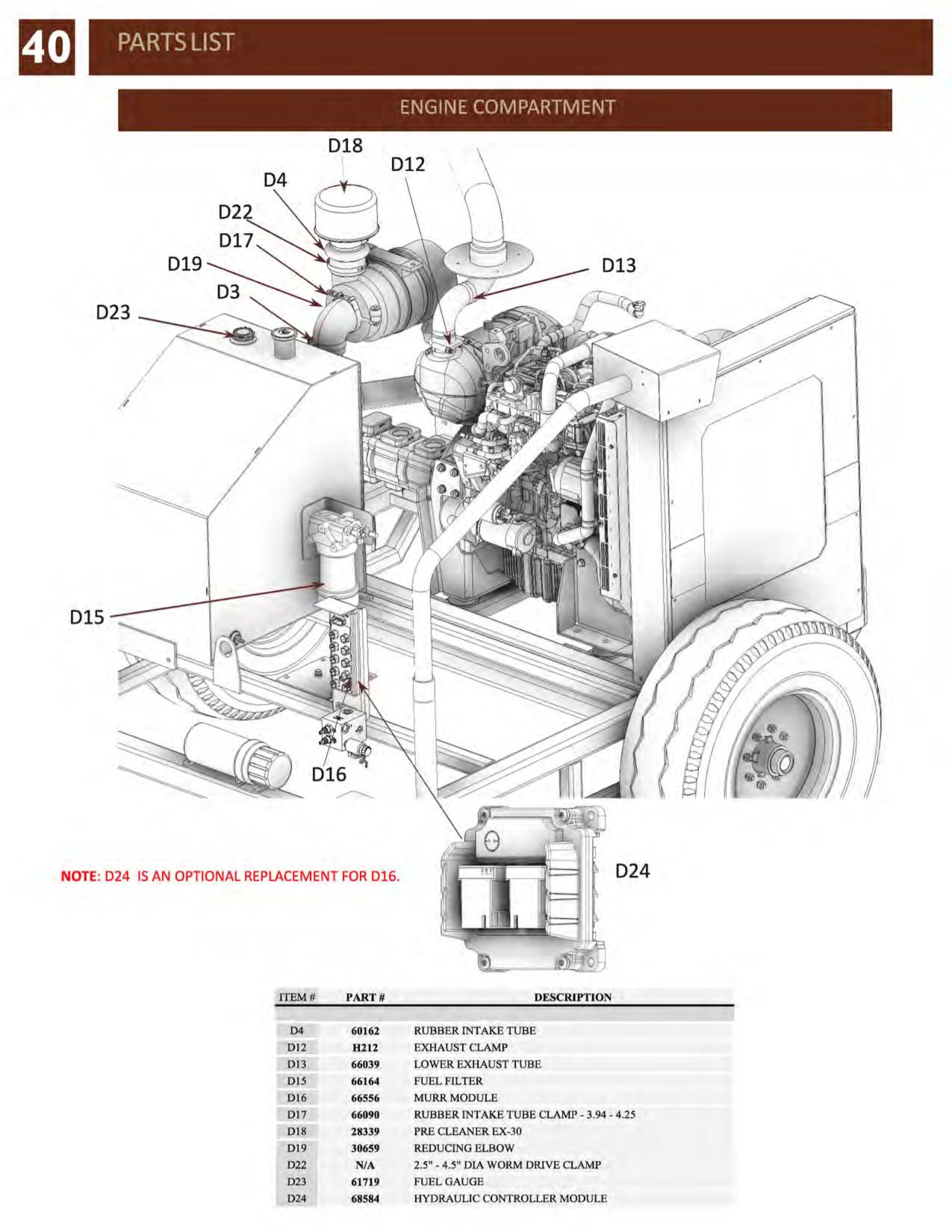

Engine Compartment · Jackrabbit Jackrabbit PC 30-36 Pre-Cleaner (CAT 2.8L)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| D4 | 60162 | RUBBER INTAKE TUBE | |
| D12 | H212 | EXHAUST CLAMP | |
| D13 | 66039 | LOWER EXHAUST TUBE | |
| D15 | 66164 | FUEL FILTER | |
| D16 | 66556 | MURR MODULE | |
| D17 | 66090 | RUBBER INTAKE TUBE CLAMP - 3.94 - 4.25 | |
| D18 | 28339 | PRE CLEANER EX-30 | |
| D19 | 30659 | REDUCING ELBOW | |
| D22 | N/A | 2.5" - 4.5" DIA WORM DRIVE CLAMP | |
| D23 | 61719 | FUEL GAUGE | |
| D24 | 68584 | HYDRAULIC CONTROLLER MODULE | |
| E1 | 66163 | OIL FILTER ELEMENT AND O-RING KIT | |
| E3 | 66166 | ALTERNATOR | |
| E6 | 66170 | OIL PRESSURE SWITCH SENSOR | |
| E7 | 66171 | OIL PRESSURE SWITCH SENSOR SEAL | |
| E18 | 66184 | PRIMARY SPEED POSITION SENSOR | |
| E19 | 66185 | PRIMARY SPEED POSITION SENSOR SEAL | |
| E27 | 66202 | INTAKE THROTTLE VALVE | |
| E29 | 66206 | DPF | |
| E31 | 66210 | THERMOSTAT |
