Horizontal Bin Conveyor · Jackrabbit Jackrabbit PC 30-36 Pre-Cleaner (CAT 2.8L)

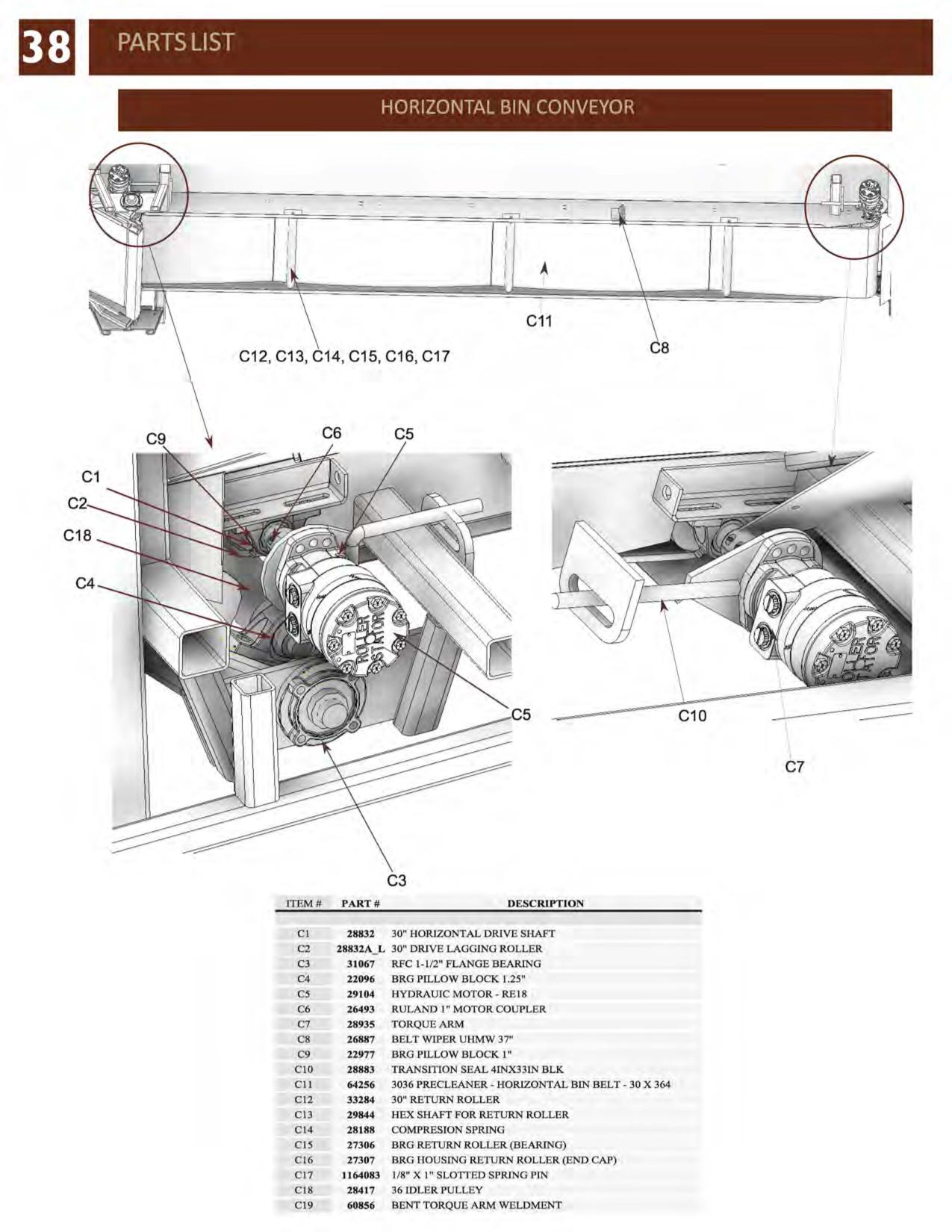

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| C1 | 28832 | 30" HORIZONTAL DRIVE SHAFT | |
| C2 | 28832A_L | 30" DRIVE LAGGING ROLLER | |
| C3 | 31067 | RFC 1-1/2" FLANGE BEARING | |
| C4 | 22096 | BRG PILLOW BLOCK 1.25" | |
| C5 | 29104 | HYDRAUIC MOTOR - RE18 | |
| C6 | 26493 | RULAND 1" MOTOR COUPLER | |
| C7 | 28935 | TORQUE ARM | |
| C8 | 26887 | BELT WIPER UHMW 37" | |
| C9 | 22977 | BRG PILLOW BLOCK 1" | |
| C10 | 28883 | TRANSITION SEAL 4INX33IN BLK | |
| C11 | 64256 | 3036 PRECLEANER - HORIZONTAL BIN BELT - 30 X 364 | |
| C12 | 33284 | 30" RETURN ROLLER | |
| C13 | 29844 | HEX SHAFT FOR RETURN ROLLER | |
| C14 | 28188 | COMPRESION SPRING | |
| C15 | 27306 | BRG RETURN ROLLER (BEARING) | |
| C16 | 27307 | BRG HOUSING RETURN ROLLER (END CAP) | |
| C17 | 1164083 | 1/8" X 1" SLOTTED SPRING PIN | |
| C18 | 28417 | 36 IDLER PULLEY | |
| C19 | 60856 | BENT TORQUE ARM WELDMENT | |
| D1 | 66628 | EXHAUST PIPE | |
| D2 | 66220 | BATTERY KIT | |
| D3 | 27248 | INTAKE TUBE CLAMP | |
| D5 | 66549 | AIR INTAKE TUBE | |
| D6 | 66201 | ENGINE CONTROL MODULE | |
| D7 | 66173 | AMBIANT AIR TEMP SENSOR | |
| D8 | 56600 | AIR FILTER HOUSING | |
| D9 | 33898 | PRIMARY AIR FILTER | |
| D10 | 33899 | SECONDARY AIR FILTER | |
| D11 | 61692 | GAS SHOCK | |
| D14 | 733-5794 | 3" MUFFLER CLAMP | |
| D20 | 29576 | AIR INTAKE ELBOW | |
| D21 | 66547 | RUBBER INSERT |
