← Jackrabbit PC 30-36 Pre-Cleaner (CAT 2.8L)

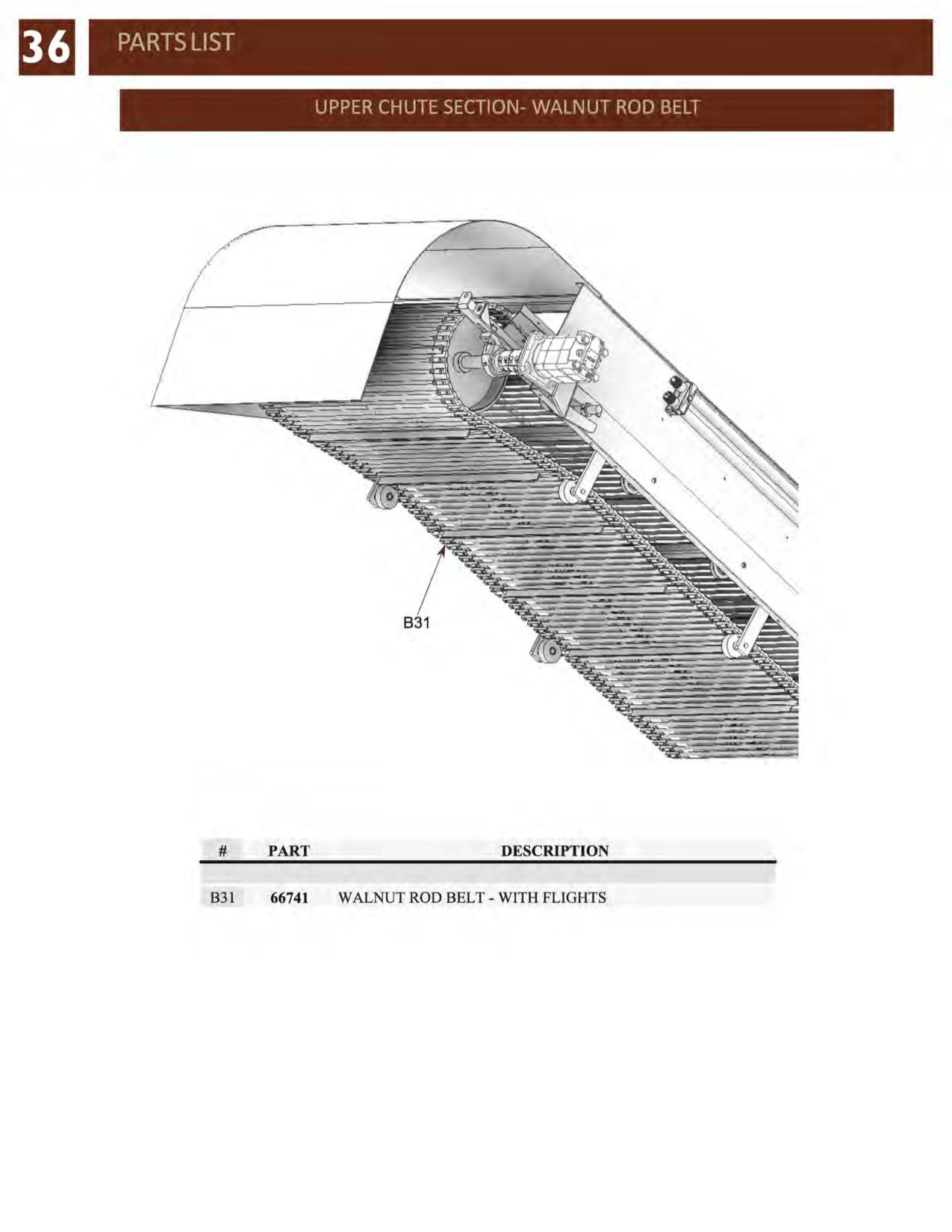

Upper Chute Section - Walnut Rod Belt · Jackrabbit Jackrabbit PC 30-36 Pre-Cleaner (CAT 2.8L)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| B31 | 66741 | WALNUT ROD BELT - WITH FLIGHTS | |
| B32 | 66740 | SNUB ROLLER WELDMENT | |
| B33 | 66614 | 36 IN WALNUT BELT RETURN ROLLER | |
| B34 | 66616 | 36 PRECLEANER INCLINE CLEATED BELT | |
| B35 | 66622 | 5/8" PILLOW BLOCK BEARING |
