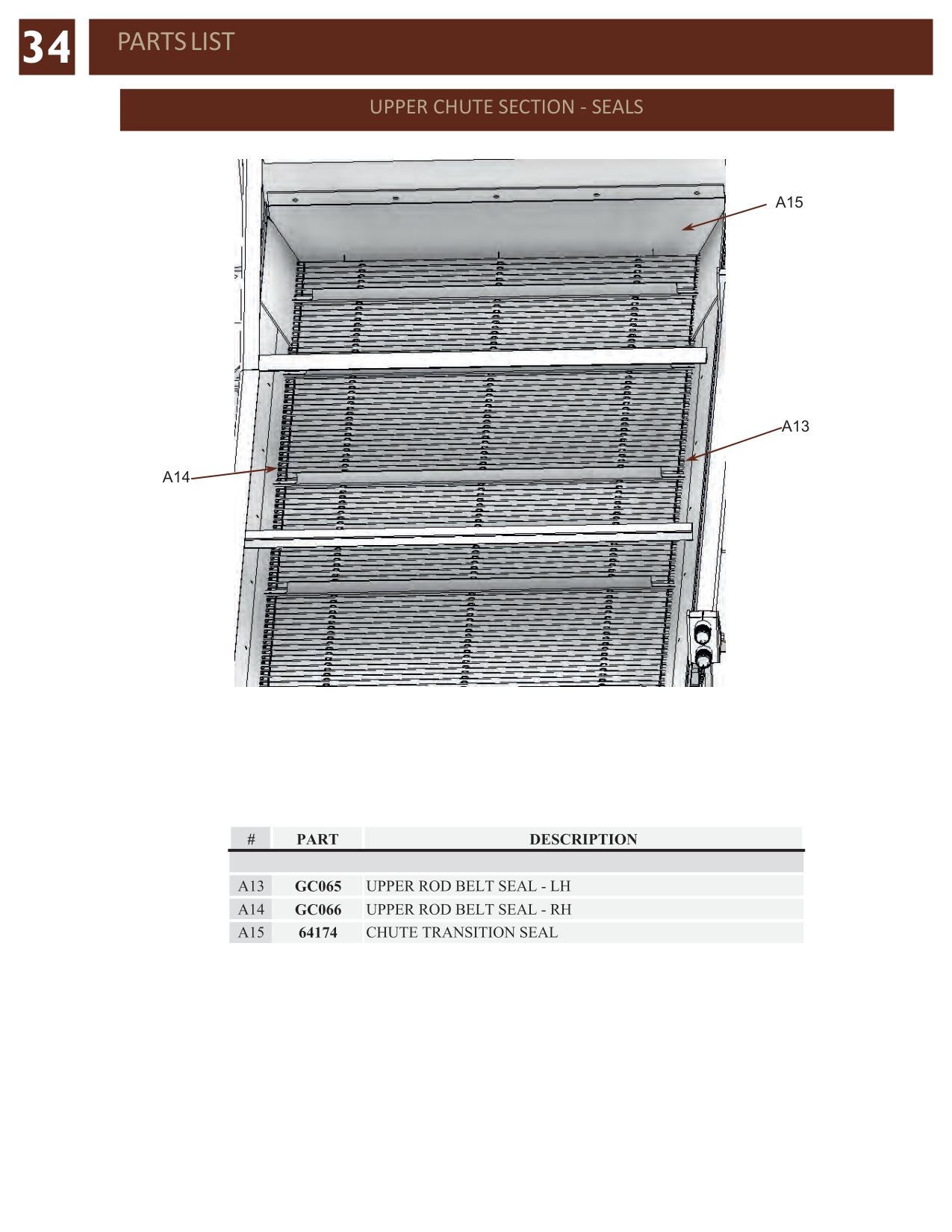

Upper Chute Section - Seals · Jackrabbit Jackrabbit PC 30-36 Pre-Cleaner (CAT 2.8L)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| A13 | GC065 | UPPER ROD BELT SEAL - LH | |
| A14 | GC066 | UPPER ROD BELT SEAL - RH | |
| A15 | 64174 | CHUTE TRANSITION SEAL | |
| A17 | 64176 | 36 PRECLEANER INCLINE BELT | |
| A18 | GC067 | ROD BELT RUBBER SEAL | |
| A19 | 33224 | PRECLEANER DRIVE PULLEY WITH DRIVE SHAFT | |
| A20 | 29801 | WALNUT SNUB ROLLER CASTERS | |
| A21 | 26614 | BRG TWO-BOLT FLANGED 1" BEARING | |
| A22 | 29479 | WALNUT SNUB ROLLER SHAFT | |
| A23 | 27306 | BRG RETURN ROLLER (BEARING) | |
| A24 | 27307 | BRG HOUSING RETURN ROLLER (END CAP) | |
| A25 | 28506-4 | 7/16X38 3/8 HEX ROD FOR RETURN | |
| A26 | 1164083 | 1/8" X 1" SLOTTED SPRING PIN | |
| A27 | 28188 | COMPRESSION SPRING RETURN ROLL | |
| A28 | 33284 | 30" RETURN ROLLER PIPE | |
| A29 | 28936 | 36" BELT WIPER |
