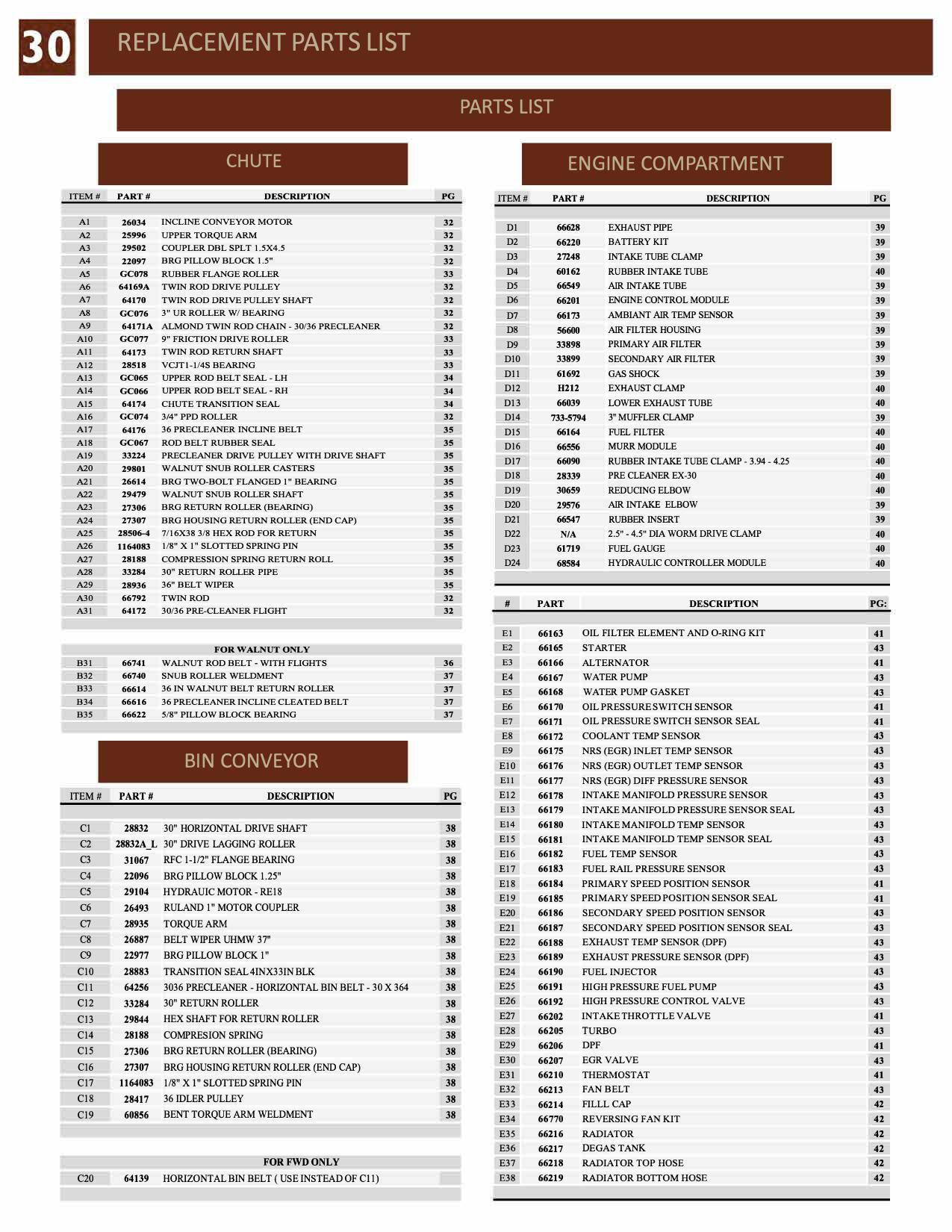

Replacement Parts List · Jackrabbit Jackrabbit PC 30-36 Pre-Cleaner (CAT 2.8L)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| A1 | 26034 | INCLINE CONVEYOR MOTOR | |
| A2 | 25996 | UPPER TORQUE ARM | |
| A3 | 29502 | COUPLER DBL SPLT 1.5X4.5 | |
| A4 | 22097 | BRG PILLOW BLOCK 1.5" | |
| A5 | GC078 | RUBBER FLANGE ROLLER | |
| A6 | 64169A | TWIN ROD DRIVE PULLEY | |
| A7 | 64170 | TWIN ROD DRIVE PULLEY SHAFT | |
| A8 | GC076 | 3" UR ROLLER W/ BEARING | |
| A9 | 64171A | ALMOND TWIN ROD CHAIN - 30/36 PRECLEANER | |
| A10 | GC077 | 9" FRICTION DRIVE ROLLER | |
| A11 | 64173 | TWIN ROD RETURN SHAFT | |
| A12 | 28518 | VCJT1-1/4S BEARING | |
| A13 | GC065 | UPPER ROD BELT SEAL - LH | |
| A14 | GC066 | UPPER ROD BELT SEAL - RH | |
| A15 | 64174 | CHUTE TRANSITION SEAL | |
| A16 | GC074 | 3/4" PPD ROLLER | |
| A17 | 64176 | 36 PRECLEANER INCLINE BELT | |
| A18 | GC067 | ROD BELT RUBBER SEAL | |
| A19 | 33224 | PRECLEANER DRIVE PULLEY WITH DRIVE SHAFT | |
| A20 | 29801 | WALNUT SNUB ROLLER CASTERS | |
| A21 | 26614 | BRG TWO-BOLT FLANGED 1" BEARING | |
| A22 | 29479 | WALNUT SNUB ROLLER SHAFT | |
| A23 | 27306 | BRG RETURN ROLLER (BEARING) | |
| A24 | 27307 | BRG HOUSING RETURN ROLLER (END CAP) | |
| A25 | 28506-4 | 7/16X38 3/8 HEX ROD FOR RETURN | |
| A26 | 1164083 | 1/8" X 1" SLOTTED SPRING PIN | |
| A27 | 28188 | COMPRESSION SPRING RETURN ROLL | |
| A28 | 33284 | 30" RETURN ROLLER PIPE | |
| A29 | 28936 | 36" BELT WIPER | |
| A30 | 66792 | TWIN ROD | |
| A31 | 64172 | 30/36 PRE-CLEANER FLIGHT | |
| B31 | 66741 | WALNUT ROD BELT - WITH FLIGHTS | |
| B32 | 66740 | SNUB ROLLER WELDMENT | |
| B33 | 66614 | 36 IN WALNUT BELT RETURN ROLLER | |
| B34 | 66616 | 36 PRECLEANER INCLINE CLEATED BELT | |
| B35 | 66622 | 5/8" PILLOW BLOCK BEARING | |
| C1 | 28832 | 30" HORIZONTAL DRIVE SHAFT | |
| C2 | 28832A_L | 30" DRIVE LAGGING ROLLER | |
| C3 | 31067 | RFC 1-1/2" FLANGE BEARING | |
| C4 | 22096 | BRG PILLOW BLOCK 1.25" | |
| C5 | 29104 | HYDRAUIC MOTOR - RE18 | |
| C6 | 26493 | RULAND 1" MOTOR COUPLER | |
| C7 | 28935 | TORQUE ARM | |
| C8 | 26887 | BELT WIPER UHMW 37" | |
| C9 | 22977 | BRG PILLOW BLOCK 1" | |
| C10 | 28883 | TRANSITION SEAL 4INX33IN BLK | |
| C11 | 64256 | 3036 PRECLEANER - HORIZONTAL BIN BELT - 30 X 364 | |
| C12 | 33284 | 30" RETURN ROLLER | |
| C13 | 29844 | HEX SHAFT FOR RETURN ROLLER | |
| C14 | 28188 | COMPRESION SPRING | |
| C15 | 27306 | BRG RETURN ROLLER (BEARING) | |
| C16 | 27307 | BRG HOUSING RETURN ROLLER (END CAP) | |
| C17 | 1164083 | 1/8" X 1" SLOTTED SPRING PIN | |
| C18 | 28417 | 36 IDLER PULLEY | |
| C19 | 60856 | BENT TORQUE ARM WELDMENT | |
| C20 | 64139 | HORIZONTAL BIN BELT ( USE INSTEAD OF C11) | |
| D1 | 66628 | EXHAUST PIPE | |
| D2 | 66220 | BATTERY KIT | |
| D3 | 27248 | INTAKE TUBE CLAMP | |
| D4 | 60162 | RUBBER INTAKE TUBE | |
| D5 | 66549 | AIR INTAKE TUBE | |
| D6 | 66201 | ENGINE CONTROL MODULE | |
| D7 | 66173 | AMBIANT AIR TEMP SENSOR | |
| D8 | 56600 | AIR FILTER HOUSING | |
| D9 | 33898 | PRIMARY AIR FILTER | |
| D10 | 33899 | SECONDARY AIR FILTER | |
| D11 | 61692 | GAS SHOCK | |
| D12 | H212 | EXHAUST CLAMP | |
| D13 | 66039 | LOWER EXHAUST TUBE | |
| D14 | 733-5794 | 3" MUFFLER CLAMP | |
| D15 | 66164 | FUEL FILTER | |
| D16 | 66556 | MURR MODULE | |
| D17 | 66090 | RUBBER INTAKE TUBE CLAMP - 3.94 - 4.25 | |
| D18 | 28339 | PRE CLEANER EX-30 | |
| D19 | 30659 | REDUCING ELBOW | |
| D20 | 29576 | AIR INTAKE ELBOW | |
| D21 | 66547 | RUBBER INSERT | |
| D22 | N/A | 2.5" - 4.5" DIA WORM DRIVE CLAMP | |
| D23 | 61719 | FUEL GAUGE | |
| D24 | 68584 | HYDRAULIC CONTROLLER MODULE | |
| E1 | 66163 | OIL FILTER ELEMENT AND O-RING KIT | |
| E2 | 66165 | STARTER | |
| E3 | 66166 | ALTERNATOR | |
| E4 | 66167 | WATER PUMP | |
| E5 | 66168 | WATER PUMP GASKET | |
| E6 | 66170 | OIL PRESSURE SWITCH SENSOR | |
| E7 | 66171 | OIL PRESSURE SWITCH SENSOR SEAL | |
| E8 | 66172 | COOLANT TEMP SENSOR | |
| E9 | 66175 | NRS (EGR) INLET TEMP SENSOR | |
| E10 | 66176 | NRS (EGR) OUTLET TEMP SENSOR | |
| E11 | 66177 | NRS (EGR) DIFF PRESSURE SENSOR | |
| E12 | 66178 | INTAKE MANIFOLD PRESSURE SENSOR | |
| E13 | 66179 | INTAKE MANIFOLD PRESSURE SENSOR SEAL | |
| E14 | 66180 | INTAKE MANIFOLD TEMP SENSOR | |
| E15 | 66181 | INTAKE MANIFOLD TEMP SENSOR SEAL | |
| E16 | 66182 | FUEL TEMP SENSOR | |
| E17 | 66183 | FUEL RAIL PRESSURE SENSOR | |
| E18 | 66184 | PRIMARY SPEED POSITION SENSOR | |
| E19 | 66185 | PRIMARY SPEED POSITION SENSOR SEAL | |
| E20 | 66186 | SECONDARY SPEED POSITION SENSOR | |
| E21 | 66187 | SECONDARY SPEED POSITION SENSOR SEAL | |
| E22 | 66188 | EXHAUST TEMP SENSOR (DPF) | |
| E23 | 66189 | EXHAUST PRESSURE SENSOR (DPF) | |
| E24 | 66190 | FUEL INJECTOR | |
| E25 | 66191 | HIGH PRESSURE FUEL PUMP | |
| E26 | 66192 | HIGH PRESSURE CONTROL VALVE | |
| E27 | 66202 | INTAKE THROTTLE VALVE | |
| E28 | 66205 | TURBO | |
| E29 | 66206 | DPF | |
| E30 | 66207 | EGR VALVE | |
| E31 | 66210 | THERMOSTAT | |
| E32 | 66213 | FAN BELT | |
| E33 | 66214 | FILLL CAP | |
| E34 | 66770 | REVERSING FAN KIT | |
| E35 | 66216 | RADIATOR | |
| E36 | 66217 | DEGAS TANK | |
| E37 | 66218 | RADIATOR TOP HOSE | |
| E38 | 66219 | RADIATOR BOTTOM HOSE | |
| F1 | 60808 | DESTICKER CHAIN | |
| F2 | 29358 | DESTICKER MOTOR | |
| F3 | 24395D | TORQUE ARM | |
| F4 | 26493 | COUPLER SPLIT 1" | |
| F5 | 22977 | BRG PILLOW BLOCK 1" | |
| F6 | 23524 | FLANGE BEARING | |
| F7 | 26202 | 11T 550 1" BORE SPROCKET WELD'T | |
| F8 | 28896 | DESTICKER DRIVE SHAFT | |
| F9 | 28897 | DESTICKER IDLER SHAFT | |
| F10 | 22983 | 8T550 IDLER SPROCKET | |
| F11 | 26201 | 6T550 ECCENTRIC SPROCKET | |
| F12 | 60786 | INCLINE LEFT CHAIN SLIDE | |
| F13 | 60768 | WOODCHUCK SLIDE TOP A | |
| F14 | 60769 | WOODCHUCK SLIDE TOP B | |
| F15 | 60790 | UPPER LEFT SLIDE CHAIN | |
| F16 | 60770 | WOODCHUCK SLIDE TOP C | |
| F17 | 28937 | WOODCHUCK LIFT CYLINDER | |
| F18 | 60767 | WOODCHUCK HORIZONTAL SLIDE BOTTOM | |
| F19 | 60766 | WOODCHUCK INCLINE SLIDE | |
| F13 | 60768 | WOODCHUCK SLIDE TOP A | |
| F14 | 60769 | WOODCHUCK SLIDE TOP B | |
| F16 | 60770 | WOODCHUCK SLIDE TOP C | |
| F18 | 60767 | WOODCHUCK HORIZONTAL SLIDE BOTTOM | |
| F19 | 60766 | WOODCHUCK INCLINE SLIDE | |
| G1 | 29462 | Z BELT - CROSS CONVEYOR | |
| G2 | 29453 | CROSS CONVEYOR SEAL | |
| G3 | 29452 | SEAL HOLD DOWN | |
| G4 | 29357 | CROSS CONVEYOR MOTOR | |
| G5 | 24395E | TORQUE ARM | |
| G6 | 26493 | COUPLER SPLIT 1" | |
| G7 | 22977 | BRG PILLOW BLOCK 1" | |
| G8 | 26464C | BEARING PUSHER | |
| G9 | 26464B | BEARING PULLER | |
| G10 | 29443 | CROSS CONVEYOR IDLER PULLEY | |
| G11 | 29444 | CROSS CONVEYOR DRIVE PULLEY | |
| H1 | 66075 | DISPLAY | |
| H2 | 22416 | KEY IGNITION SWITCH | |
| H3 | 66076 | CAN BUTTON PAD | |
| 24537 | JACKRABBIT (WHITE) | ||
| 24538 | JACKRABBIT (BROWN) | ||
| 24546 | DIESEL (WHITE) | ||
| 24548 | HYDRAULIC (WHITE) | ||
| 24548A | HYDRAULIC (BROWN) | ||
| 24986 | CONTROL PANEL | ||
| 27583 | WARNING (DECAL) | ||
| I1 | 64097 | FWD TRANSIT LINK | |
| I2 | 61749 | RIM | |
| I3 | 30549 | TIRE | |
| I4 | 61750 | TIRE AND RIM ASSEMBLY | |
| I5 | 29541 | TRANSIT LINK PIN | |
| 25750 | BEIGE TOUCH UP | ||
| 25750A | BROWN TOUCH UP | ||
| 27553 | PRIMER, MIXED | ||
| 27552-1 | PRIMER, 1 GAL. | ||
| 27552-2 | ACTIVATOR, 1 GAL. | ||
| 27552-A | BEIGE, MIXED, 1 GAL. | ||
| 27552-AA | BEIGE, NOT MIXED, 1 GAL. | ||
| 27552-B | BROWN, MIXED, 1 GAL. | ||
| 27552-BB | BROWN, NOT MIXED 3/4 GAL | ||
| 27552-C | HARDENER, 1 PT. | ||
| 27552D | ENHANCER, 1 PT. | ||
| J1 | 29573 | WINKIE HINGE | |
| J2 | 26098 | WINKIE CHUTE GUIDING TAB | |
| J3 | 27354 | WINKIE CYLINDER | |
| J4 | 28239 | HELAC ROTARY ACTUATOR | |
| J5 | 64097 | FWD TRANSIT LINK | |
| J6 | 26483A | WHEEL HUB | |
| J7 | 28328 | UHMW SLIDE FWD | |
| J8 | 26481A | FWD WHEEL TIRE | |
| J9 | 26482 | FWD WHEEL RIM | |
| J10 | 61725 | HYDRAULIC MOTOR | |
| J11 | 28354 | GAS CYLINDER |
