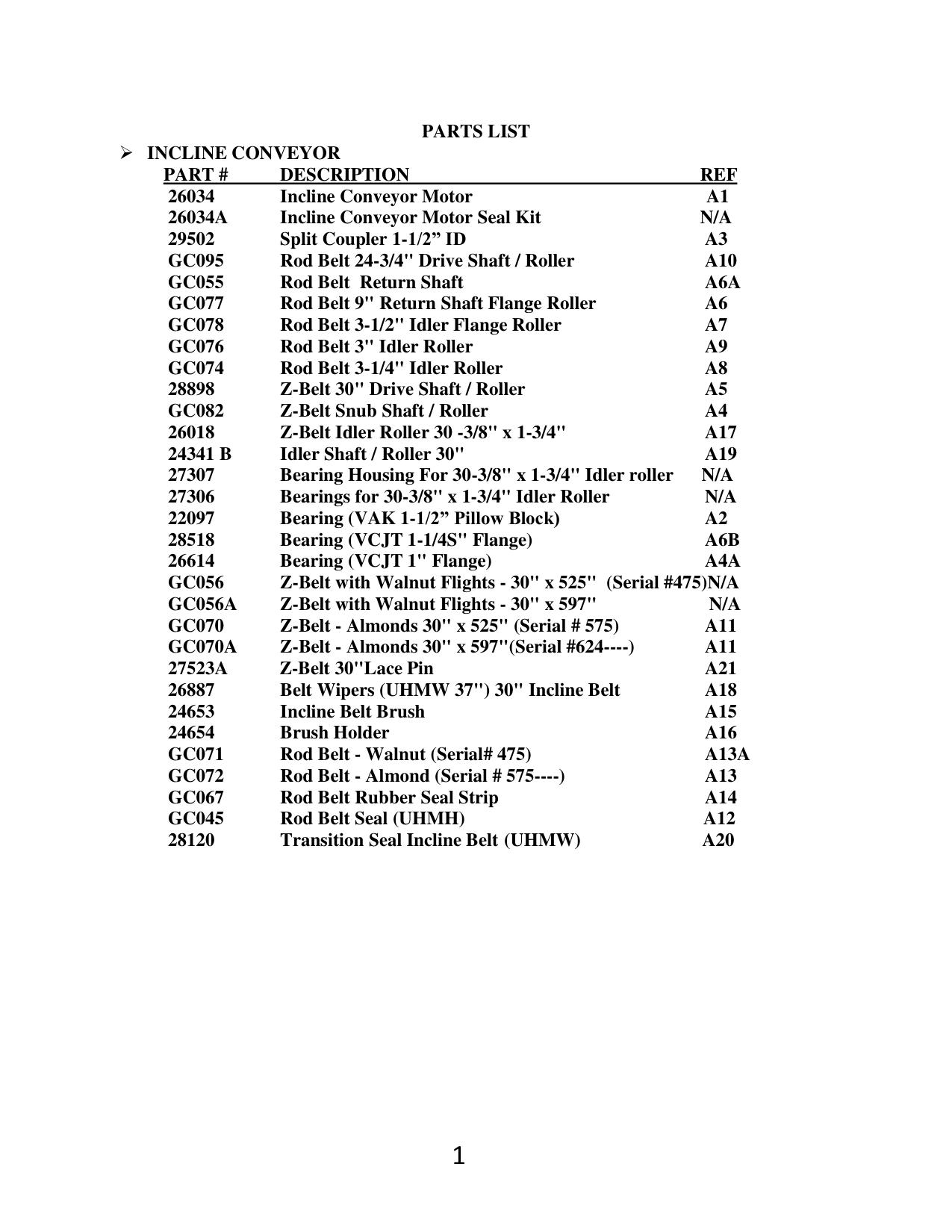

Parts List - Incline Conveyor · Jackrabbit Jackrabbit PC 20-30 Pre-Cleaner (Deutz)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| A1 | 26034 | Incline Conveyor Motor | |
| 26034A | Incline Conveyor Motor Seal Kit | ||
| A3 | 29502 | Split Coupler 1-1/2" ID | |
| A10 | GC095 | Rod Belt 24-3/4" Drive Shaft / Roller | |
| A6A | GC055 | Rod Belt Return Shaft | |
| A6 | GC077 | Rod Belt 9" Return Shaft Flange Roller | |
| A7 | GC078 | Rod Belt 3-1/2" Idler Flange Roller | |
| A9 | GC076 | Rod Belt 3" Idler Roller | |
| A8 | GC074 | Rod Belt 3-1/4" Idler Roller | |
| A5 | 28898 | Z-Belt 30" Drive Shaft / Roller | |
| A4 | GC082 | Z-Belt Snub Shaft / Roller | |
| A17 | 26018 | Z-Belt Idler Roller 30-3/8" x 1-3/4" | |
| A19 | 24341 B | Idler Shaft / Roller 30" | |
| 27307 | Bearing Housing For 30-3/8" x 1-3/4" Idler roller | ||
| 27306 | Bearings for 30-3/8" x 1-3/4" Idler Roller | ||
| A2 | 22097 | Bearing (VAK 1-1/2" Pillow Block) | |
| A6B | 28518 | Bearing (VCJT 1-1/4S" Flange) | |
| A4A | 26614 | Bearing (VCJT 1" Flange) | |
| GC056 | Z-Belt with Walnut Flights - 30" x 525" (Serial #475) | ||
| GC056A | Z-Belt with Walnut Flights - 30" x 597" | ||
| A11 | GC070 | Z-Belt - Almonds 30" x 525" (Serial # 575) | |
| A11 | GC070A | Z-Belt - Almonds 30" x 597" (Serial #624----) | |
| A21 | 27523A | Z-Belt 30" Lace Pin | |
| A18 | 26887 | Belt Wipers (UHMW 37") 30" Incline Belt | |
| A15 | 24653 | Incline Belt Brush | |
| A16 | 24654 | Brush Holder | |
| A13A | GC071 | Rod Belt - Walnut (Serial# 475) | |
| A13 | GC072 | Rod Belt - Almond (Serial # 575----) | |
| A14 | GC067 | Rod Belt Rubber Seal Strip | |
| A12 | GC045 | Rod Belt Seal (UHMH) | |
| A20 | 28120 | Transition Seal Incline Belt (UHMW) |
