← Jackrabbit PC 20-30 Pre-Cleaner (Deutz)

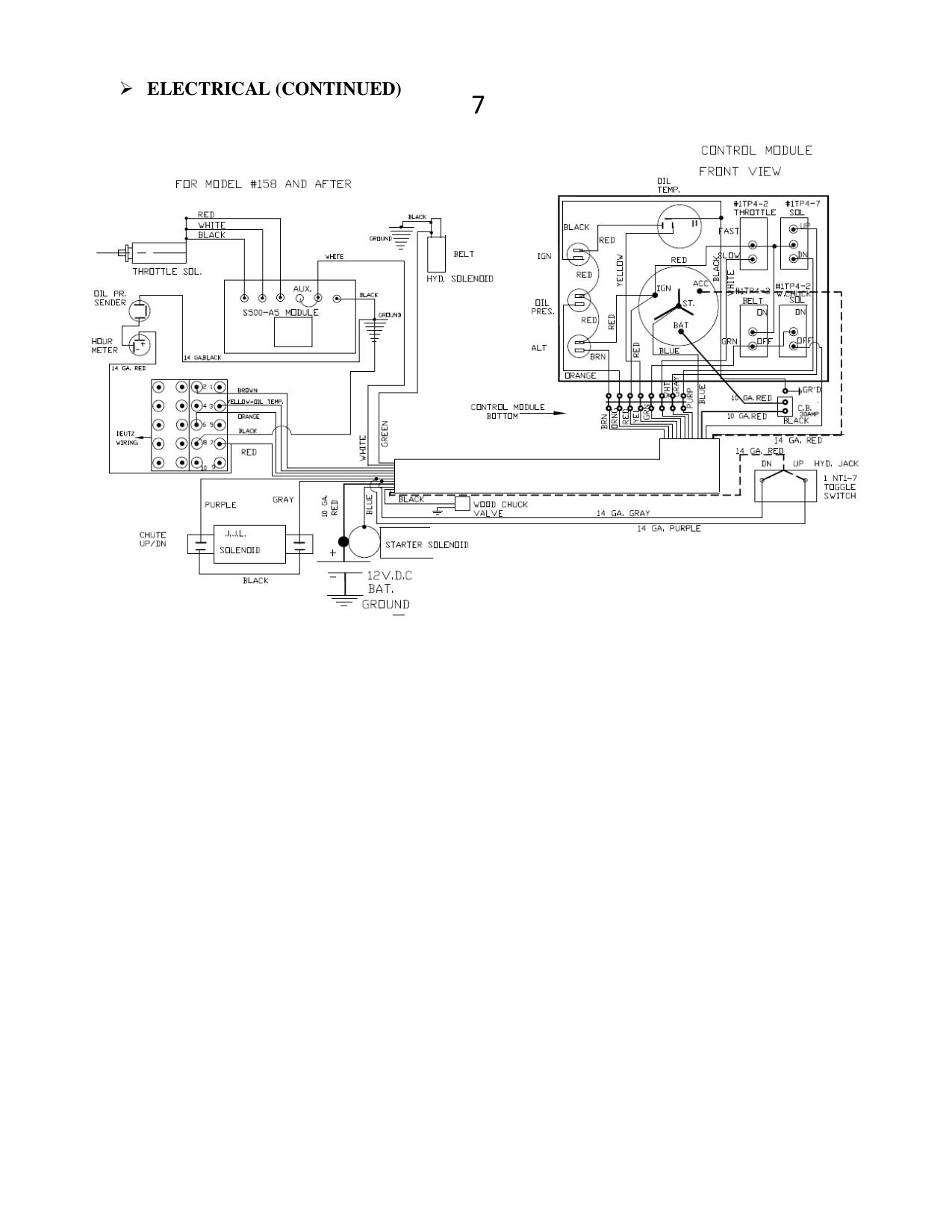

Electrical (Continued) - Diagrama De Cableado (For Model #158 And After / Contro · Jackrabbit Jackrabbit PC 20-30 Pre-Cleaner (Deutz)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| E1 | 29503 | Seal kit of 29358 and 29357 | |
| E2 | 22190 | Elevator Bolt | |
| E3 | 25386 | Wear Slide 7" | |
| E4 | 26129 | Wear Slide 25.5" | |
| E5 | 26120 | Desticker Chain Assy. | |
| E6 | 26780 | Desticker Link without Flags | |
| E7 | 27141 | Desticker Master Link CA557 | |
| E8 | 24395 | Torque Arm 4.5" Pin | |
| E9 | 24395D | Torque Arm 7.25" Pin | |
| E10 | 26493 | Split Coupler 1" | |
| E11 | 24395 | Torque Arm 9" Pin | |
| E12 | 26046 | Desticker Flag | |
| E13 | 26780A | Desticker link w/ 3 Flags | |
| E14 | 24491 | Wear Slide 46" | |
| E15 | 26780B | Desticker link w/ 4 Flags | |
| 26143 | Drive Shaft 1" x 30.75" | ||
| 26144 | Idler Shaft 1" x 30.25" |
