Elevator Hydraulics (Continued) · Jackrabbit Jackrabbit PC 20-30 Pre-Cleaner (CAT 3.4L)
Tap a circled number on the diagram to identify the part.
✕

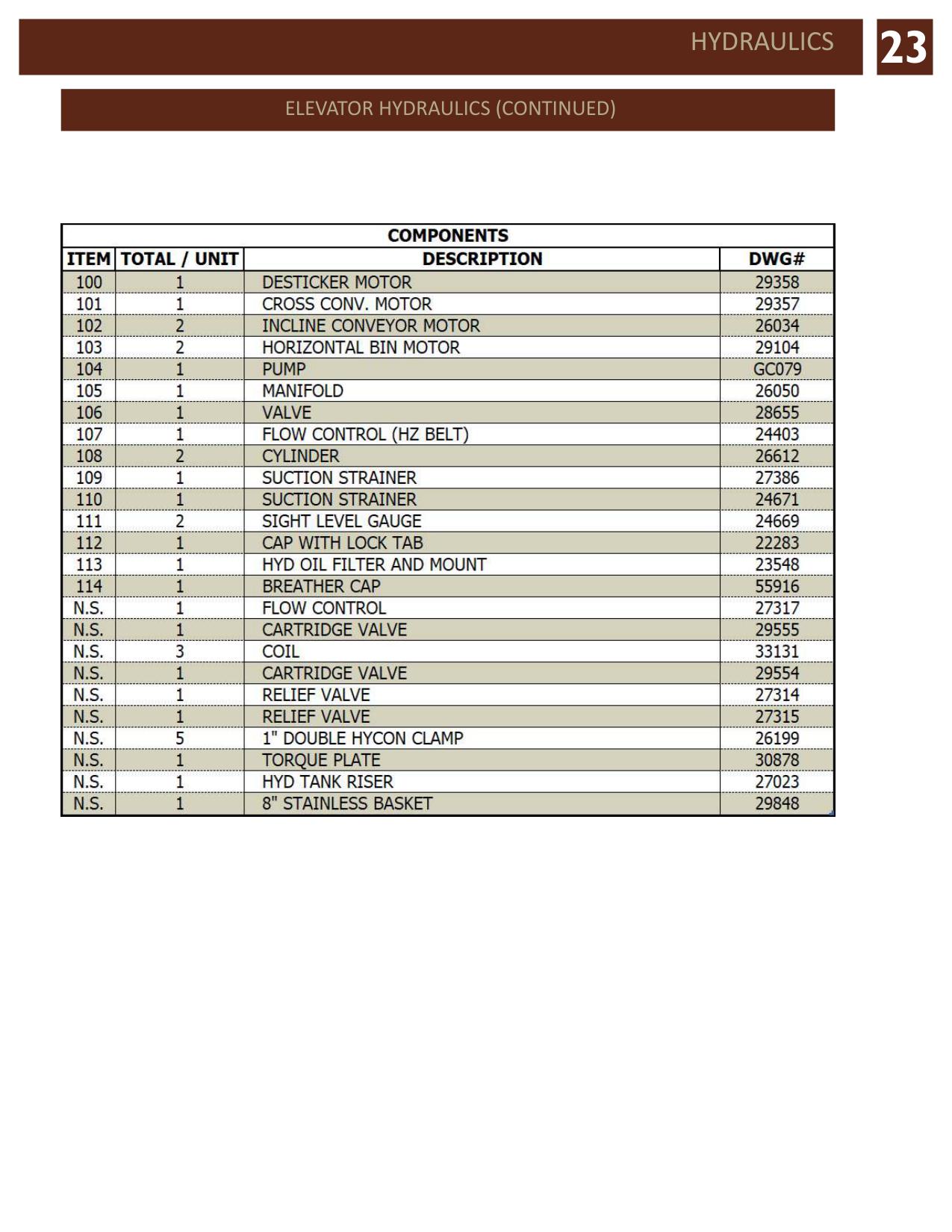

| # | Part number | Description | Qty |
|---|---|---|---|
| N.S. | 27317 | FLOW CONTROL | 1 |
| N.S. | 29555 | CARTRIDGE VALVE | 1 |
| N.S. | 33131 | COIL | 3 |
| N.S. | 29554 | CARTRIDGE VALVE | 1 |
| N.S. | 27314 | RELIEF VALVE | 1 |
| N.S. | 27315 | RELIEF VALVE | 1 |
| N.S. | 26199 | 1" DOUBLE HYCON CLAMP | 5 |
| N.S. | 30878 | TORQUE PLATE | 1 |
| N.S. | 27023 | HYD TANK RISER | 1 |
| N.S. | 29848 | 8" STAINLESS BASKET | 1 |
| 100 | 29358 | DESTICKER MOTOR | 1 |
| 101 | 29357 | CROSS CONV. MOTOR | 1 |
| 102 | 26034 | INCLINE CONVEYOR MOTOR | 2 |
| 103 | 29104 | HORIZONTAL BIN MOTOR | 2 |
| 104 | GC079 | PUMP | 1 |
| 105 | 26050 | MANIFOLD | 1 |
| 106 | 28655 | VALVE | 1 |
| 107 | 24403 | FLOW CONTROL (HZ BELT) | 1 |
| 108 | 26612 | CYLINDER | 2 |
| 109 | 27386 | SUCTION STRAINER | 1 |
| 110 | 24671 | SUCTION STRAINER | 1 |
| 111 | 24669 | SIGHT LEVEL GAUGE | 2 |
| 112 | 22283 | CAP WITH LOCK TAB | 1 |
| 113 | 23548 | HYD OIL FILTER AND MOUNT | 1 |
| 114 | 55916 | BREATHER CAP | 1 |
