Horizontal Bin Conveyor - Fwd · Jackrabbit Jackrabbit PC 20-30 Pre-Cleaner (CAT 3.4L)

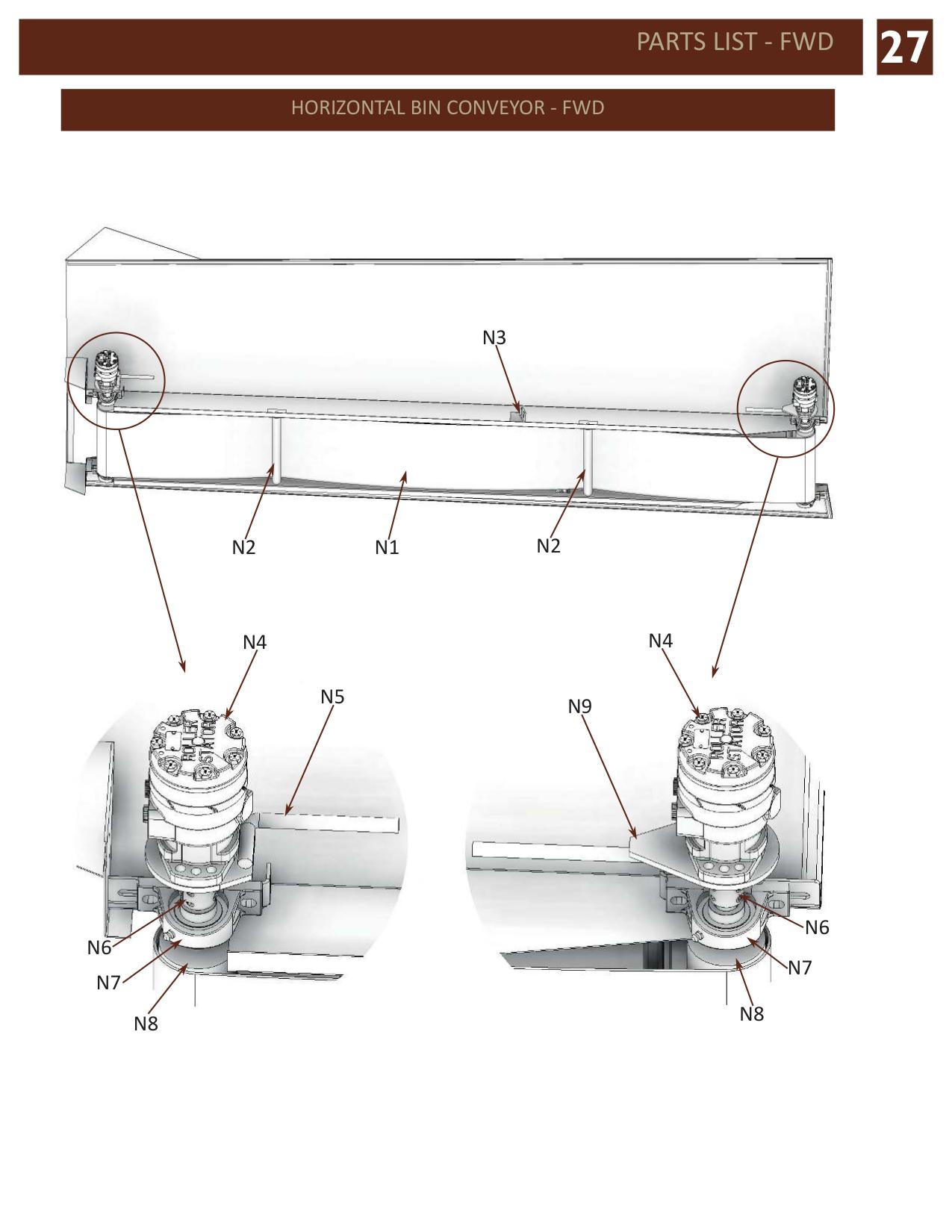

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| N1 | 27115 | Z BELT - FWD HORIZONTAL BIN CONVEYOR | |
| N2 | 25070 | 20" RETURN ROLLER | |
| N3 | 24556 | BELT WIPER | |
| N4 | 29104 | HORIZONTAL BIN MOTOR | |
| N5 | 60856 | BENT TORQUE ARM | |
| N6 | 26493 | COUPLER SPLIT 1" | |
| N7 | 22977 | BRG PILLOW BLOCK 1" | |
| N8 | 24340A | 20" DRIVE PULLEY | |
| N9 | 28935 | TORQUE ARM | |
| 8 | 27817 | PD341 ORB | 2 |
