← Jackrabbit PC 20-30 Pre-Cleaner (CAT 3.4L)
Woodchuck Cross Conveyor · Jackrabbit Jackrabbit PC 20-30 Pre-Cleaner (CAT 3.4L)

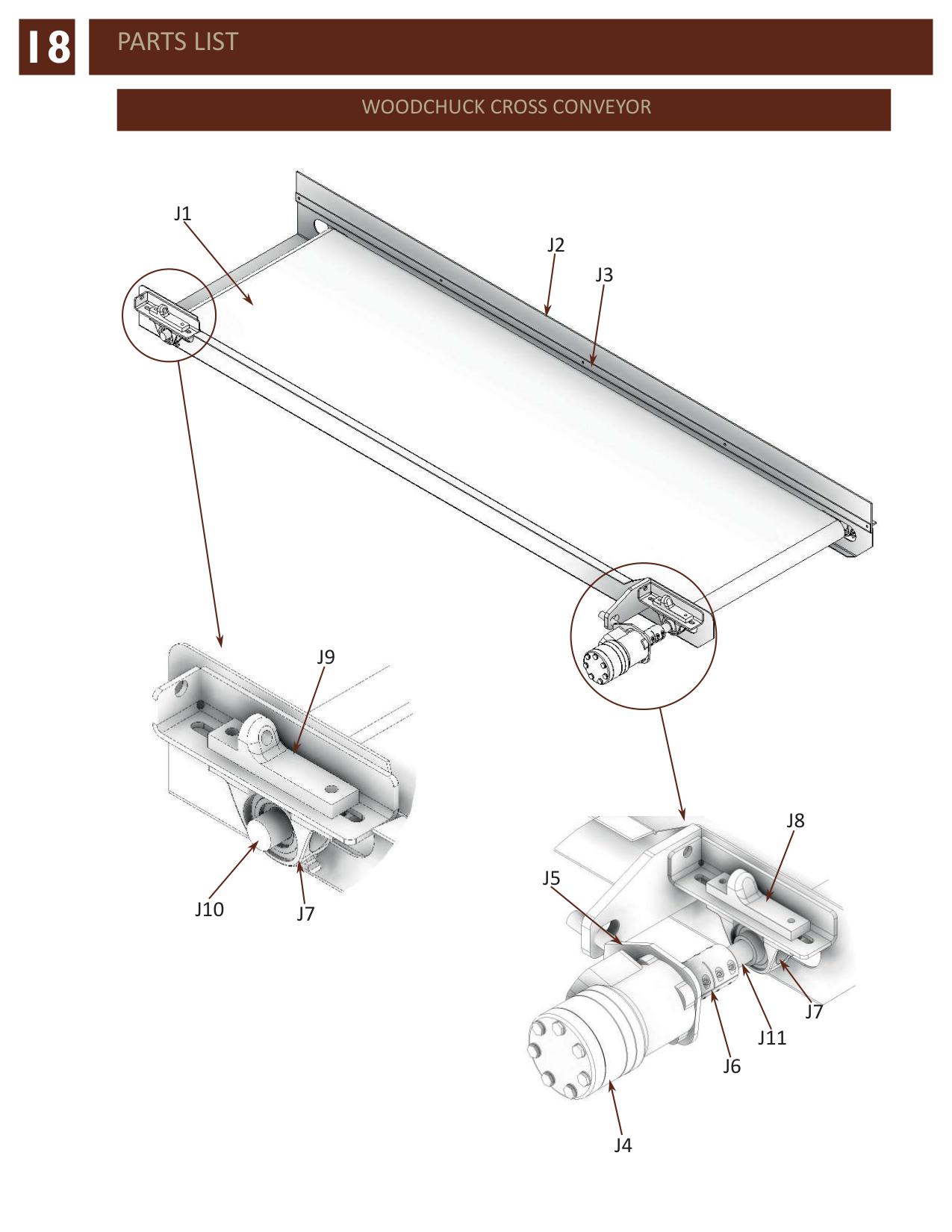

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| J1 | 29462 | Z BELT - CROSS CONVEYOR | |
| J2 | 29453 | CROSS CONVEYOR SEAL | |
| J3 | 29452 | SEAL HOLD DOWN | |
| J4 | 29357 | CROSS CONVEYOR MOTOR | |
| J5 | 24395E | TORQUE ARM | |
| J6 | 26493 | COUPLER SPLIT 1" | |
| J7 | 22977 | BRG PILLOW BLOCK 1" | |
| J8 | 26464D | BEARING PUSHER | |
| J9 | 26464B | BEARING PULLER | |
| J10 | 29443 | CROSS CONVEYOR IDLER PULLEY | |
| J11 | 29444 | CROSS CONVEYOR DRIVE PULLEY |
