← Jackrabbit PC 20-30 Pre-Cleaner (CAT 3.4L)
Woodchuck · Jackrabbit Jackrabbit PC 20-30 Pre-Cleaner (CAT 3.4L)

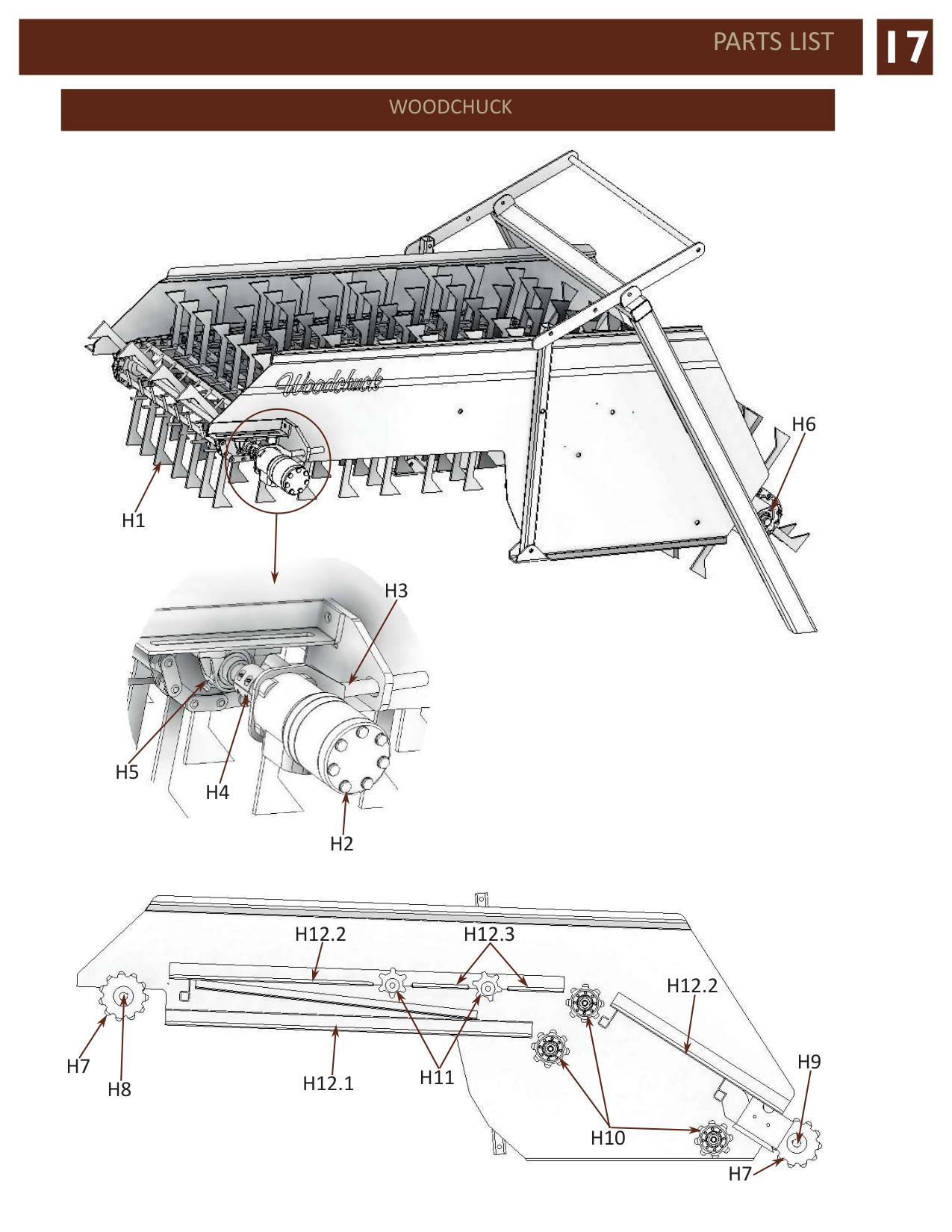

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| H1 | 26120B | DESTICKER CHAIN | |
| H2 | 29358 | DESTICKER MOTOR | |
| H3 | 24395D | TORQUE ARM | |
| H4 | 26493 | COUPLER SPLIT 1" | |
| H5 | 22977 | BRG PILLOW BLOCK 1" | |
| H6 | 23524 | FLANGE BEARING | |
| H7 | 26202 | 11T 1" BORE SPROCKET WELD'T | |
| H8 | 26143 | DESTICKER DRIVE SHAFT | |
| H9 | 26144 | DESTICKER IDLER SHAFT | |
| H10 | 22983 | 8T550 IDLER SPROCKET | |
| H11 | 26201 | 6T550 ECCENTRIC SPROCKET | |
| H12 | 27373 | WOODCHUCK SLIDE KIT | |
| H12.1 | 24491 | LOWER SLIDE | |
| H12.2 | 25386 | UPPER SLIDE - SHORT | |
| H12.3 | 26129 | UPPER SLIDE - LONG |
