← Jackrabbit PC 20-30 Pre-Cleaner (CAT 3.4L)

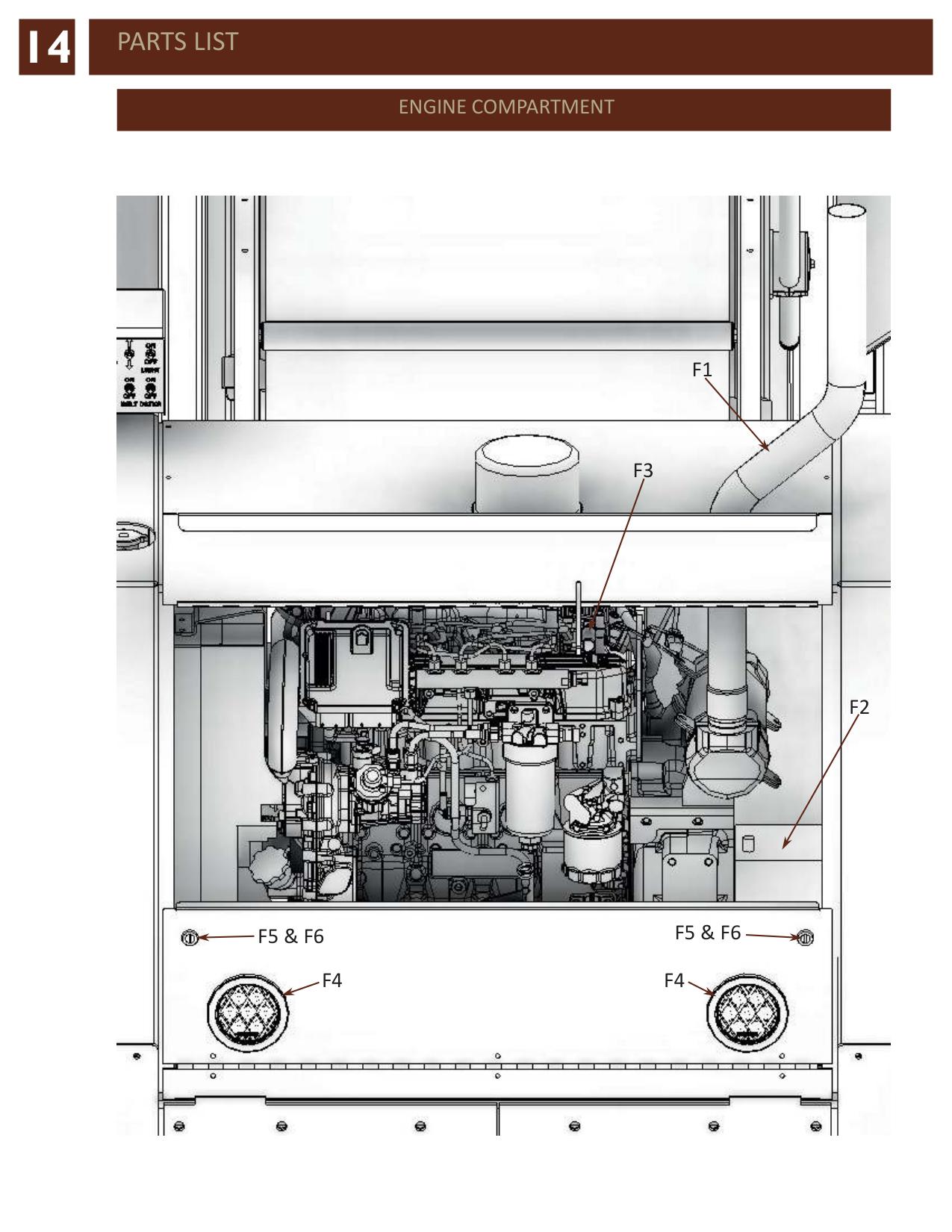

Engine Compartment · Jackrabbit Jackrabbit PC 20-30 Pre-Cleaner (CAT 3.4L)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| F1 | 60255 | EXHAUST PIPE | |
| F2 | 31123 | BATTERY KIT | |
| F3 | 27258A | GAS SHOCK | |
| F4 | 30596 | RED ROUND LED | |
| F5 | 27731 | 1/4 TURN LATCH | |
| F6 | 27732 | 1/4 TURN LATCH CAM | |
| F7 | 28339 | PRE CLEANER | |
| F8 | 29576 | INTAKE ELBOW | |
| F9 | 60257 | INTAKE TUBE LARGE | |
| F10 | 60258 | INTAKE TUBE SMALL | |
| F11 | 56600 | AIR FILTER HOUSING | |
| F12 | 33898 | PRIMARY AIR FILTER | |
| F13 | 33899 | SECONDARY AIR FILTER | |
| F14 | 60256 | INTAKE TO ENGINE | |
| F15 | 60162 | RUBBER INTAKE TUBE |
