← Jackrabbit PC 20-30 Pre-Cleaner (CAT 3.4L)

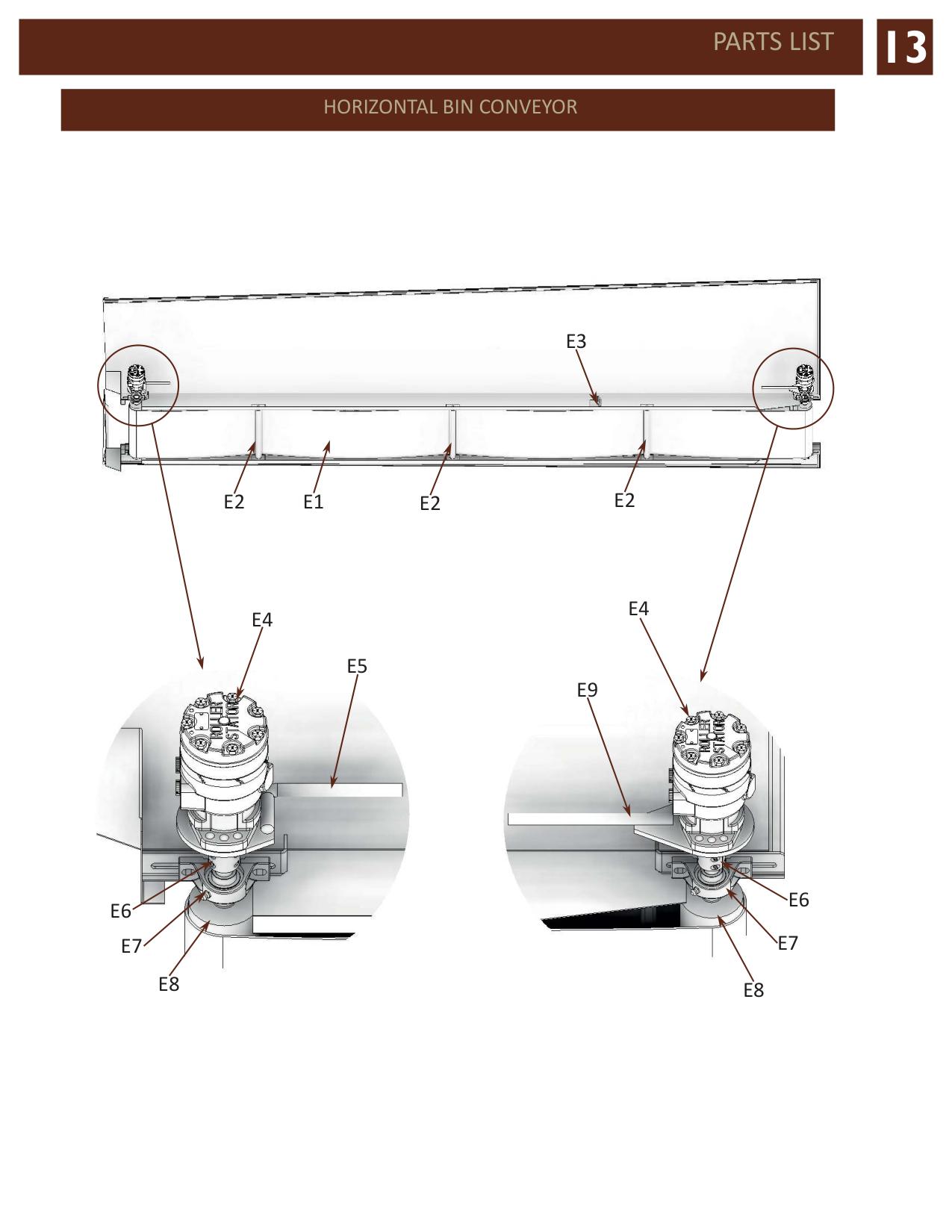

Horizontal Bin Conveyor · Jackrabbit Jackrabbit PC 20-30 Pre-Cleaner (CAT 3.4L)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| E1 | GC057 | Z BELT - HORIZONTAL BIN CONVEYOR | |
| E2 | 25070 | 20" RETURN ROLLER | |
| E3 | 24556 | BELT WIPER | |
| E4 | 29104 | HORIZONTAL BIN MOTOR | |
| E5 | 60856 | BENT TORQUE ARM | |
| E6 | 26493 | COUPLER SPLIT 1" | |
| E7 | 22977 | BRG PILLOW BLOCK 1" | |
| E8 | 24340A | 20" DRIVE PULLEY | |
| E9 | 28935 | TORQUE ARM |
