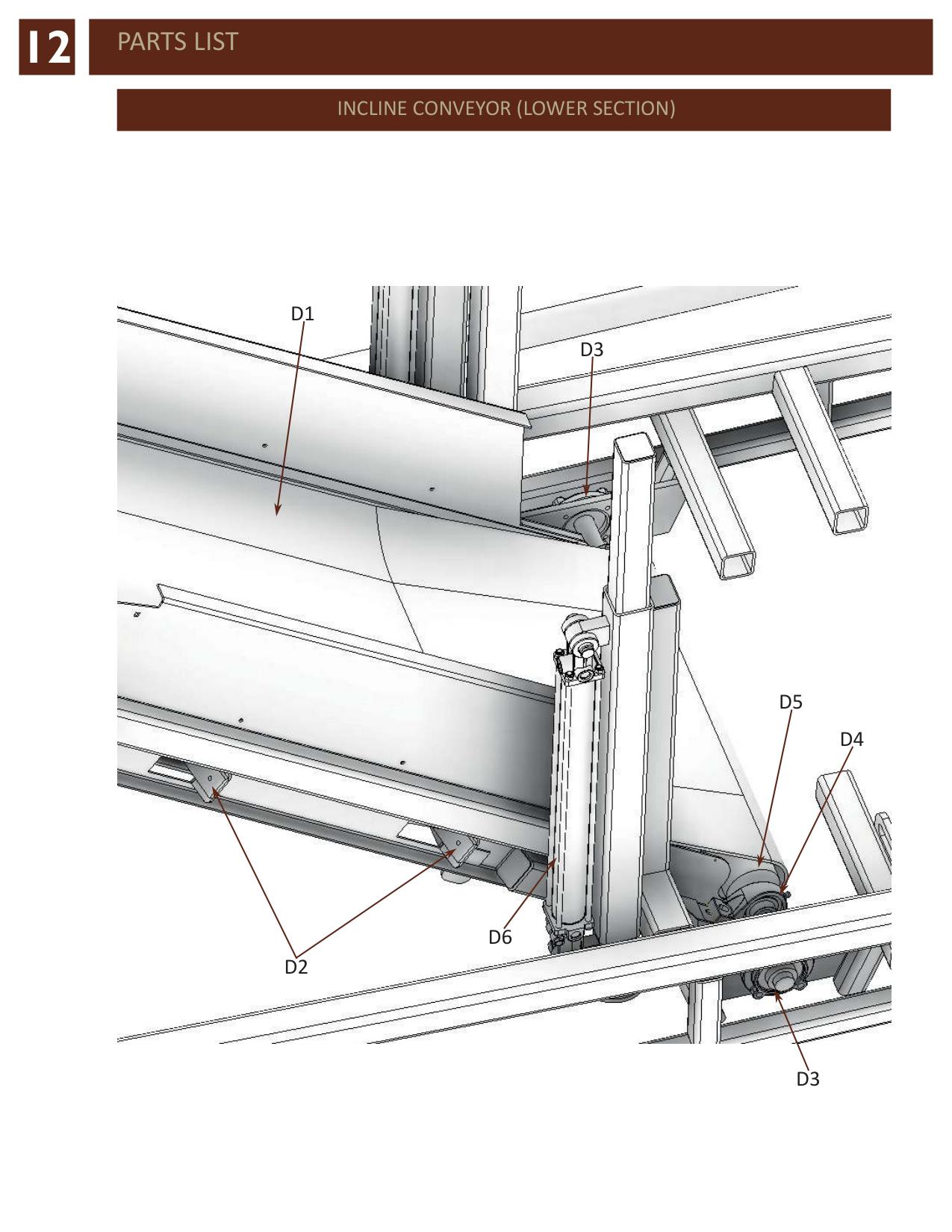

Incline Conveyor (Lower Section) · Jackrabbit Jackrabbit PC 20-30 Pre-Cleaner (CAT 3.4L)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| D1 | GC070A | Z BELT - INCLINE CONVEYOR | |
| D2 | 26887 | BELT WIPER | |
| D3 | 31067 | FLANGE BEARING 1-1/2" | |
| D4 | 22096 | BRG PILLOW BLOCK 1-1/4" | |
| D5 | 24341B | Z BELT IDLER ROLLER | |
| D6 | 26612 | HYDRAULIC JACK CYLINDER |
