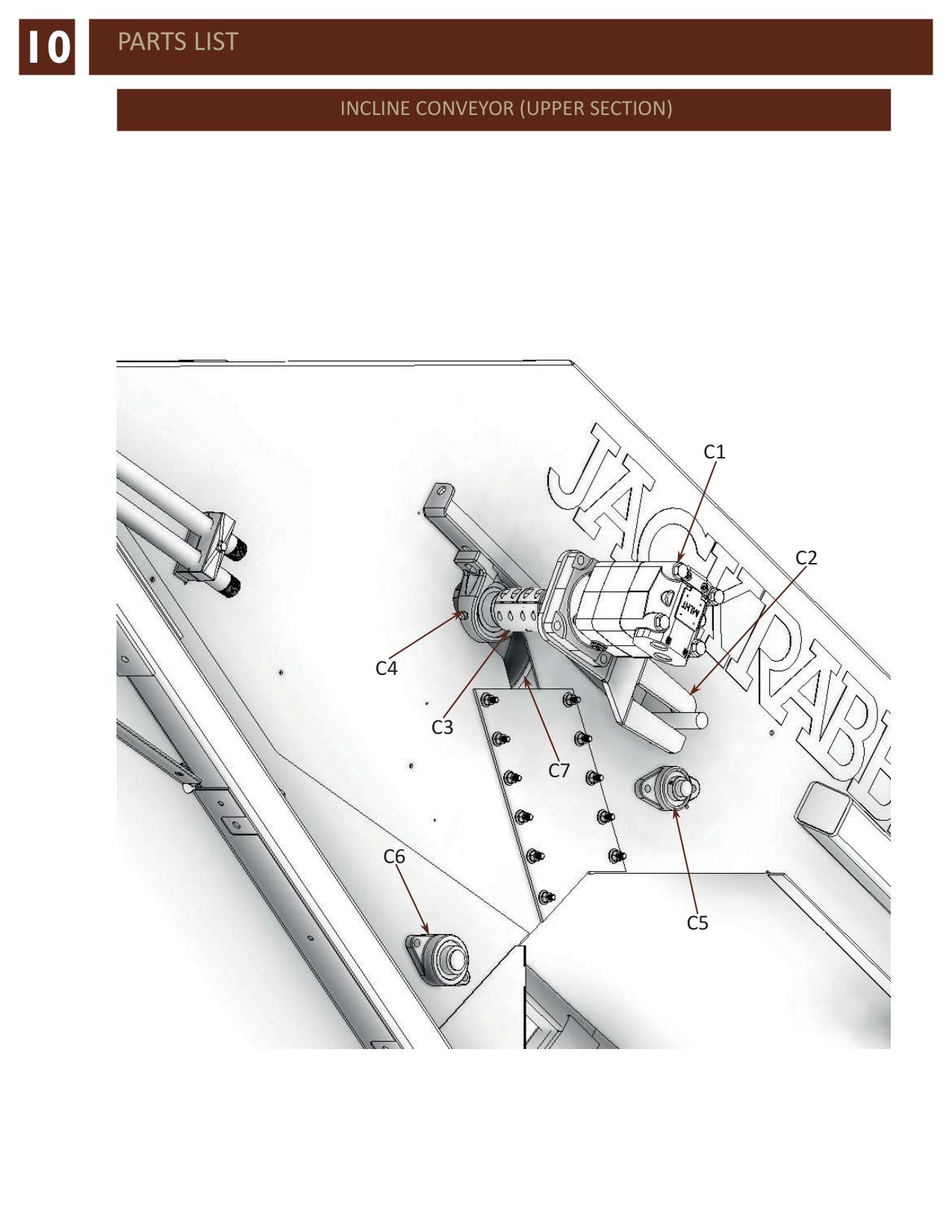

Incline Conveyor (Upper Section) · Jackrabbit Jackrabbit PC 20-30 Pre-Cleaner (CAT 3.4L)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| C1 | 26034 | INCLINE CONVEYOR MOTOR | |
| C2 | 25996 | TORQUE ARM | |
| C3 | 29502 | COUPLER SPLIT 1-1/2" | |
| C4 | 22097 | BRG PILLOW BLOCK 1.5" | |
| C5 | 26614 | FLANGE BEARING 1" | |
| C6 | 28518 | FLANGE BEARING 1-1/4" | |
| C7 | 28898 | 30" DRIVE PULLEY | |
| C8 | GC077 | ROD BELT FLANGE ROLLER | |
| C9 | GC055 | ROD BELT ROLLER SHAFT | |
| C10 | 26104A | Z BELT SNUB ROLLER | |
| C11 | 26018 | 30" RETURN ROLLER |
