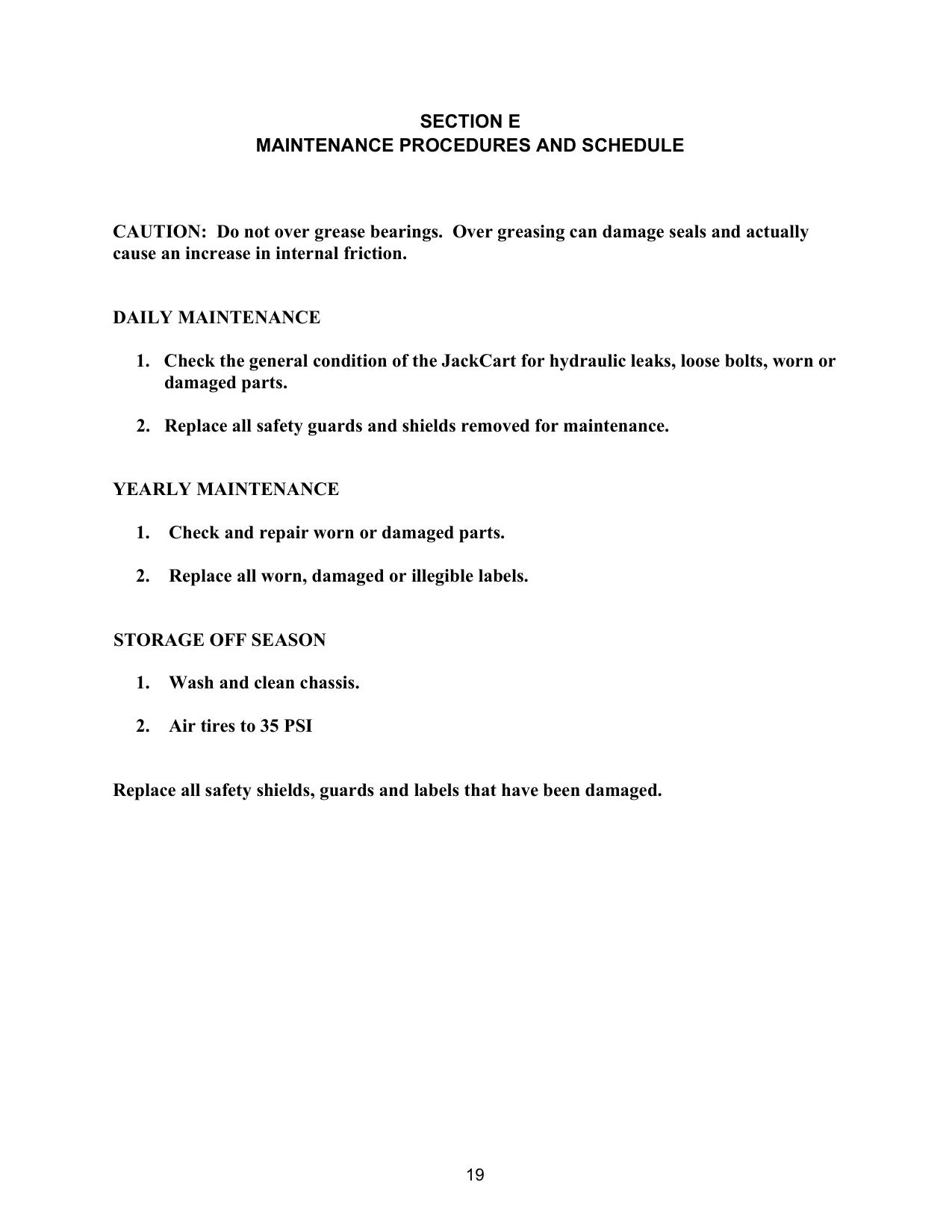

Section E · Jackrabbit Jackrabbit JC335 Jack Cart
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | 22679 | Spindle package | 2 |
| 2 | 27394 | Bearing Seal | 2 |
| 3 | 22681 | Hub package #608 2000-8 | 2 |
| 4 | 27393 | Hub Cap | 2 |
| 5 | 24103 | Wheel #W-65360 | 2 |
| 6 | 24102 | Implement Tires 12.5L 16 | 2 |
| 7 | 27572 | Tire, Rim Assembly | 2 |
| 8 | 27365 | Lug Nuts | 8 |
| 9 | 24122 | Pivot Pin | 4 |
| 10 | 24641 | Lower Pin for Hydraulic Cylinder | 1 |
| 11 | 27265 | Flap Hold Down | 1 |
| 12 | 27266 | Flap 4 X 8 – PVC 250 CBS | 1 |
| 13 | 25890 | Hitch Plate | 1 |
| 14 | 24101 | Hitch Angle | 1 |
| 15 | 24538 | Jacket Brown Decal | 1 |
| 16 | 25750 | Touch Up Paint – Beige | 1 |
| 17 | 25711 | Double Action Cylinder | 1 |
| 18 | 25810 | Seal Kit for Cylinder | 1 |
