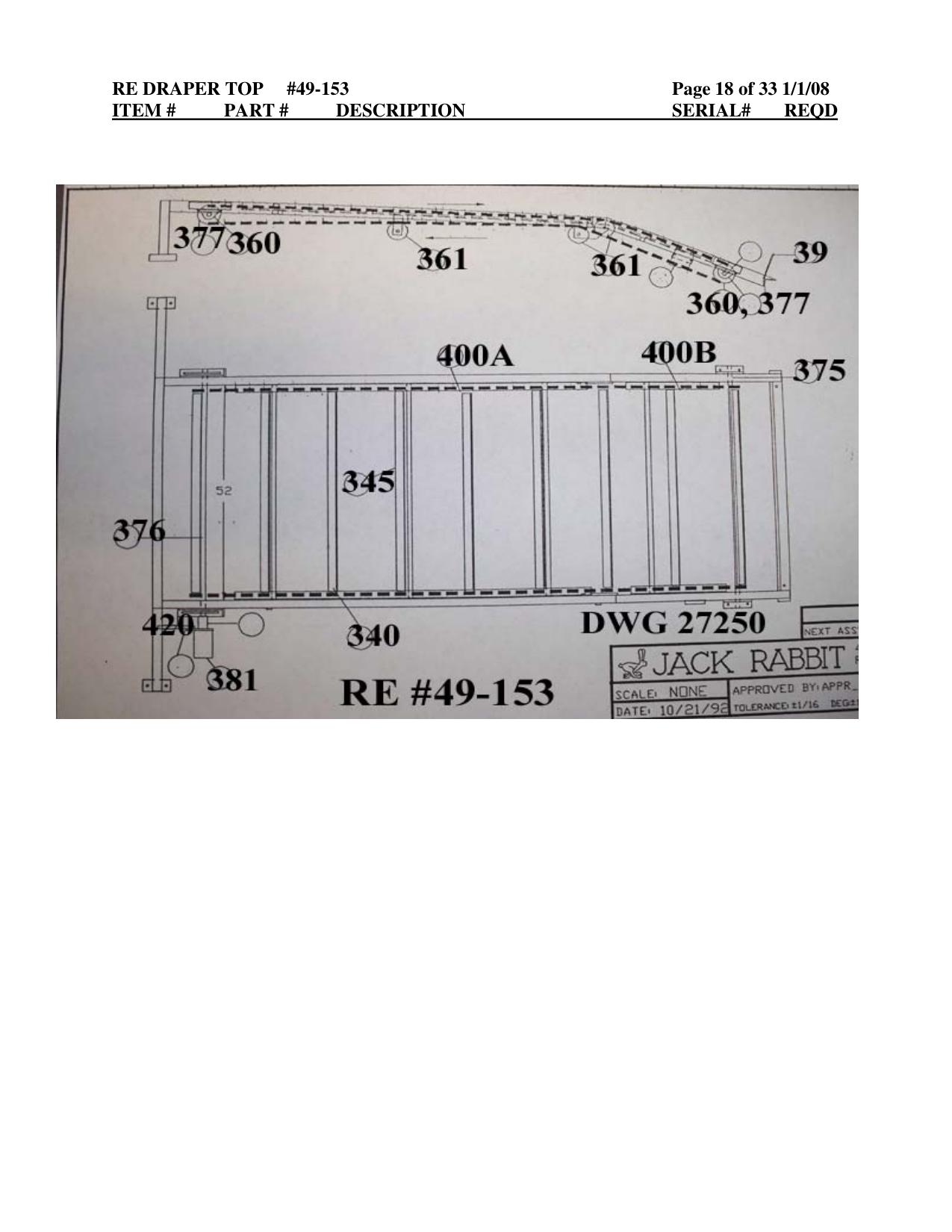

Figure 3 · Jackrabbit Jackrabbit HP-335 Harvester
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 39 | 27049 | Bumper (12” x 140” with Notch | 1 |
| 500 | 27098/99 Chain Seal (RH & LF) | 1 | |
| 502 | 27191 | Slide, Incline Chain (27” Length) | 2 |
| 503 | 25747 | Slide, Rear Chain (78” Length) | 2 |
| 504 | 26446 | Slide, Floor | 1 |
| 505 | 26469 | Chain Guard | 1 |
| 510 | 26426 | Conveyor Belt Crescent Top | 1 |
| 511 | 27378 | Conveyor Belt Giant Z 115” | 1 |
| 520 | 26450 | Chain Assembly Complete 314” | 1 |
| 521 | 26245 | Spreader Bar (Weldment) | 1 |
| 522 | 27142 | Master Link (CA557) With A4 Attachment) | 1 |
| 523 | 27141 | Master Link (CA557) No Attachment | 1 |
| 523A | 27141A | Offset Link (CA 557) #E4008. | 1 |
| 524 | 27693 | #60 Diamond Chain 25” 302--- | 1 |
| 525 | 27594 | #60 Diamond Chain Master Link 302--- | 1 |
| 526 | 26456 | #50 Chain (27 ½”) 200-301 | 1 |
| 530 | 26585 | 11T 550 (1 ¼” Bore) | 4 |
| 531 | 22983 | 8T 550 Idler (5/8” Bore) | 8 |
| 531A | 26201A | 6T 550 Concentric sprocket 5/8” Bore | 4 |
| 533 | 27563 | 14T 60 Taper Lock Sprocket 1210 1 ¼” Bore, 302--- | 1 |
| 534 | 27565 | Taper Lock Bushing 1210 1 ¼” Bore 302--- | 1 |
| 535 | 27564 | Taper Lock Bushing 1210 1” Bore 302--- | 1 |
| 536 | 26453 | 17T 550 Sprocket 1 ¼” Bore 200-301 | 2 |
| 537 | 26455 | Taper Lock Bushing (1610-1” Bore) 200-301 | 1 |
| 538 | 27062 | Taper Lock Bushing (1610-1 ¼” Bore) 200-301 | 1 |
| 550 | 25744 | Front Idler 1 ¼” Dia. | 1 |
| 551 | 26467 | Drive Shaft 1 ¼” Dia. | 1 |
| 560 | 22096 | Pillow Block (VAK 1 ¼”) | 4 |
| 562 | 26464 | Bearing Pad | 2 |
| 563 | 22977 | Pillow Block, Cross Conveyor (VAK 1”) | 4 |
| 565 | 26158 | Drive pulley 2”x12” | 1 |
| 566 | 26157 | Idler Pulley 2”x 12” | 1 |
| 567 | 26493 | Climax Coupler 1” | 1 |
| 568 | 24395A | Torque Arm | 1 |
| 570 | 24664 | Motor (RS180201) Desticker | 1 |
| 580 | 25132 | Flow Control, Cross Conveyor or DWG 27050E | 1 |
| 590 | 27017 | Motor (RS100201) Cross Conveyor 200--- | 1 |
| 591 | 26945 | Hydaulic Cylinder 2”x 4” 200--- | 1 |
| 592 | Seal Kit for 2” x 4” Cylinder 200--- | 1 |
