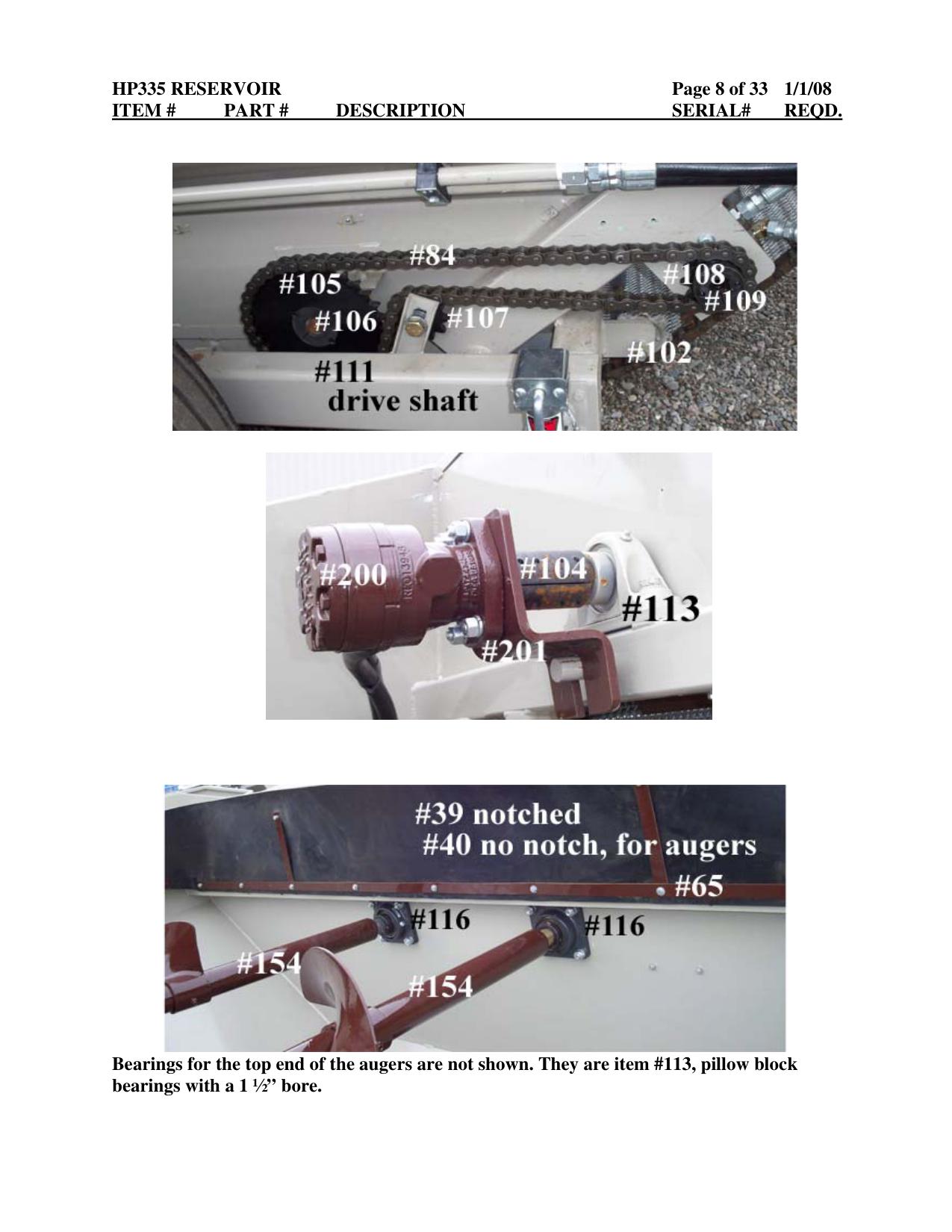

Figure 2 · Jackrabbit Jackrabbit HP-335 Harvester
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| HP335 | With Draper Top or Desticker | ||
| HP335 | With Augers | ||
| 39 | 25342 | Front Bumper 49-153 | 1 |
| 140 | 25271 | Auger Assemble Right | 1 |
| 140C | 25271C | Auger Assemble Right, For Chips | 1 |
| 141 | 25272 | Auger Assemble Left | 1 |
| 141C | 25272C | Auger Assemble Left, For Chips | 1 |
| 150 | 22611 | Auger Flight Left 9” x 18” | 2 |
| 151 | 22613 | Auger Flight Right 9” x 18” | 2 |
| 152 | 24499 | Auger Flight Left 12” x 36” | 1 |
| 153 | 24501 | Auger Flight Right 12” x 36” | 1 |
| 154 | 25240 | Auger Tube Weldment HP | 1 |
| 155 | 22989 | Auger Motor-Latch Plate | 2 |
| 156 | 22603 | Auger Dead Shaft (welded into end of tube) | 2 |
| 157 | 22606 | Auger Drive Shaft (welded into end of tube) | 2 |
| 158 | 22681 | Hub Package (A 608) HP | 2 |
| 159 | 27393 | Hub Cap | 2 |
| 160 | 25890 | Hitch Plate Weldment | 1 |
| 161 | 23801 | Jackstand (Side Mount, Jack Screw Type) | 1 |
| 162 | 27365 | Lug Nuts HP | 8 |
| 163 | 26080 | Runner Pedal Weldment | 1 |
| 164 | 26076 | Actuator Plunger Weldment | 1 |
| 165 | 26078 | Actuator Tube Weldment | 1 |
| 166 | 27170 | Compression Spring | 1 |
| 167 | 26053 | Valve Handle Weldment | 1 |
| 167 | 26053 | Handle (#AL08/M12X200), for 206 | 1 |
| 168 | 27169 | C-55 Extension Spring HP | 1 |
| 169 | 27127 | Dock Bumpers (ER – 45) | 2 |
| 170 | 27022 | Tire 31 x 13.5 – 15) 200--- | 1 |
| 171 | 22035 | Tire 16.5L x16.1 RE 49-153 | 1 |
| 172 | 22714 | Spindle Plate Weldment (With Spindle & Hub) | 1 |
| 173 | 27394 | Spindle Bearing Seal | 2 |
| 180 | 27532 | “Caution” | 2 |
| 181 | 283 “Grease” Arrow | 2 | |
| 182 | 24538 | JACKRABBIT (Black 6” Letters) | 2 |
| 183 | 25750 | Paint (Touch Up Beige) | 1 |
| 184 | 27552 | Nason Primer Mixed | 1 |
| 185 | 27534 | Jackrabbit Beige | 1 |
| 200 | 26242 | Motor (#RE180804) (exhaust) | 1 |
| 201 | 25391 | Motor Mount (exhaust motor) | 1 |
| 202 | 24409 | Motor (#RE 320804) (horizontal chain) | 1 |
| 203 | 24664 | Auger Motor (#RS180201) | 2 |
| 203A | 24395A | Torque Arm (auger motor) | 2 |
| 206 | 27557B | Energy Valve (#B1239) SAE/32098C, “O” ring | 1 |
| 206 | 27113 | Valve (Valvoil #DF20/3A 17 L) OBS | |
| 208 | 25707 | Check Valve (#DC750) | 1 |
| 209 | 26945 | Wood Box Cylinder (2” x 4” stroke) | 1 |
| 210 | 25278 | ¾” Hycon Double Clamp | 3 |
| 211 | 25132 | Flow Control FCR51-10 ¾” SAE “O”ring boss | 1 |
| 211 | or 215B 25132 Flow Control | 1 | |
| 211 | 25132 | Flow Control ¾” or 12 SAE | 1 |
| 212 | 25132A | FCR Relief Kit Includes: B5067 Ball, RL 59A9 | 1 |
| 213 | 24403 | Flow Control 51-12 (no relief, augers) | 1 |
| 213A | Flow Divider B-50 ( augers pecans) | 1 | |
| 215 | 27491 | Manifold HP19506-2 | 1 |
| 215A | 27317 | Relief valve (manifold) | 1 |
| 215B | Flow Control Valve(manifold) | 1 | |
| 215C | Open Center & Closed Center Valve (manifold) | 1 | |
| 215D | 27760 | Open/Closed Center Locking Bracket (manifold) | 1 |
| 240 | 28155 | Hub, for wheel motor assist, used in Australia | 2 |
| 300 | 27571 | HP Slide Kit (includes 301 - 303 ) 325--- | 1 |
| 301 | 27561 | Short Slide 38” | 2 |
| 302 | 27559 | Long Slide 60” | 2 |
| 303 | ¼”x ¾” Elevator Bolts | 16 | |
| 310 | 27269 | HP Slide Kit (includes 311 – 313) 235 - 324 | 1 |
| 311 | 27191 | Short Slide 27” | 2 |
| 312 | 27192 | Long Slide 67” | 2 |
| 313 | ¼”x ¾” Elevator Bolts | 16 | |
| 320 | 27268 | HP Slide Kit (includes 321 – 323) 200 – 234 | 1 |
| 321 | 25746 | Short Slide 22” | 2 |
| 322 | 27058 | Long Slide 59” | 2 |
| 323 | ¼”x ¾” Elevator Bolts | 16 | |
| 330 | 27271 | RE Slide Kit (includes 331 – 333) 49 - 153 | 1 |
| 331 | 25746 | Short Slide 22” | 2 |
| 332 | 25747 | Long Slide 78” | 2 |
| 333 | ¼”x ¾” Elevator Bolts | 18 | |
| 340 | 25574 | Chain Conveyor Assembly | 1 |
| 340 | 25574 | Conveyor Chain Assemble | 1 |
| 341 | 25573A | Chain (CA557/A4) Two 254” Sections | 1 |
| 342 | 25573 | Chain (CA557/A4 Tabs) per ft | 1 |
| 342 | 25573 | CA557 Chain W/A4 Attach 1ft. | 1 |
| 343 | 27142 | Master Link (CA557 with 4 A Attachment | 2 |
| 343 | 27142 | CA 557 Master Link W/A4 Attach | 2 |
| 344 | 27141 | Master Link CA557) No Attachment | 2 |
| 344A | 27141A | Offset link (CA557) #E 4008 | 1 |
| 344 | 27141 | CA557 Master Link No Attachment | 2 |
| 345 | 25572 | Angle Flight 2” x 47-1/2” | 15 |
| 345 | 25572 | Angle Flights | 15 |
| 346 | 27693 | #60 Diamond Chain 25” | 1 |
| 347 | 27594 | #60 Master Link | 2 |
| 348 | 26456 | #50 Chain 27-1/2” 200 – 230 | 1 |
| 360 | 27857 | 14DT-60 Taper Lock Sprocket 366--- | 2 |
| 360 | 26585 | 11T – 550 Sprocket 1-1/4” Bore) | 4 |
| 360 | 26585 | 11T550 Sprocket 1 ¼” Bore | 4 |
| 361 | 22983 | 8T – 550 Idler Sprocket (5/8” Bore) | 8 |
| 361 | 22983 | 8T550 5/8” Bore Idler Sprocket | 6 |
| 362 | 27563 | 14T – 60 (BTL Taper Lock Sprocket) | 2 |
| 363 | 27565 | Taper Lock Bushing (1210, 1-1/4”) | 1 |
| 364 | 27859 | Taper Lock Bushing (1215, 1”) 366--- | 2 |
| 364 | 27564 | Taper Lock Bushing (1210, 1”) | 1 |
| 365 | 26453 | 17T – 50 (Taper Lock Sprocket 1610, 1-1/4”)200-230 | 2 |
| 365 | 26453 | H50BTL17 Taper Lock Sprocket | 2 |
| 366 | 27062 | Taper Lock Bushing (1610, 1-1/4”) 200 – 230 | 1 |
| 366 | 27062 | Taper Lock Bushing 1610-1 ¼” | 1 |
| 367 | 26455 | Taper Lock Bushing (1610, 1”) 200 – 230 | 1 |
| 367 | 26455 | Taper Lock Bushing 1610-1” | 1 |
| 375 | 25744 | Shaft (1 ¼” Dia) Front Idler | 1 |
| 375 | 25744 | Front Idler Shaft 1 ¼” Dia. | 1 |
| 376 | 25743 | Drive Shaft (1 ¼” Dia.) | 1 |
| 376 | 25743 | Drive Shaft 1 ¼” Dia. | 1 |
| 377 | 22096 | Pillow Block (1 ¼” Dia.) | 4 |
| 377 | 22096 | VAK 1 ¼” Pillow Block | 4 |
| 381 | 24664 | Motor (RS180201) | 1 |
| 381 | 24664 | Motor, White RS 180201 | 1 |
| 382 | 27360 | Sprocket Guard Kit (metal & UHMW) | 1 |
| 383 | 27216 | Sprocket Guard | 2 |
| 384 | 26231 | Sprocket Shield (metal) | 1 |
| 384 | 26231B | UHMW Sprocket Shield | 2 |
| 385 | 26460 | Chain Guard (rear drive) | 1 |
| 386 | 26232 | Outside Shield Metal | 2 |
| 387 | 27220 | Plate – Sprocket Guard MTG. | 2 |
| 388 | 26445 | Hydraulic Motor Mount | 1 |
| 390 | 26460 | Chain Guard | 1 |
| 391 | 27217 | Hydraulic Motor Mount | 1 |
| 420 | 26460 | Chain Guard | 1 |
| 460 | 26454 | 50B 17 1 ¼” Bore Sprocket | 1 |
| 470 | 26456 | #50 Diamond Roller Chain, 27 ½” | 1 |
