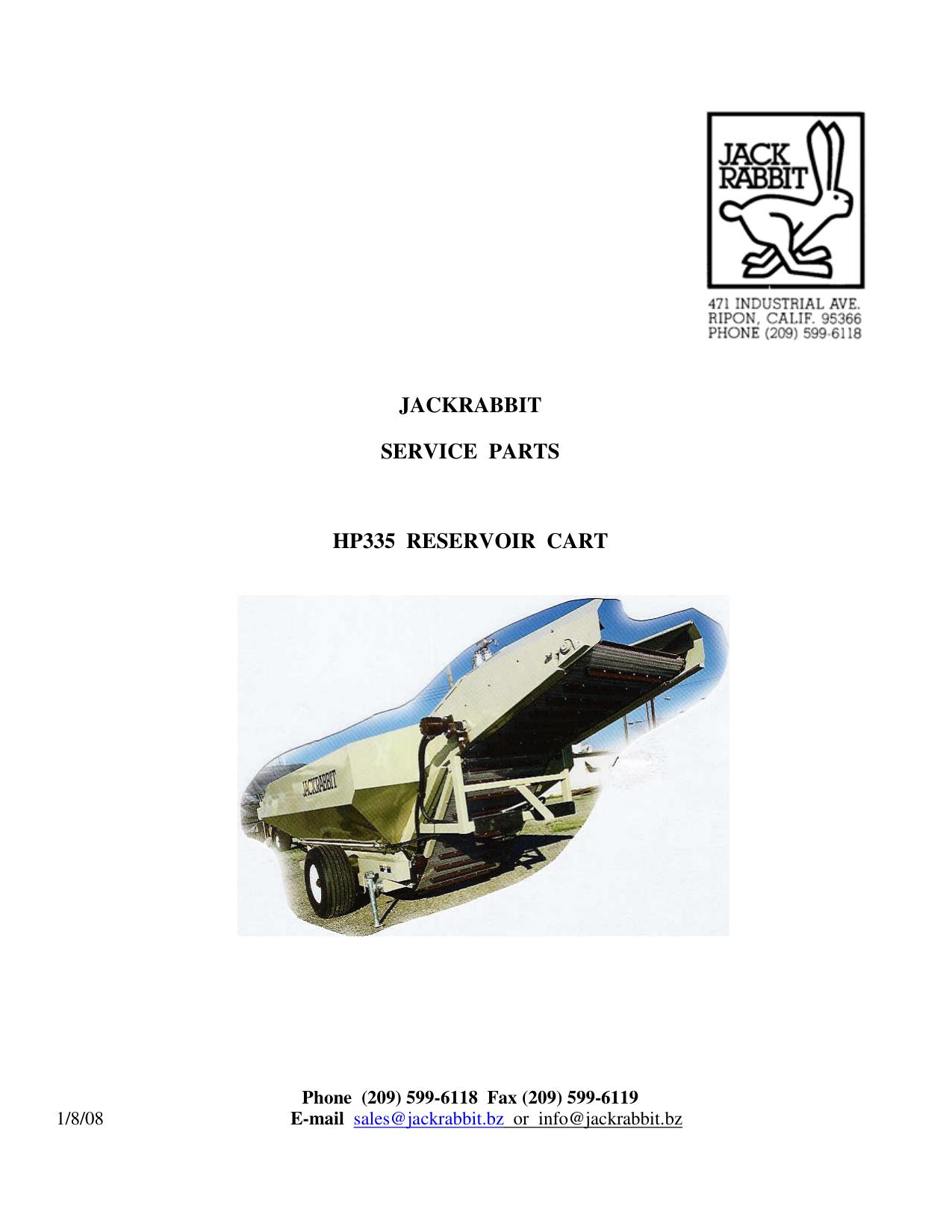

Tap a circled number on the diagram to identify the part.

diagram
✕
#Part numberDescriptionQty
1 26977 Upper Chain Slide -93” 200--- 2
2 25382 Lower Chain Slide – 85” 200--- 2
3 22955 Incline Top Side – 78” 200--- 2
4 25379 Incline Return Slide-38” 200--- 2
5 26963 Exhaust Return Slide -35” 200--- 2
6 22956 Cover Slide-33” 200--- 1
7 25251 Horizontal Return Slide-21” 200--- 2
8 22190 ¼” x ¾” Elevator Bolts 200--- 70
9 ¼” Lock Washers 200--- 70
10 ¼” Hex Nuts 200--- 70
11 27599 Side Cover Right 330--- 1
12 27600 Side Cover Left 330--- 1
15 25384 Upper Chain Slide 108” 49 – 153 2
16 25385 Lower Chain Slide 96” 49 – 153 2
17 25382 Incline Top Slide 85” 49 – 153 2
18 24491 Incline Return Slide 46” 49 – 153 2
19 25379 Exhaust Slide 38” 49 – 153 4
20 22956 Cover Slide 33” 49 – 153 1
21 25251 Horizontal Exhaust Slide 21” 49 – 153 2
22 22190 ¼” x ¾” Elevator Bolts 70
23 ¼” x ¾” Lock washers 70
30 27044 Front Seal 200--- 1
31 27028 Horizontal Bin Seal Rt. 200--- 1
31 27029 Horizontal Bin Seal Lt. 200--- 1
32 27177 Incline Seal Rt. 200--- 1
32 27178 Incline Seal Lt. 200--- 1
33 27047 Exhaust Seal Rt. 200--- 1
33 27047A Exhaust Seal Lt. 200--- 1
34 27172C Lower Transition Seal (rubber) 200--- 2
34A 27124 Lower Transition Seal Assembly Lt. 200--- 1
34B 27124A Lower Transition Seal Assembly Rt. 200--- 1
34C 27035 Outside Tran. Seal Plate Rt. or Lt. 200--- 1
34D 27035A Outside Tran.Seal Plate Rt and Lt. 200--- 1
35 27039 Incline Middle Seal OBS 2
39 27049 Front Bumper Notched, 12”x 140” 200--- 1
39 27049 Front Bumper Notched, 12”x140” 49-153 1
40 27049A Front Bumper No Notch, 12” x140” 200--- 1
40 27049A Front Bumper No Notch, 12”x140” 49-153 1
41 25266 Front Seal Hold Down (metal) 200--- 2
42 Horizontal Seal Hold Down (metal) 200--- 2
43 Incline Seal Hold Down (metal) 200--- 2
44 27048 Exhaust Seal Hold Down (metal) 200--- 2
45 Front Bumper Hold Down (metal) 200--- 1
50 25267 Front Seal 49-153 1
51 25779 Horizontal Bin Seal Rt. 49-153 1
51 25780 Horizontal Bin Seal Lt. 49-153 1
53 25786 Incline Seal Rt. 49–153 1
53 25787 Incline Seal Lt. 49–153 1
55 25975 Exhaust Seal Rt. 49-153 1
55 25976 Exhaust Seal Lt. 49-153 1
57 25392 Lower Transition Seal 93-153 2
60 25266 Front Seal Hold Down (metal) 49-153 1
61 Horizontal Seal Hold Down (metal) 49-153 2
63 Incline Seal Hold Down (metal) 49-153 2
64 27048 Exhaust Seal Hold Down (metal) 49-153 2
65 Front Bumper Hold Down (metal) 49-153 1
70 26995 Horz. Conv. Chain Assembly – 19ft, 34 Slats 200--- 1
71 27555 Almond (Incline) Chain Assembly 26-1/2 ft 200--- 1
72 26165 Walnut (Incline) Chain Assembly 27 ft 200--- 1
73 26224 Master Link Walnut 1
74 27090 Pecan (Incline) Tube Chain Assembly 27 ft) 200--- 1
75 27091 Master Link Pecan 1
76 25176 Horizontal Flights 1
77 25177 Flights (Incline Chain) 1
78 25174 Slat (Horizontal Chain) 1
79 25184 Woven Wire Belt (l ft) 1
80 25182 CA550 Roller Chain With A1 Attachment (1 ft) 1
81 27144 Master Link (CA550) With A1 Attachment 4
82 27143 Master Link (CA550) Without Attachment 2
83 27143A Offset Link (CA550) 1
84 25103 #80 Roller Chain Per Ft. 1
85 23802 #80 Roller Chain Master Link 1
86 23803 #80 Roller Chain Offset Link 2
100 184 8T-550, 1 ½” Bore (4 incline, 2 horizontal chain) 6
101 25131 8T-550, 1 ¼” Bore (2 incline, 2 horizontal chain) 4
102 22983 8T-550, Idler Sprocket 5/8” Bore 8
103 25222 12T-80 Weldment Exhaust Drive Sprocket 2
104 22495 Climax Coupler 1 ¼” Bore 1
105 25227 32T - #80 Weldment Sprocket 1
106 22712 2517- 1-1/2” Taper Lock Bushing 1
107 24678 11T - #80 Idler Sprocket (#08011012) 1
108 25312 12T - #80 Horizontal Drive BTL Sprocket 1
109 24683 Taper Lock #615, 1 ¼” ID 5/16” Key 1
110 25211 Front Idler, (1 ¼” Dia. x 48 ½” Length) 2
111 25212 Drive (1 ½” Dia. x 52 ½” Length) 2
112 25213 Jack Shaft (1 ½” Dia. x 52 ½” Length) 1
113 22097 Pillow Block VCJ (1 ½” Bore) 8
114 22977 Pillow Block VAK (1” Bore) 4
115 26464 Bearing Pad 4
116 22098 Auger Mount Bearing (#VCJ 1 ½” Bore) 2
201 25391 Motor Mount (exhaust chain motor) 1
