Air System And Pickup Seals · Jackrabbit Jackrabbit Harvester with Discs

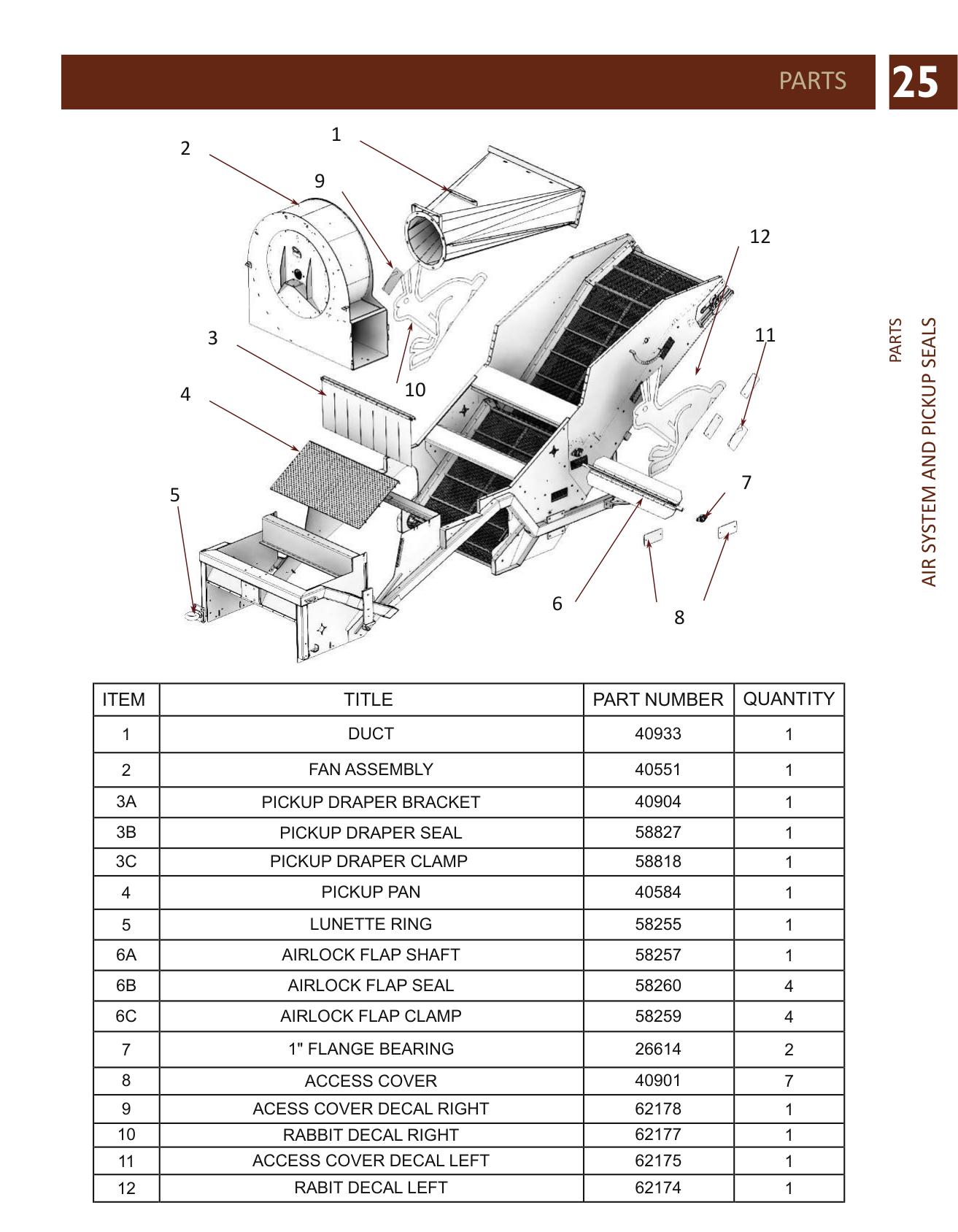

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | 40933 | DUCT | 1 |
| 2 | 40551 | FAN ASSEMBLY | 1 |
| 4 | 40584 | PICKUP PAN | 1 |
| 5 | 58255 | LUNETTE RING | 1 |
| 7 | 26614 | 1" FLANGE BEARING | 2 |
| 8 | 40901 | ACCESS COVER | 7 |
| 9 | 62178 | ACESS COVER DECAL RIGHT | 1 |
| 10 | 62177 | RABBIT DECAL RIGHT | 1 |
| 11 | 62175 | ACCESS COVER DECAL LEFT | 1 |
| 12 | 62174 | RABIT DECAL LEFT | 1 |
