← Jackrabbit Harvester with Discs
Front End · Jackrabbit Jackrabbit Harvester with Discs

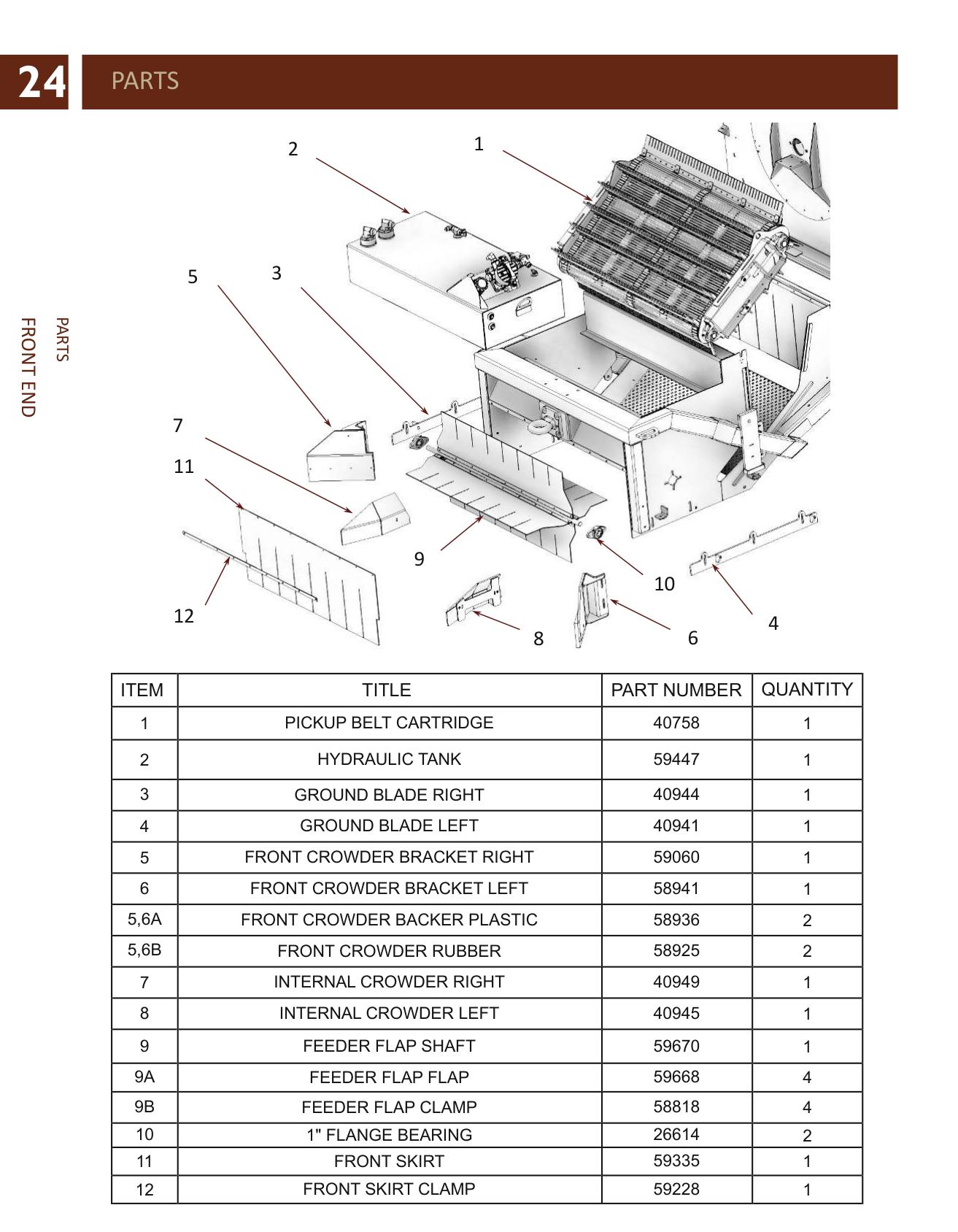

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | 40758 | PICKUP BELT CARTRIDGE | 1 |
| 2 | 59447 | HYDRAULIC TANK | 1 |
| 3 | 40944 | GROUND BLADE RIGHT | 1 |
| 4 | 40941 | GROUND BLADE LEFT | 1 |
| 5 | 59060 | FRONT CROWDER BRACKET RIGHT | 1 |
| 6 | 58941 | FRONT CROWDER BRACKET LEFT | 1 |
| 7 | 40949 | INTERNAL CROWDER RIGHT | 1 |
| 8 | 40945 | INTERNAL CROWDER LEFT | 1 |
| 9 | 59670 | FEEDER FLAP SHAFT | 1 |
| 10 | 26614 | 1" FLANGE BEARING | 2 |
| 11 | 59335 | FRONT SKIRT | 1 |
| 12 | 59228 | FRONT SKIRT CLAMP | 1 |
