Covers · Jackrabbit Jackrabbit Harvester with Discs

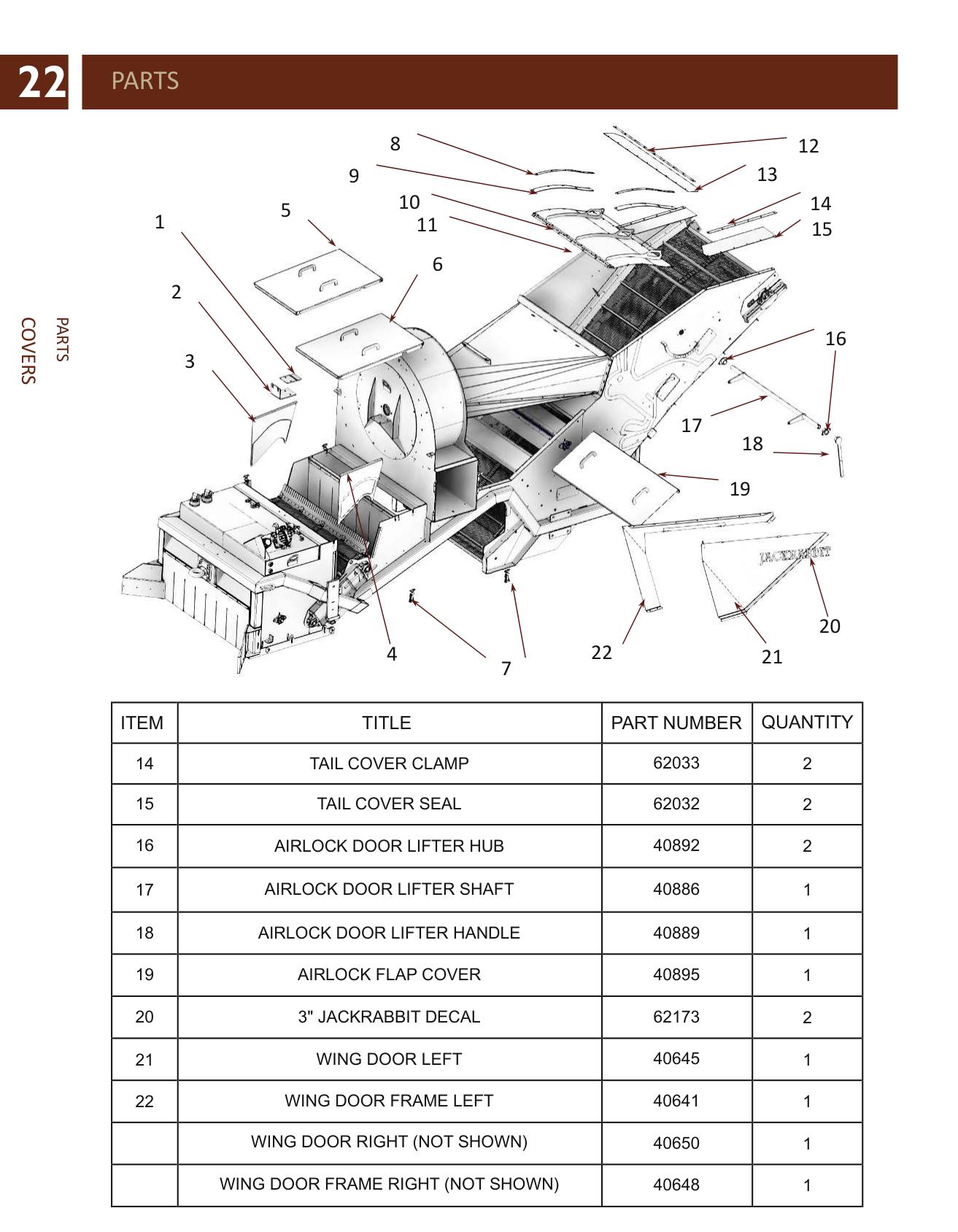

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 14 | 62033 | TAIL COVER CLAMP | 2 |
| 15 | 62032 | TAIL COVER SEAL | 2 |
| 16 | 40892 | AIRLOCK DOOR LIFTER HUB | 2 |
| 17 | 40886 | AIRLOCK DOOR LIFTER SHAFT | 1 |
| 18 | 40889 | AIRLOCK DOOR LIFTER HANDLE | 1 |
| 19 | 40895 | AIRLOCK FLAP COVER | 1 |
| 20 | 62173 | 3" JACKRABBIT DECAL | 2 |
| 21 | 40645 | WING DOOR LEFT | 1 |
| 22 | 40641 | WING DOOR FRAME LEFT | 1 |
