← Jackrabbit Harvester with Discs
Covers · Jackrabbit Jackrabbit Harvester with Discs

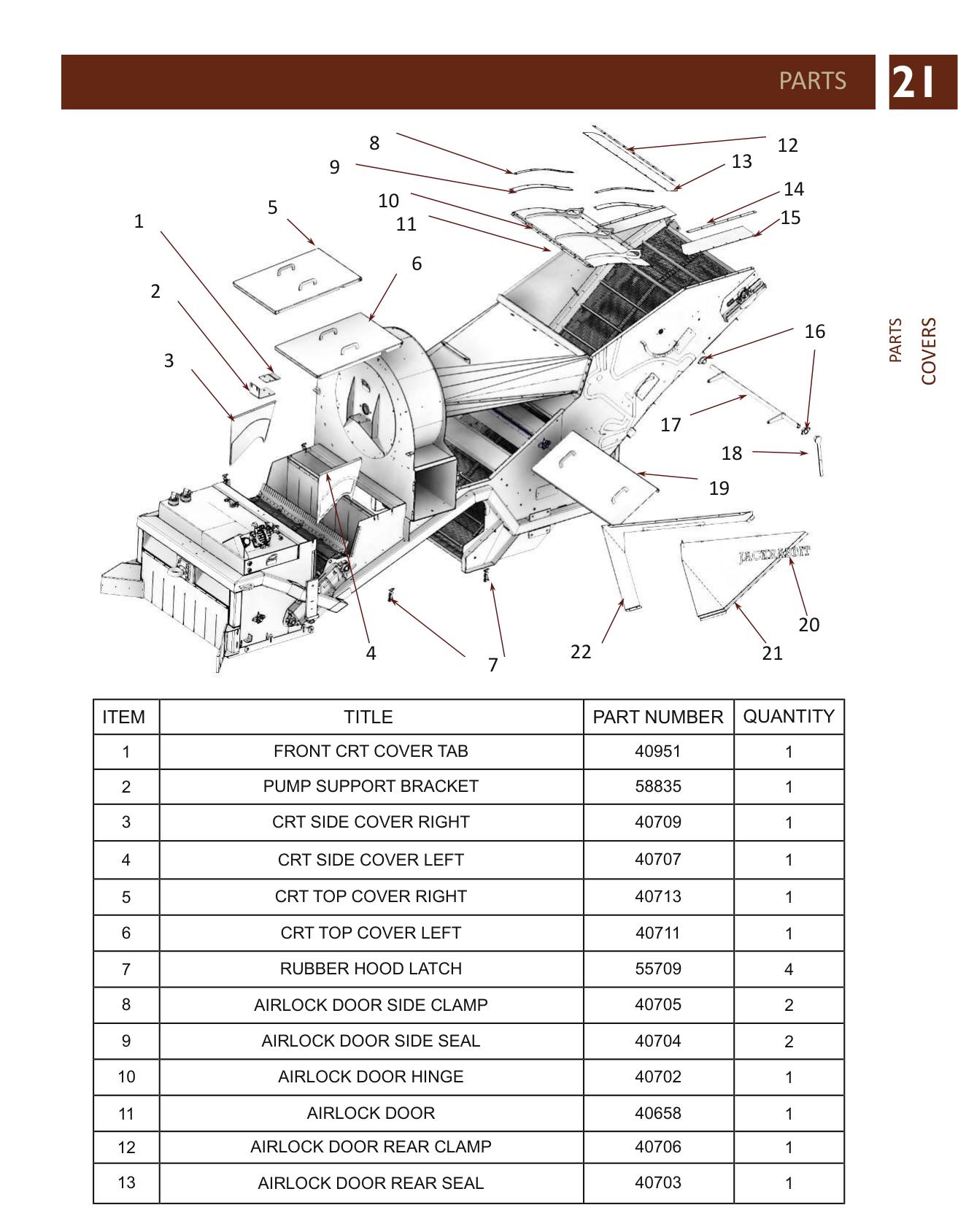

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | 40951 | FRONT CRT COVER TAB | 1 |
| 2 | 58835 | PUMP SUPPORT BRACKET | 1 |
| 3 | 40709 | CRT SIDE COVER RIGHT | 1 |
| 4 | 40707 | CRT SIDE COVER LEFT | 1 |
| 5 | 40713 | CRT TOP COVER RIGHT | 1 |
| 6 | 40711 | CRT TOP COVER LEFT | 1 |
| 7 | 55709 | RUBBER HOOD LATCH | 4 |
| 8 | 40705 | AIRLOCK DOOR SIDE CLAMP | 2 |
| 9 | 40704 | AIRLOCK DOOR SIDE SEAL | 2 |
| 10 | 40702 | AIRLOCK DOOR HINGE | 1 |
| 11 | 40658 | AIRLOCK DOOR | 1 |
| 12 | 40706 | AIRLOCK DOOR REAR CLAMP | 1 |
| 13 | 40703 | AIRLOCK DOOR REAR SEAL | 1 |
