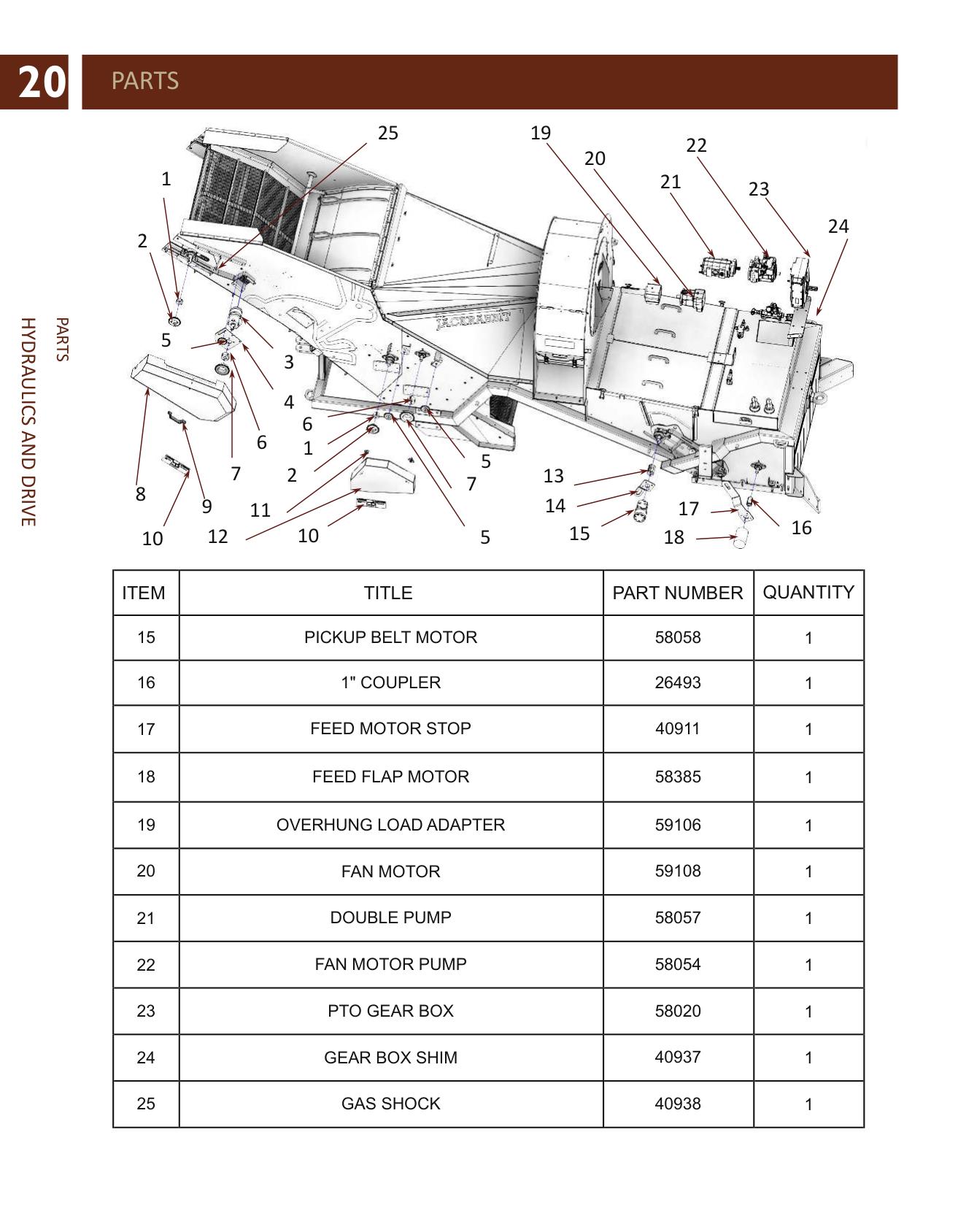

Hydraulics And Drive · Jackrabbit Jackrabbit Harvester with Discs
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 15 | 58058 | PICKUP BELT MOTOR | 1 |
| 16 | 26493 | 1" COUPLER | 1 |
| 17 | 40911 | FEED MOTOR STOP | 1 |
| 18 | 58385 | FEED FLAP MOTOR | 1 |
| 19 | 59106 | OVERHUNG LOAD ADAPTER | 1 |
| 20 | 59108 | FAN MOTOR | 1 |
| 21 | 58057 | DOUBLE PUMP | 1 |
| 22 | 58054 | FAN MOTOR PUMP | 1 |
| 23 | 58020 | PTO GEAR BOX | 1 |
| 24 | 40937 | GEAR BOX SHIM | 1 |
| 25 | 40938 | GAS SHOCK | 1 |
