Hydraulics And Drive · Jackrabbit Jackrabbit Harvester with Discs

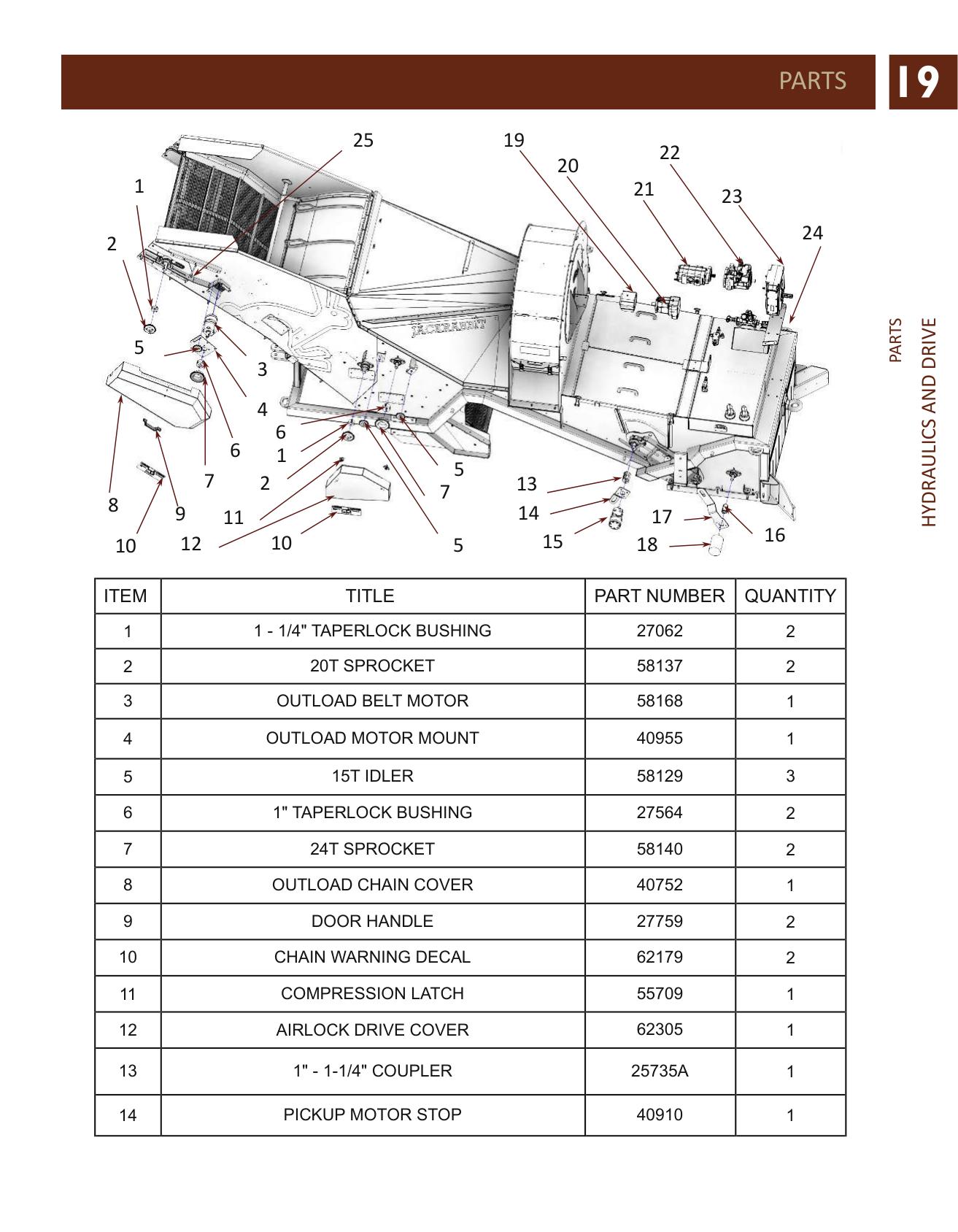

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | 27062 | 1 1/4" TAPERLOCK BUSHING | 2 |
| 2 | 58137 | 20T SPROCKET | 2 |
| 3 | 58168 | OUTLOAD BELT MOTOR | 1 |
| 4 | 40955 | OUTLOAD MOTOR MOUNT | 1 |
| 5 | 58129 | 15T IDLER | 3 |
| 6 | 27564 | 1" TAPERLOCK BUSHING | 2 |
| 7 | 58140 | 24T SPROCKET | 2 |
| 8 | 40752 | OUTLOAD CHAIN COVER | 1 |
| 9 | 27759 | DOOR HANDLE | 2 |
| 10 | 62179 | CHAIN WARNING DECAL | 2 |
| 11 | 55709 | COMPRESSION LATCH | 1 |
| 12 | 62305 | AIRLOCK DRIVE COVER | 1 |
| 13 | 25735A | 1" 11/4" COUPLER | 1 |
| 14 | 40910 | PICKUP MOTOR STOP | 1 |
