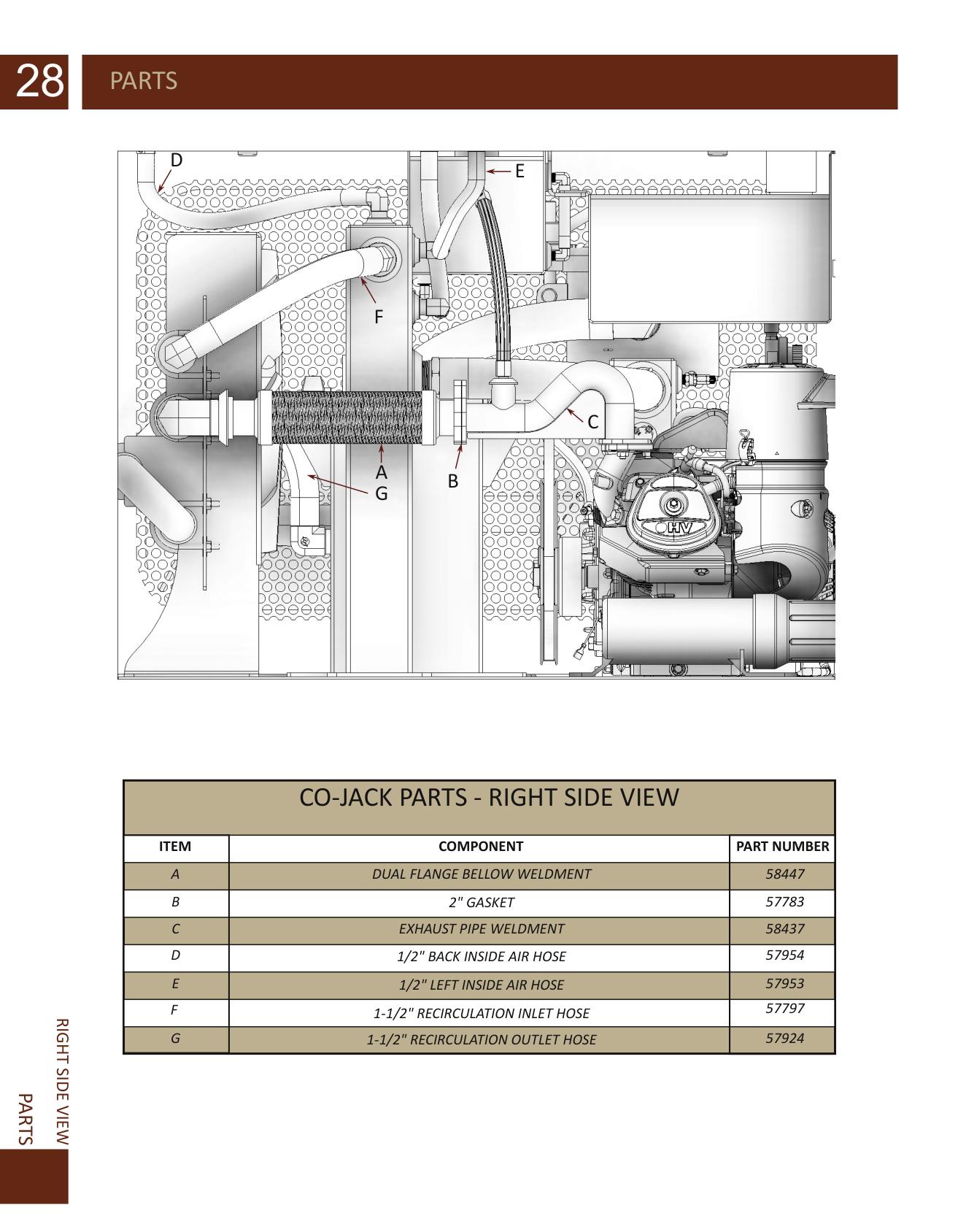

Co-Jack Parts - Right Side View · Jackrabbit Jackrabbit CO-Jack (s/n 425+)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| A | 58447 | DUAL FLANGE BELLOW WELDMENT | |
| B | 57783 | 2" GASKET | |
| C | 58437 | EXHAUST PIPE WELDMENT | |
| D | 57954 | 1/2" BACK INSIDE AIR HOSE | |
| E | 57953 | 1/2" LEFT INSIDE AIR HOSE | |
| F | 57797 | 1-1/2" RECIRCULATION INLET HOSE | |
| G | 57924 | 1-1/2" RECIRCULATION OUTLET HOSE | |
| A | 57822 | KOHLER IGNITION SWITCH | |
| B | 57820 | KOHLER FUEL LINE | |
| C | 34804 | EVAPORATIVE CAP | |
| D | 57704 | COJACK TIRE ONLY | |
| E | 57705 | COJACK 5 ON 44-1/2 RIM ONLY | |
| F | 57832 | VACUUM PUMP AIR FILTER ELEMENT | |
| G | 57833 | VACUUM PUMP PARTICLE FILTER ELEMENT | |
| H | 57842 | KOHLER STARTER SOLENOID | |
| I | 57844 | KOHLER KEYBOX HOUSING ASSY. | |
| J | 57845 | 1-1/2" MANIFOLD INLET HOSE | |
| K | 57860 | 1-1/2" VACUUM PUMP INLET HOSE | |
| L | 57898 | 1" PILLOW BLOCK BEARING | |
| M | 57932 | 1" FAN SHAFT | |
| N | 57933 | 1/2" CENTER INSIDE AIR HOSE | |
| O | 57969 | 1/2" RIGHT INSIDE AIR HOSE | |
| P | 57987 | 1-1/2" MANIFOLD INLET HOSE | |
| Q | 57829 | 1-1/2" VACUUM PUMP INLET HOSE | |
| R | 57823 | 1" PILLOW BLOCK BEARING | |
| S | 57900 | 1" FAN SHAFT | |
| T | 63888 | 1/2" CENTER INSIDE AIR HOSE | |
| U | 58499 | 1/2" RIGHT INSIDE AIR HOSE | |
| V | 64697 | 1-1/2" VACUUM PUMP INLET HOSE | |
| W | 58541 | 1-1/2" VACUUM PUMP INLET HOSE | |
| X | 64696 | 1" PILLOW BLOCK BEARING | |
| Y | 64700 | 1" FAN SHAFT | |
| Z | 31257 | 1/2" CENTER INSIDE AIR HOSE | |
| AA | 31258 | 1/2" RIGHT INSIDE AIR HOSE | |
| J | 57961 | 1-1/2" MANIFOLD INLET HOSE | |
| K | 67466 | 1-1/2" VACUUM PUMP INLET HOSE | |
| L | 67468 | 1" PILLOW BLOCK BEARING | |
| M | 31297 | 1" FAN SHAFT |
