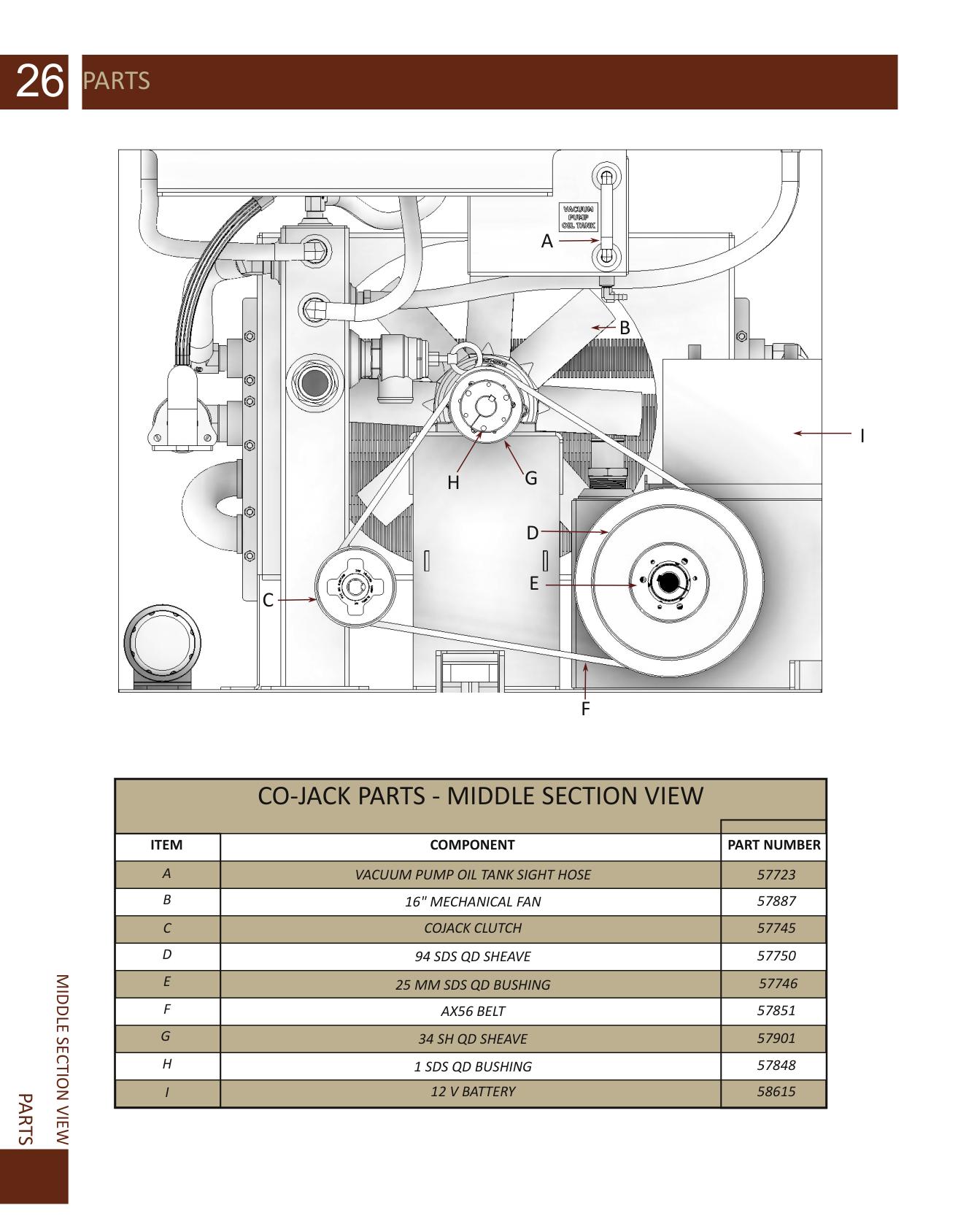

Co-Jack Parts - Middle Section View · Jackrabbit Jackrabbit CO-Jack (s/n 425+)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| A | 57723 | VACUUM PUMP OIL TANK SIGHT HOSE | |
| B | 57887 | 16" MECHANICAL FAN | |
| C | 57745 | COJACK CLUTCH | |
| D | 57750 | 94 SDS QD SHEAVE | |
| E | 57746 | 25 MM SDS QD BUSHING | |
| F | 57851 | AX56 BELT | |
| G | 57901 | 34 SH QD SHEAVE | |
| H | 57848 | 1 SDS QD BUSHING | |
| I | 58615 | 12 V BATTERY | |
| A | 57756 | 1-1/2" PRESSURE RELIEF VALVE | |
| B | 57952 | 1/2" CENTER INSIDE AIR HOSE | |
| C | 57955 | 1/2" RIGHT INSIDE AIR HOSE | |
| D | 63697 | 1-1/2" MANIFOLD INLET HOSE | |
| E | 64694 | 1-1/2" VACUUM PUMP INLET HOSE | |
| F | 22977 | 1" PILLOW BLOCK BEARING | |
| G | 57850 | 1" FAN SHAFT |
