← Jackrabbit CO-Jack (s/n 425+)

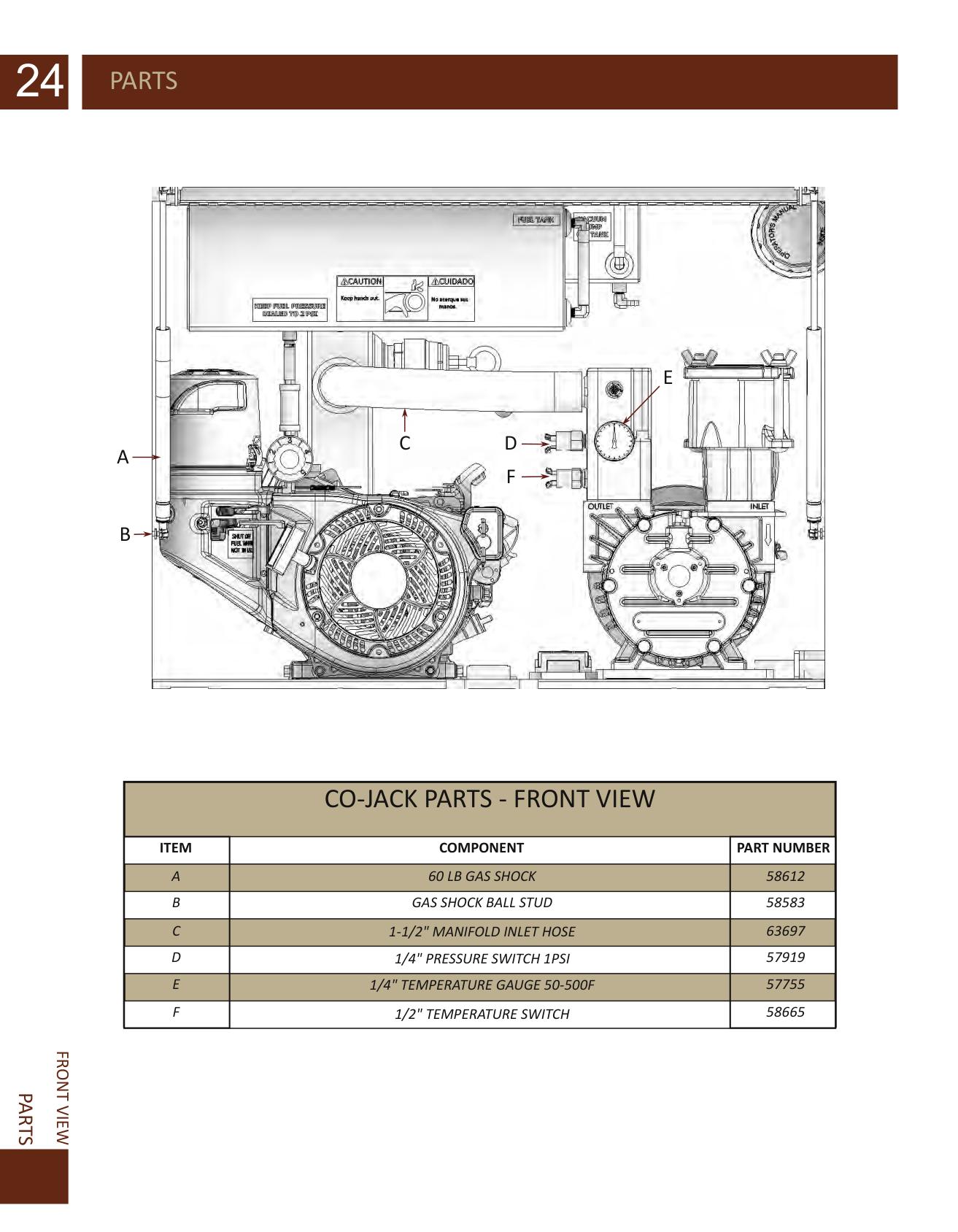

Co-Jack Parts - Front View · Jackrabbit Jackrabbit CO-Jack (s/n 425+)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| A | 58612 | 60 LB GAS SHOCK | |
| B | 58583 | GAS SHOCK BALL STUD | |
| C | 63697 | 1-1/2" MANIFOLD INLET HOSE | |
| D | 57919 | 1/4" PRESSURE SWITCH 1PSI | |
| E | 57755 | 1/4" TEMPERATURE GAUGE 50-500F | |
| F | 58665 | 1/2" TEMPERATURE SWITCH | |
| A | 58404 | GAS ENGINE | |
| B | 57702 | ENGINE AIR FILTER ELEMENT | |
| C | 57703 | ENGINE PRE-CLEANER ELEMENT | |
| D | 64783 | PRESSURE REGULATOR | |
| E | 65056 | FUEL FILTER | |
| F | 57793 | 1/4" FUEL TANK TO FUEL FILTER HOSE | |
| G | 34803 | ENGINE KEY | |
| H | 57722 | 1/4" FUEL TANK SIGHT HOSE | |
| I | 67703 | FUEL TANK CAP |
