← Jackrabbit JR 400-180 T4 (s/n 1230-1263)
Miscellaneous Components (Continued) · Jackrabbit Jackrabbit JR 400-180 T4 (s/n 1230-1263)

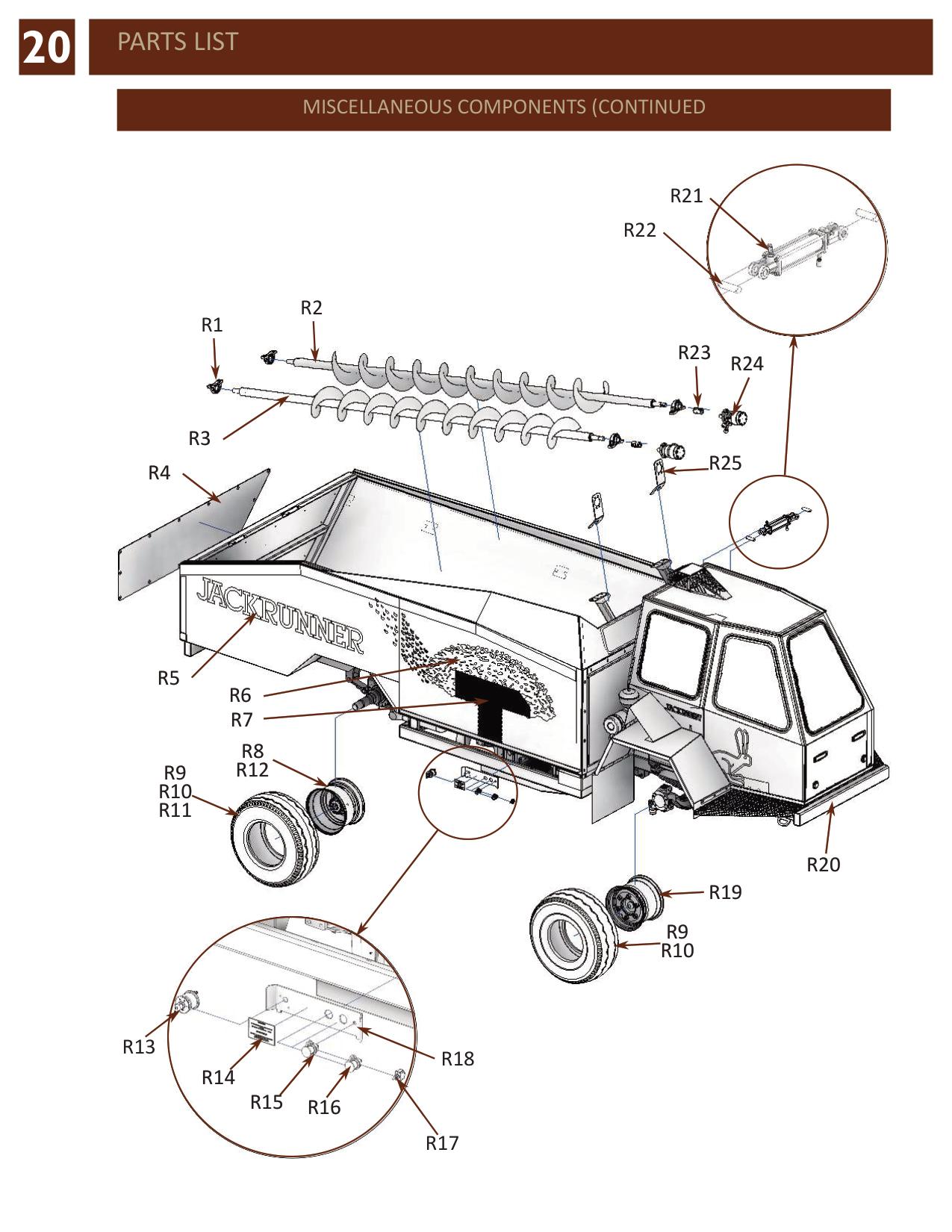

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| R1 | 22097 | 1-1/2" PILLOW BLOCK | |
| R2 | 33633 | RIGHT HAND AUGER | |
| R3 | 33632 | LEFT HAND AUGER | |
| R4 | 34637 | REAR PANEL BUMPER | |
| R5 | 34482 | JACKRUNNER DECAL | |
| R6 | 27066 | TREE DECAL | |
| R7 | 34731 | TREE GRILL | |
| R8 | 26237 | STANDARD REAR RIM | |
| R9 | 33611 | STREET FRONT TIRE OPTION | |
| R10 | 27020 | KNOBBY TIRE OPTION | |
| R11 | 29807B | FLOTATION TIRE OPTION | |
| R12 | 29807A | FLOATATION TIRE RIM | |
| R13 | 30385 | POWER SHUT-OFF SWITCH | |
| R14 | 34442 | POWER SWITCH DECAL | |
| R15 | 26409 | HOT LUG | |
| R16 | 34151 | GROUND LUG | |
| R17 | 34240 | EMERGENCY BIN DUMP SWITCH | |
| R18 | 33972 | SWITCH PLATE | |
| R19 | 26236 | STANDARD FRONT RIM | |
| R20 | 34657 | FRONT BUMPER | |
| R21 | 27354 | BIN FLAP CYLINDER | |
| R22 | 28171 | BIN FLAP CYLINDER PIN | |
| R22.1 | 27780 | BIN FLAP CYLINDER SEAL KIT | |
| R23 | 22495 | 1-1/4" CLIMAX COUPLER | |
| R24 | 29804 | BIN MOTOR RE-18 | |
| R24.1 | 27553 | AUGER MOTOR SEAL KIT | |
| R25 | 34711 | AUGER MOUNT PLATE |
