Main Engine Components · Jackrabbit Jackrabbit JR 400-180 T4 (s/n 1230-1263)

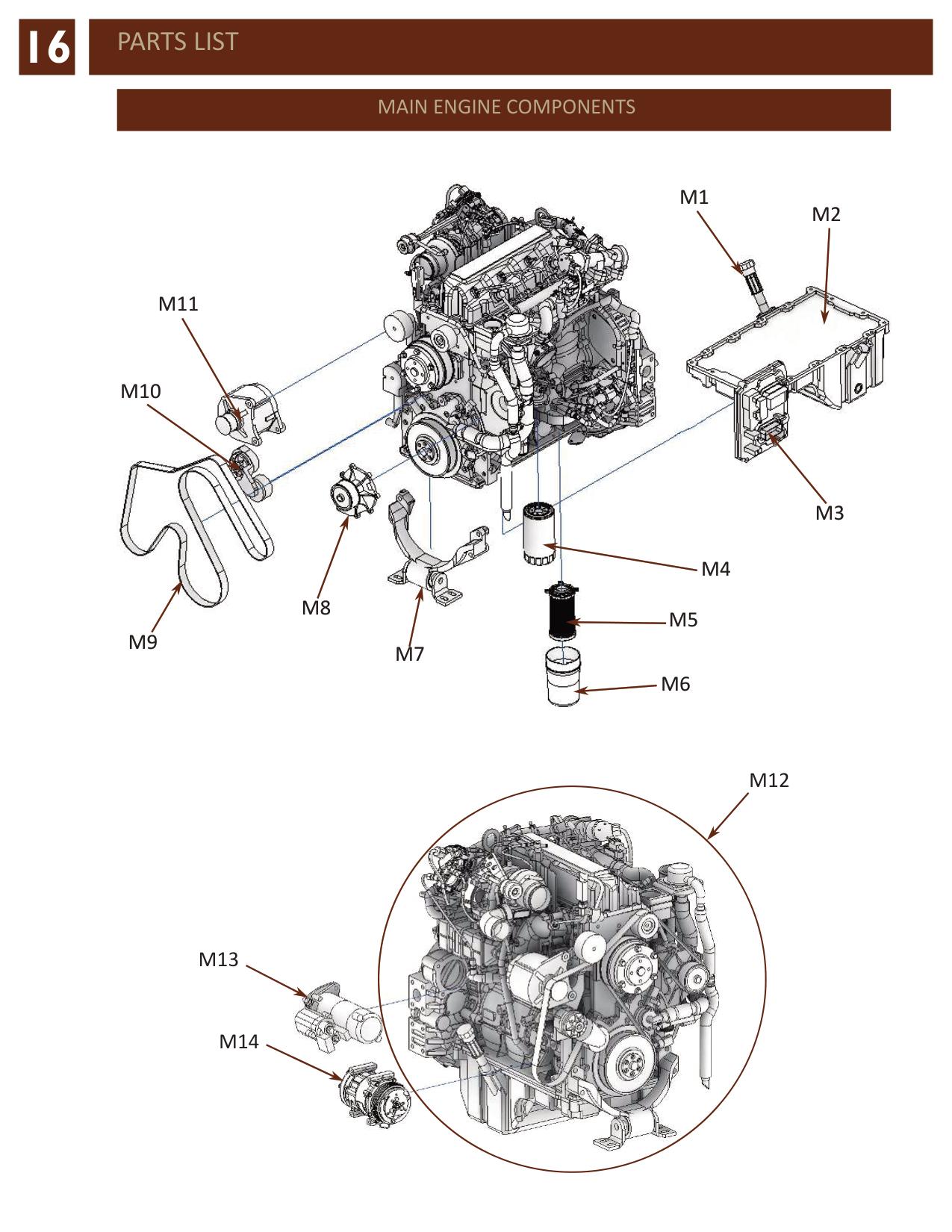

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| M1 | 34155 | QSB 3.8 OIL FILLER DIP STICK | |
| M2 | 34313 | 3.8L OIL PAN | |
| M3 | 34305A | ELECTRONIC CONTROL MODULE | |
| M4 | 34326 | CUMMINS QSB 3.8 OIL FILTER | |
| M5 | 34328 | CUMMINS QSB 3.8 FUEL FILTER CANISTER | |
| M6 | 34327 | CUMMINS QSB 3.8 FUEL FILTER | |
| M7 | 29902 | QSB 4.5 FRONT ENGINE MOUNT | |
| M8 | 34304 | QSB 3.8 WATER PUMP | |
| M9 | 34316 | 3.8L SERPENTINE BELT | |
| M10 | 28965 | BELT TENSIONER | |
| M11 | 34317 | 3.8L ALTERNATOR | |
| M12 | 34305 | QSF 3.8L T4F 130 HP DIESEL ENGINE | |
| M13 | 28962 | 12V 4.8 KW CW 10T STARTER | |
| M14 | 34318 | AC COMPRESSOR |
