← Jackrabbit JR 400-180 T4 (s/n 1230-1263)

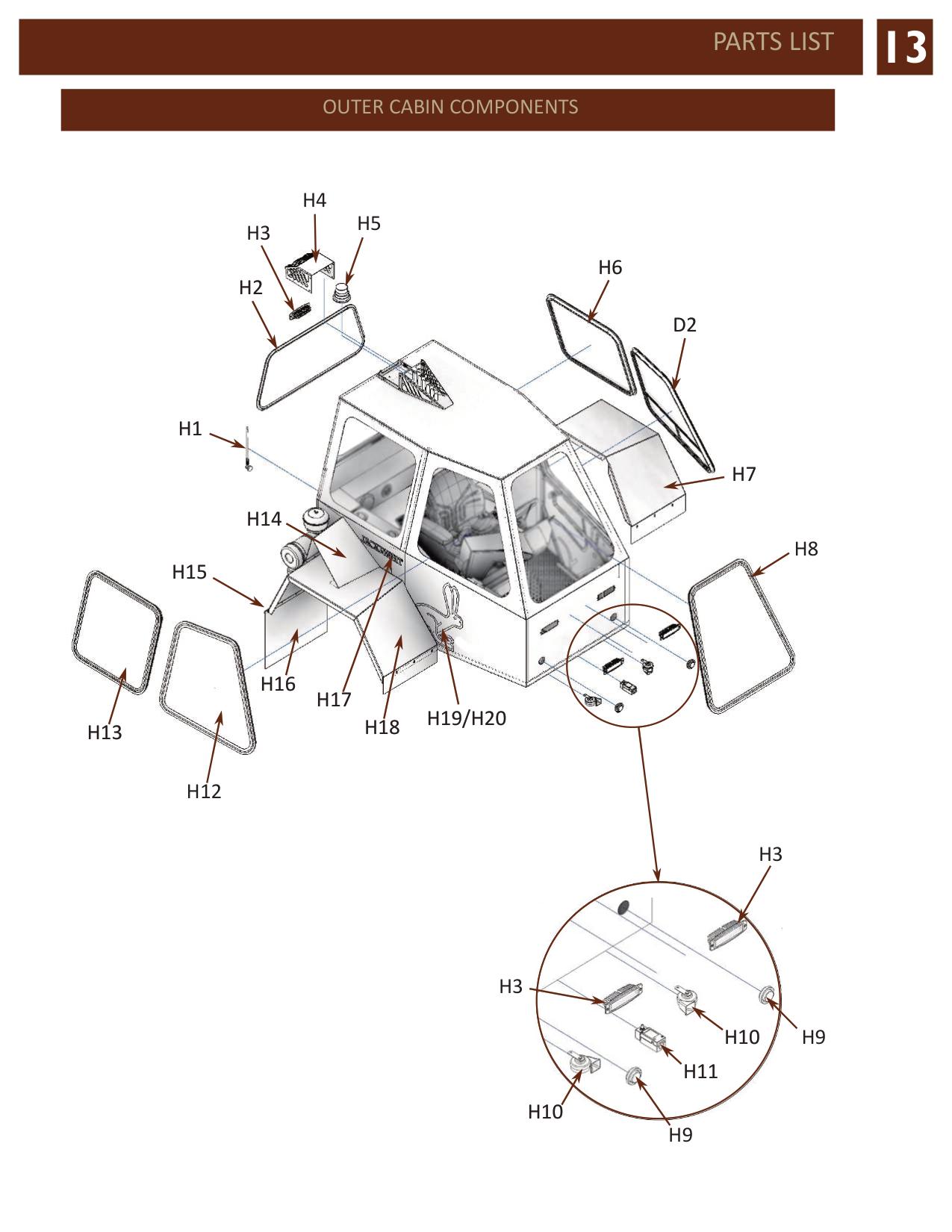

Outer Cabin Components · Jackrabbit Jackrabbit JR 400-180 T4 (s/n 1230-1263)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| H1 | CK-US03R | RADIO ANTENNA | |
| H2 | 34356 | CAB WINDOW REAR CENTER | |
| H3 | 62157 | 6 X 3W LED FLOOD LAMP | |
| H4 | 62134 | CAB ROOF LIGHT TOP COVER | |
| H5 | 33924 | AMBER LED STROBE LIGHT | |
| H6 | 34354 | REAR SIDE WINDOW | |
| H7 | 62489 | RUNNER FENDER LEFT | |
| H8 | 34351 | FRONT WINDOW | |
| H9 | 29685A | AMBER TURN SIGNAL LIGHT | |
| H10 | 33926 | 2PC PIAA SPORTS HORN | |
| H11 | 33411 | LIMIT SWITCH | |
| H12 | 34353 | RIGHT SIDE WINDOW | |
| H13 | 34354 | REAR SIDE WINDOW | |
| H14 | 62498 | RUNNER CAB DUST BOWL GUARD | |
| H15 | 62496 | RUNNER CAB MUD FLAP RIGHT CLAMP STRIP | |
| H16 | 62497 | RUNNER CAB MUD FLAP RIGHT | |
| H17 | 34484 | JACKRABBIT DECAL - ONE LINE | |
| H18 | 62616 | RUNNER FENDER RIGHT | |
| H19 | 34486 | RUN RABBIT RUN - RIGHT SIDE | |
| H20 | 33487 | RUN RABBIT RUN - LEFT SIDE |
