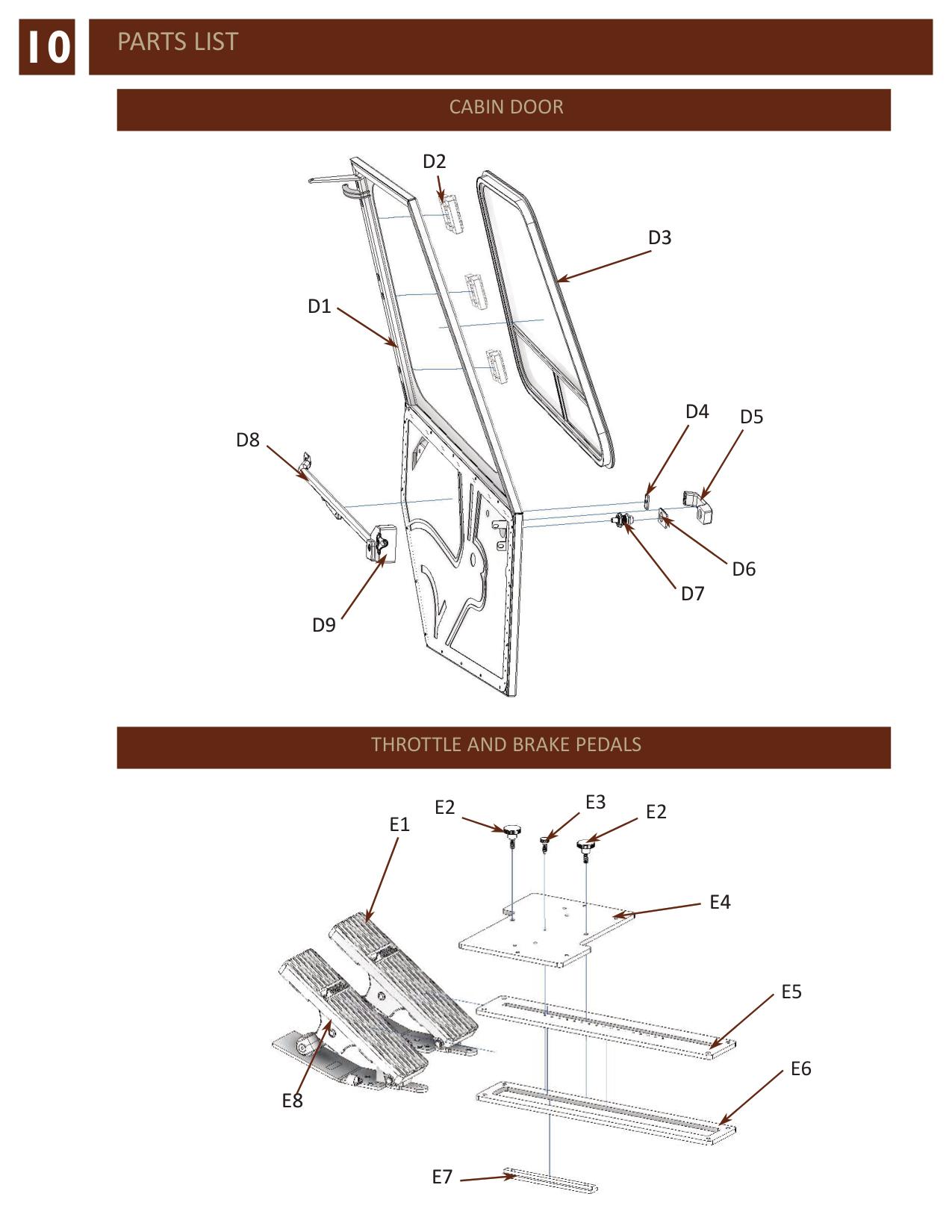

Cabin Door / Throttle And Brake Pedals · Jackrabbit Jackrabbit JR 400-180 T4 (s/n 1230-1263)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| D1 | 62372 | CAB DOOR WELDMENT | |
| D2 | 62167 | RUNNER DOOR HINGE | |
| D3 | 34352 | CAB DOOR WINDOW | |
| D4 | 28342 | SMALL HANDLE GASKET | |
| D5 | 28345 | OUTSIDE DOOR HANDLE | |
| D6 | 28343 | LARGE HANDLE GASKET | |
| D7 | 28341 | THUMB BUTTON | |
| D8 | 62151 | RUNNER DOOR INSIDE HANDLE | |
| D9 | 62756 | STRIKER | |
| E1 | 34447 | THROTTLE PEDAL | |
| E2 | 62533 | 1/4" THUMB SCREW | |
| E3 | 62534 | 1/4" RETRACTABLE SPRING PLUNGER | |
| E4 | 62529 | PEDAL PLATFORM | |
| E5 | 62528 | PEDAL SLIDER SLOT | |
| E6 | 62527 | PEDAL SLIDER BASE | |
| E7 | 62530 | PEDAL SLIDER | |
| E8 | 34446 | BRAKE PEDAL |
