Miscellaneous Components (Continued) · Jackrabbit Jackrabbit JR 400-180 T3 (s/n 1252-1290)

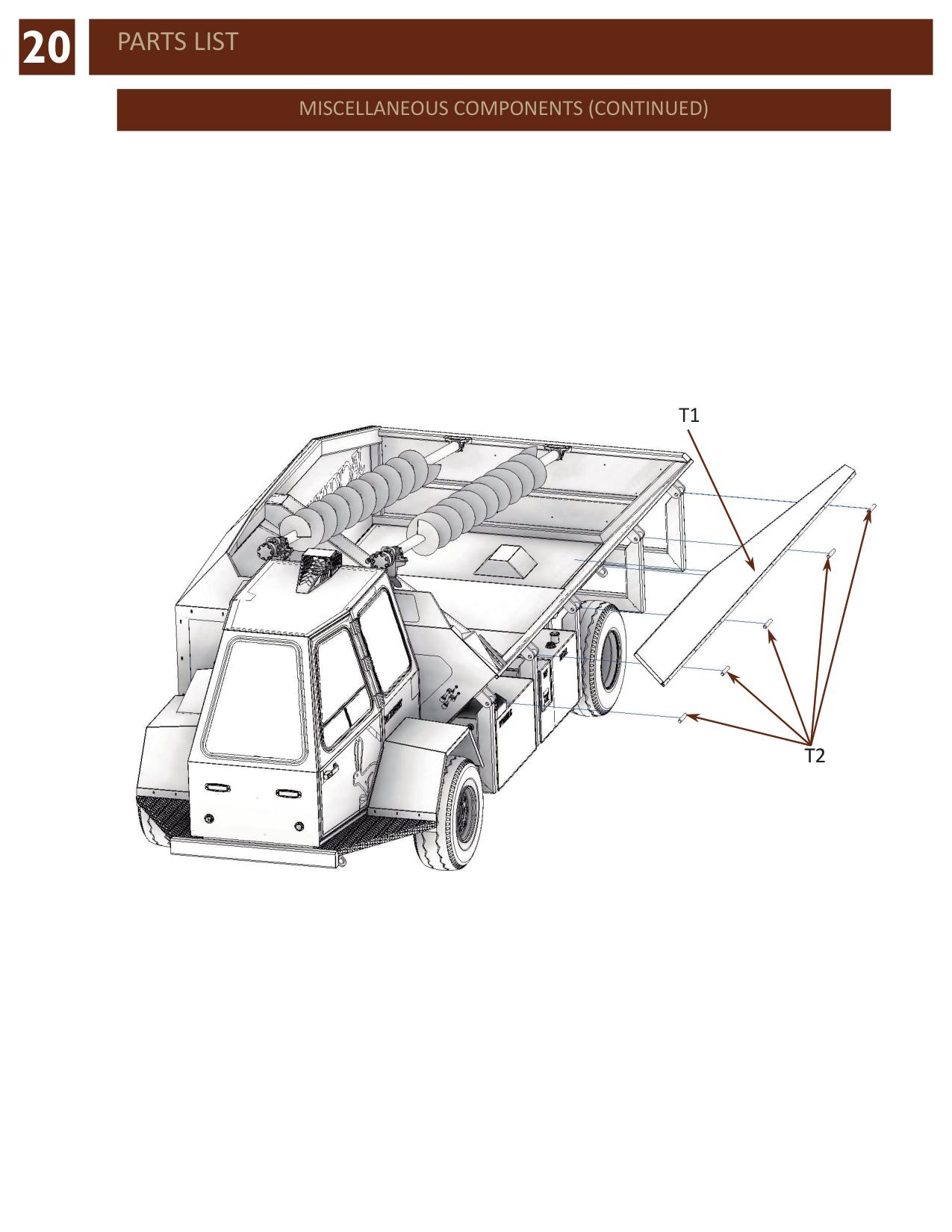

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| T1 | 34365 | BIN FLAP WELDMENT | |
| T2 | 24118 | PIVOT PIN | |
| T3 | 56695 | BACK-UP CAMERA (OPTION) [NOT SHOWN] |
