← Jackrabbit JR 400-180 T3 (s/n 1252-1290)
Miscellaneous Components · Jackrabbit Jackrabbit JR 400-180 T3 (s/n 1252-1290)

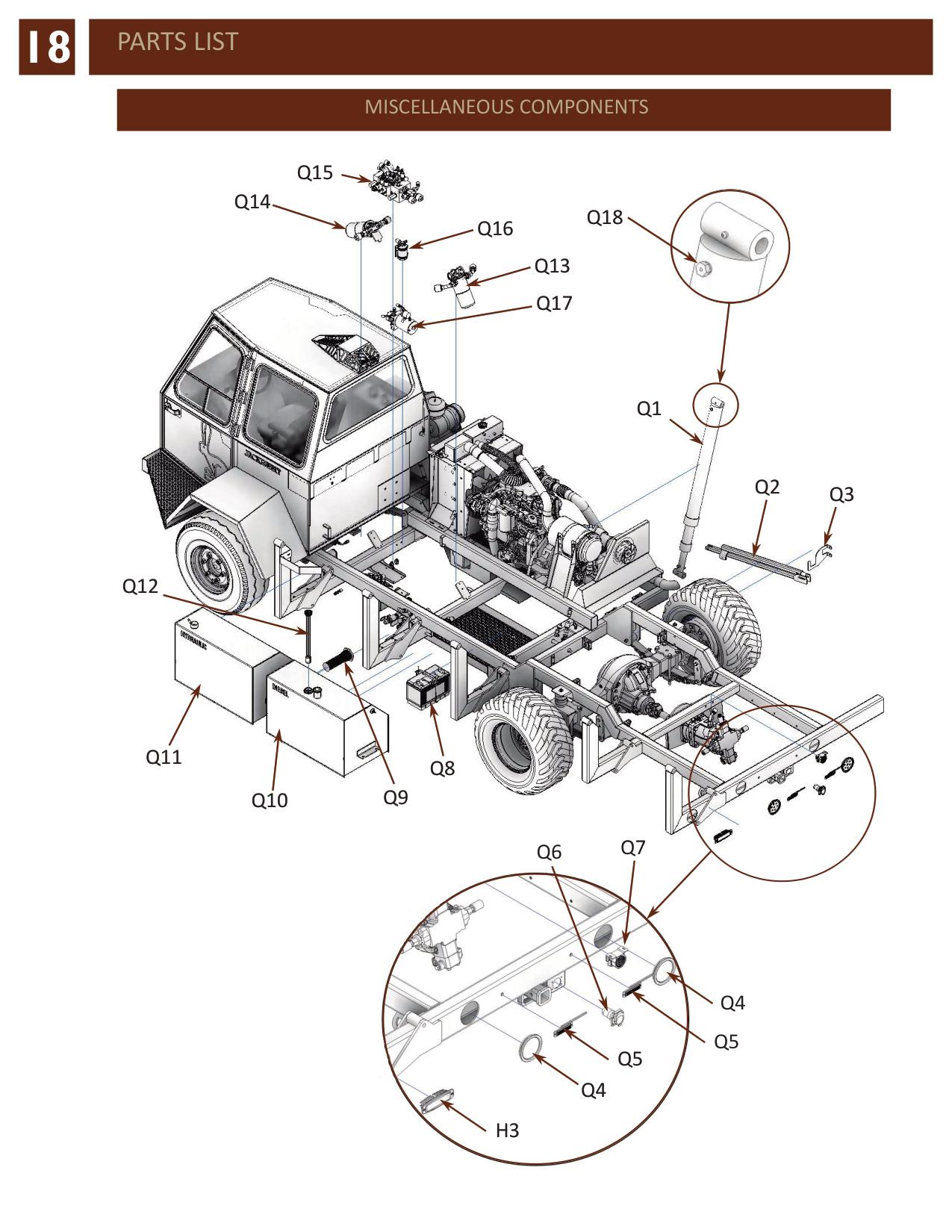

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| Q1 | 28940 | BIN CYLINDER | |
| Q1.1 | 33730 | BIN CYLINDER SEAL KIT | |
| Q2 | 34415 | SAFETY BAR ASSEMBLY | |
| Q3 | 34709 | SAFETY BAR REST | |
| Q4 | 30596 | RED ROUND LED | |
| Q5 | 34010 | 12 V FLASHING LED STROBE LIGHT | |
| Q6 | 29683 | 7-WAY FEMALE TRAILER PLUG | |
| Q7 | 62532 | BACK-UP ALARM | |
| Q8 | 34205 | 12 V DEEP CYCLE BATTERY | |
| Q9 | S50-100 RV3 | 50 GPM SUCTION STRAINER | |
| Q10 | 56690W | T3 FUEL TANK | |
| Q11 | 56700W | STANDARD HYDRAULIC TANK | |
| Q12 | 34157 | VERTICAL MOUNT FUEL LEVEL GUAGE | |
| Q13 | 33975 | HYDRAULIC OIL FILTER (REAR) | |
| Q14 | 33360 | HYDRAULIC OIL FILTER (FRONT) | |
| Q15 | 34123 | BIN AUGER SEAT VALVE | |
| Q15.1 | 27802 | BIN AUGER VALVE SEAL KIT | |
| Q16 | 26407 | A/C RECEIVER DRIER W/ BINARY SWITCH | |
| Q17 | 34126 | BIN DUMP ELECTRIC PUMP | |
| Q18 | 25711D | CYLINDER BLEEDER VALVE |
