Engine Attachments · Jackrabbit Jackrabbit JR 400-180 T3 (s/n 1252-1290)

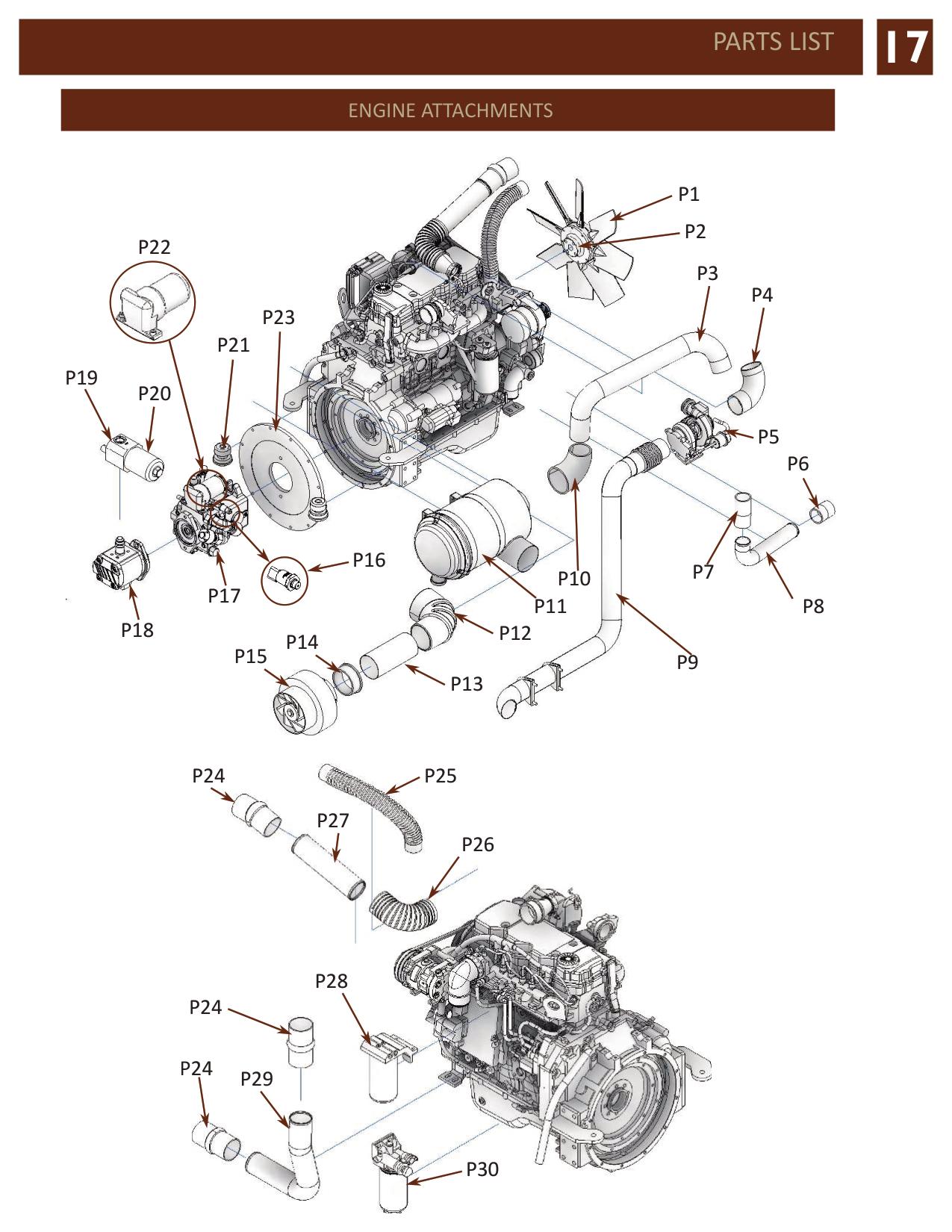

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| P1 | 34036 | REVERSING FAN | |
| P2 | 34301 | CLEANFIX FAN ADAPTER 1-3/4" | |
| P3 | 34042 | AIR INLET (PAINTED) | |
| P4 | 29576 | 2.75 X 2.75 RUBBER ELBOW | |
| P5 | 56403 | 110 HP TURBO | |
| P6 | 33064 | LOWER RADIATOR OUTLET RUBBER CONN. | |
| P7 | 34072 | 2.25 IN HOSE 5 IN LONG | |
| P8 | 28497 | LOWER RADIATOR OUTLET (PAINTED) | |
| P9 | 34160 | EXHAUST PIPE WELDMENT | |
| P10 | 90L40R30 | 4"-3" 90 DEGREE RUBBER REDUCING ELBOW | |
| P11 | 27239 | AIR FILTER ASSEMBLY | |
| P12 | 90L50R40 | 5" - 4" 90 DEGREE RUBBER REDUCING ELBOW | |
| P13 | 28977 | AIR INLET PIPE | |
| P14 | 45R40 | RUBBER INSERT 4.5" - 4" | |
| P15 | 26939 | TURBO II AIR CLEANER | |
| P16 | 34347 | HEAVY DUTY PRESSURE SENSOR | |
| P17 | 31121 | VARIABLE DISPLACEMENT PUMP | |
| P18 | 34125 | GEAR PUMP | |
| P19 | 34118 | SCHROEDER PRESSURE FILTER | |
| P20 | 34119 | SCHROEDER REPLACEMENT ELEMENT | |
| P21 | 27261 | ENGINE MOUNT ISOLATOR | |
| P22 | 27006 | CHARGE FILTER | |
| P23 | 28314B | PUMP MOUNT PLATE | |
| P24 | 28960-7 | CHARGE AIR COOLER HOSE | |
| P25 | 29164 | UPPER RADIATOR HOSE | |
| P26 | 28960-5 | CHARGE AIR COOLER 90 DEG HOSE | |
| P27 | 28515 | UPPER CHARGE AIR COOLER PIPE | |
| P28 | 28959 | FUEL FILTER | |
| P29 | 34044 | CAC OUTLET-JR400-180R3 | |
| P30 | 28955 | FUEL SEPARATOR |
