Main Engine Components · Jackrabbit Jackrabbit JR 400-180 T3 (s/n 1252-1290)

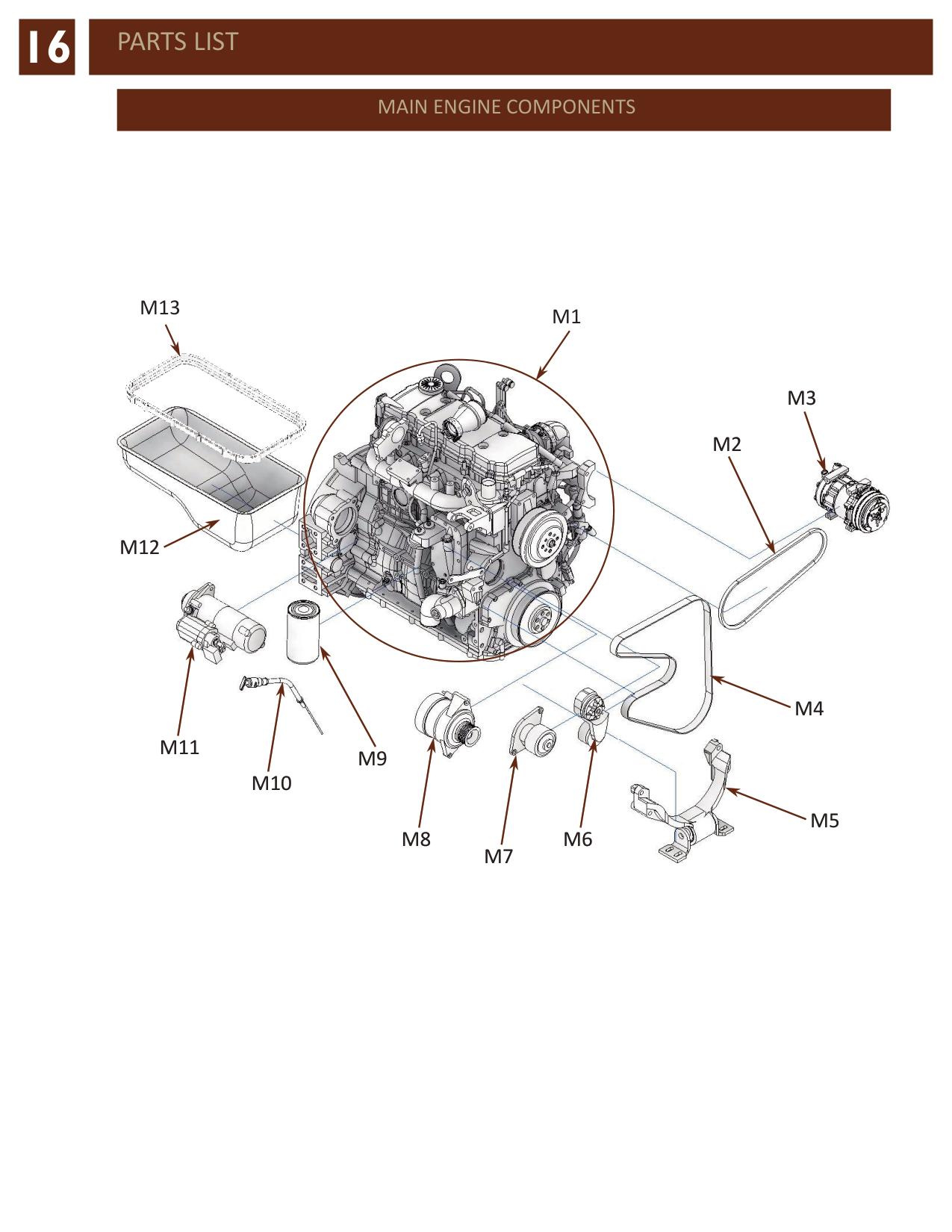

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| M1 | 28960 | QSB 4.5L COMMON ENGINE | |
| M2 | 28812 | AC BELT | |
| M3 | 26408A | 300 CC AC COMPRESSOR | |
| M4 | 28961 | SERPENTINE BELT | |
| M5 | 29902 | QSB 4.5 FRONT ENGINE MOUNT | |
| M6 | 28965 | BELT TENSIONER | |
| M7 | 27754A | WATER PUMP | |
| M8 | 27009A | 12V ALTERNATOR W/ PULLEY | |
| M9 | 28973 | OIL FILTER | |
| M10 | 28963 | DIP STICK | |
| M11 | 28962 | 12V 4.8 KW CW 10T STARTER | |
| M12 | 28966 | OIL PAN | |
| M13 | 28967 | OIL PAN GASKET |
