Front Chassis Assembly / Rear Chassis Assembly · Jackrabbit Jackrabbit JR 400-180 T3 (s/n 1252-1290)

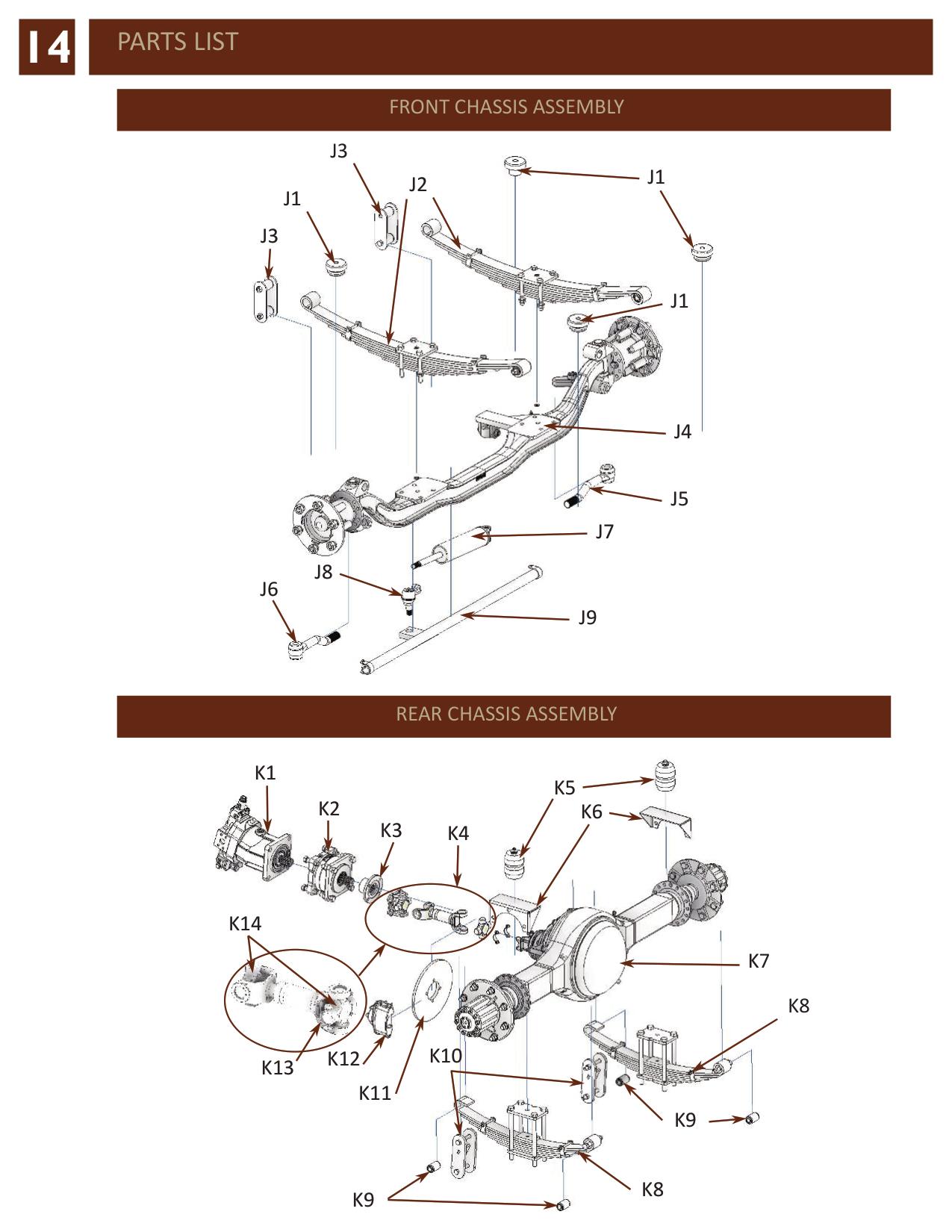

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| J1 | 33882 | FRONT SUSPENSION RUBBER DAMPER | |
| J2 | 29633 | FRONT LEAF SPRING | |
| J3 | 34273 | FRONT SPRING HANGAR | |
| J4 | 26234A | FRONT AXLE ASSEMBLY | |
| J5 | 27400 | TIE ROD END-RIGHT HAND | |
| J6 | 27399 | TIE ROD END-LEFT HAND | |
| J7 | 29751 | STEERING CYLINDER | |
| J7.1 | 29752 | STEERING CYLINDER SEAL KIT | |
| J8 | 22414 | VERTICAL SOCKET BALL JOINT | |
| J9 | 28163 | TIE ROD CROSS TUBE | |
| K1 | 34345 | ELEC. PROP. GROUND DRIVE MOTOR | |
| K1.1 | 26239A | GROUND DRIVE SHAFT SEAL | |
| K2 | 27869 | MICO PARKING BRAKE | |
| K2.1 | 27869A | BRAKE LINING KIT | |
| K2.2 | 27869B | BRAKE SEAL KIT | |
| K2.3 | 27869C | BRAKE SPRING KIT | |
| K2.4 | 27869D | BRAKE BEARING KIT | |
| K2.5 | 28571 | SEAL BREAK SHAFT | |
| K3 | 25820 | DRIVE LINE COMPANION FLANGE | |
| K4 | 26081 | SLIP YOKE | |
| K5 | 34546 | OVERLOAD STOP REST | |
| K6 | 28565 | OVERLOAD BUMP STOP | |
| K7 | 26233 | REAR AXLE ASSEMBLY | |
| K7.1 | 28800 | PINION SEAL | |
| K7.2 | 28822 | HUB SEAL | |
| K7.3 | 28826 | HUB GASKET | |
| K8 | 26449B | REAR LEAF SPRING | |
| K9 | 28272A | 3/4" BUSHING | |
| K10 | 33480 | REAR SPRING HANGER | |
| K11 | 34388 | BRAKE ROTOR PLATE | |
| K12 | 34225 | HYDRAULIC FLOATING CALIPER BRAKE | |
| K13 | 29939 | DRIVELINE U BOLT KIT | |
| K14 | 26081C | REPLACEMENT REPAIR KIT |
