Bin Parts / Frame Parts · Jackrabbit Jackrabbit JR 400 (s/n 645-822)

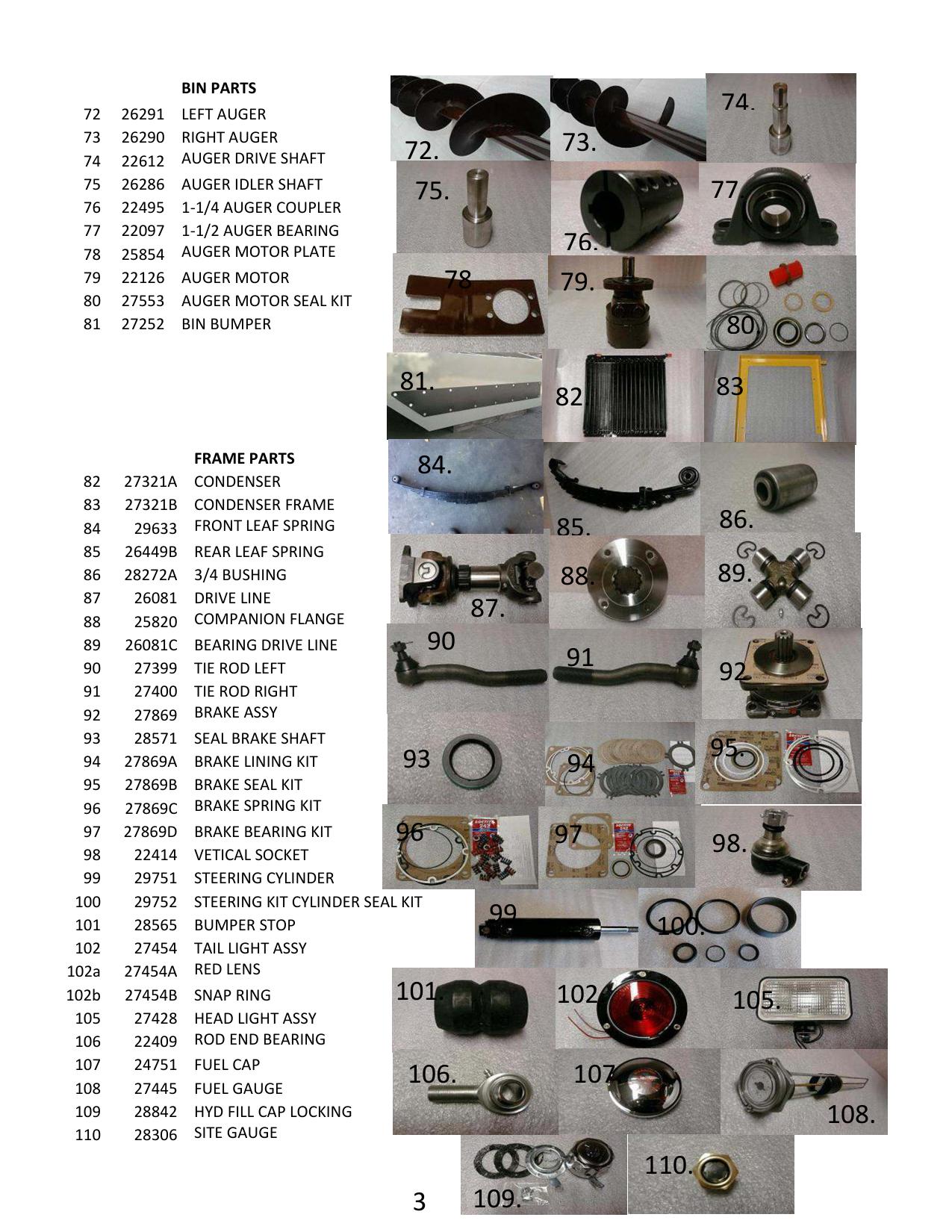

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 72 | 26291 | LEFT AUGER | |
| 73 | 26290 | RIGHT AUGER | |
| 74 | 22612 | AUGER DRIVE SHAFT | |
| 75 | 26286 | AUGER IDLER SHAFT | |
| 76 | 22495 | 1-1/4 AUGER COUPLER | |
| 77 | 22097 | 1-1/2 AUGER BEARING | |
| 78 | 25854 | AUGER MOTOR PLATE | |
| 79 | 22126 | AUGER MOTOR | |
| 80 | 27553 | AUGER MOTOR SEAL KIT | |
| 81 | 27252 | BIN BUMPER | |
| 82 | 27321A | CONDENSER | |
| 83 | 27321B | CONDENSER FRAME | |
| 84 | 29633 | FRONT LEAF SPRING | |
| 85 | 26449B | REAR LEAF SPRING | |
| 86 | 28272A | 3/4 BUSHING | |
| 87 | 26081 | DRIVE LINE | |
| 88 | 25820 | COMPANION FLANGE | |
| 89 | 26081C | BEARING DRIVE LINE | |
| 90 | 27399 | TIE ROD LEFT | |
| 91 | 27400 | TIE ROD RIGHT | |
| 92 | 27869 | BRAKE ASSY | |
| 93 | 28571 | SEAL BRAKE SHAFT | |
| 94 | 27869A | BRAKE LINING KIT | |
| 95 | 27869B | BRAKE SEAL KIT | |
| 96 | 27869C | BRAKE SPRING KIT | |
| 97 | 27869D | BRAKE BEARING KIT | |
| 98 | 22414 | VETICAL SOCKET | |
| 99 | 29751 | STEERING CYLINDER | |
| 100 | 29752 | STEERING KIT CYLINDER SEAL KIT | |
| 101 | 28565 | BUMPER STOP | |
| 102 | 27454 | TAIL LIGHT ASSY | |
| 102a | 27454A | RED LENS | |
| 102b | 27454B | SNAP RING | |
| 105 | 27428 | HEAD LIGHT ASSY | |
| 106 | 22409 | ROD END BEARING | |
| 107 | 24751 | FUEL CAP | |
| 108 | 27445 | FUEL GAUGE | |
| 109 | 28842 | HYD FILL CAP LOCKING | |
| 110 | 28306 | SITE GAUGE | |
| 111 | 29675 | CHEVRON TIRE | |
| 112 | 27020B | HIGHWAY TIRE | |
| 113 | 27020 | KNOBBY TIRE | |
| 114 | 26236 | FRONT RIM | |
| 115 | 26237 | RIM REAR | |
| 118 | 28649 | 4 WAY HARNESS | |
| 119 | 28948 | 50 WAY HARNESS | |
| 120 | 26305E | CAB HARNESS | |
| 121 | 27872A | 2 SWITCH/3 LIGHT PLATE ASSY | |
| 122 | 28214 | ACTIVE SWITCH | |
| 123 | 28213 | IDLER SWITCH | |
| 124 | 27854 | 5 SWITCH PLATE ASSY | |
| 125 | 26403 | LOW LOCK SWITCH | |
| 126 | 26405 | LIGHT SWITCH | |
| 127 | 26404 | BIN DUMP SWITCH | |
| 128 | 26403 | PARK BRAKE SWITCH | |
| 129 | 27157 | STARTER SOLENOID | |
| 130 | 22416 | IGNITION SWITCH ASSY | |
| 131 | 22416A | KEY | |
| 132 | 27545 | 50 AMP BREAKER | |
| 133 | 26399 | 30 AMP BREAKER | |
| 134 | 27786 | 6 AMP BREAKER | |
| 135 | 27948 | DIODE | |
| 136 | 26409 | HOT LUG | |
| 137 | 27774 | BATTERY | |
| 138 | 28801 | BATTERY HOLD DOWN | |
| 139 | 28802 | J BOLT KIT | |
| 140 | 27770 | BATTERY TO STARTER CABLE | |
| 141 | 27771 | STARTER TO HOT LUG CABLE | |
| 142 | 27772 | BATTERY TO BIN PUMP CABLE | |
| 143 | 27773 | BATTERY TO GROUND CABLE | |
| 144 | 28803 | STARTER TO GROUND CABLE | |
| 145 | 26410 | BIN DUMP PUMP |
