Jr400 Jackrunner · Jackrabbit Jackrabbit JR 400 (s/n 645-822)

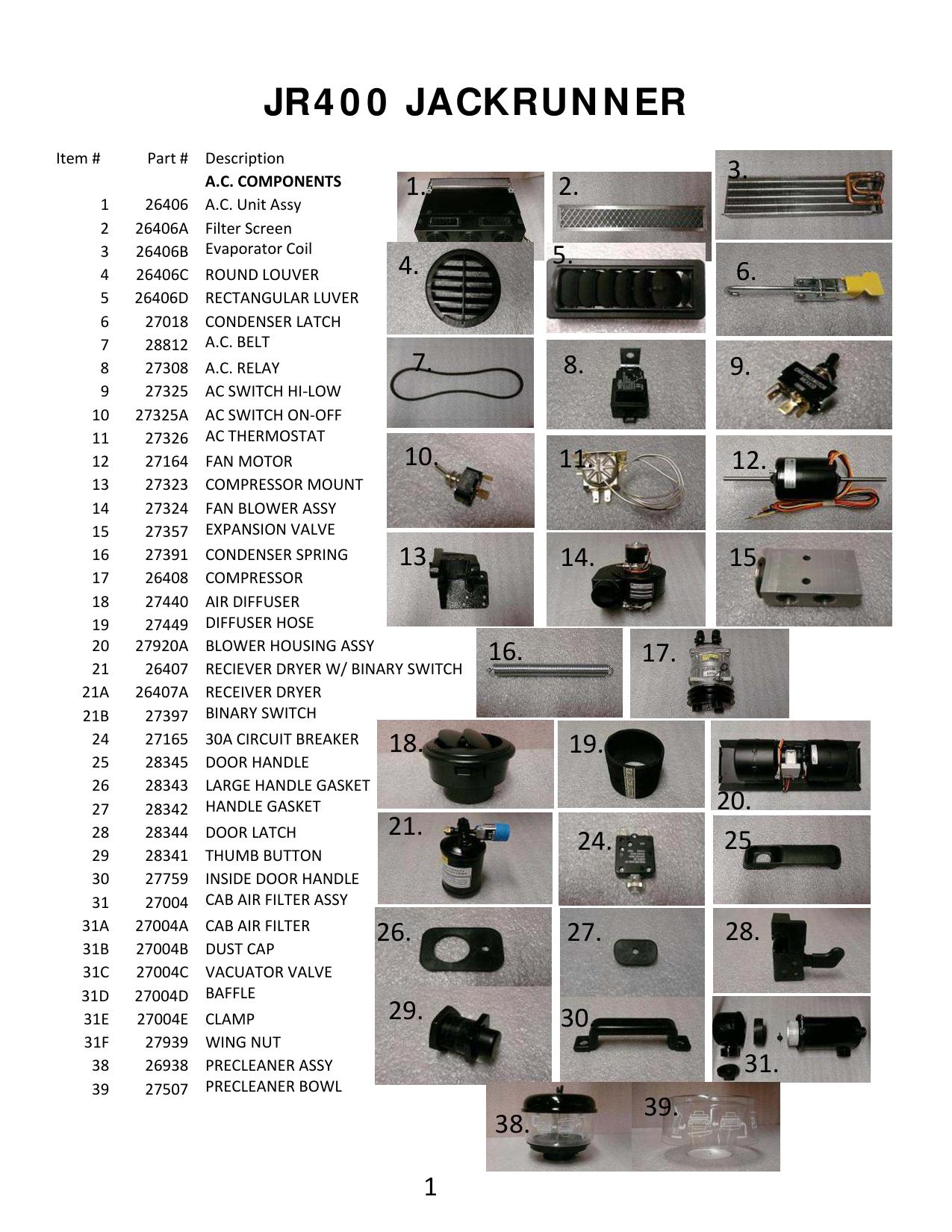

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | 26406 | A.C. Unit Assy | |
| 2 | 26406A | Filter Screen | |
| 3 | 26406B | Evaporator Coil | |
| 4 | 26406C | ROUND LOUVER | |
| 5 | 26406D | RECTANGULAR LUVER | |
| 6 | 27018 | CONDENSER LATCH | |
| 7 | 28812 | A.C. BELT | |
| 8 | 27308 | A.C. RELAY | |
| 9 | 27325 | AC SWITCH HI-LOW | |
| 10 | 27325A | AC SWITCH ON-OFF | |
| 11 | 27326 | AC THERMOSTAT | |
| 12 | 27164 | FAN MOTOR | |
| 13 | 27323 | COMPRESSOR MOUNT | |
| 14 | 27324 | FAN BLOWER ASSY | |
| 15 | 27357 | EXPANSION VALVE | |
| 16 | 27391 | CONDENSER SPRING | |
| 17 | 26408 | COMPRESSOR | |
| 18 | 27440 | AIR DIFFUSER | |
| 19 | 27449 | DIFFUSER HOSE | |
| 20 | 27920A | BLOWER HOUSING ASSY | |
| 21 | 26407 | RECIEVER DRYER W/ BINARY SWITCH | |
| 21A | 26407A | RECEIVER DRYER | |
| 21B | 27397 | BINARY SWITCH | |
| 24 | 27165 | 30A CIRCUIT BREAKER | |
| 25 | 28345 | DOOR HANDLE | |
| 26 | 28343 | LARGE HANDLE GASKET | |
| 27 | 28342 | HANDLE GASKET | |
| 28 | 28344 | DOOR LATCH | |
| 29 | 28341 | THUMB BUTTON | |
| 30 | 27759 | INSIDE DOOR HANDLE | |
| 31 | 27004 | CAB AIR FILTER ASSY | |
| 31A | 27004A | CAB AIR FILTER | |
| 31B | 27004B | DUST CAP | |
| 31C | 27004C | VACUATOR VALVE | |
| 31D | 27004D | BAFFLE | |
| 31E | 27004E | CLAMP | |
| 31F | 27939 | WING NUT | |
| 38 | 26938 | PRECLEANER ASSY | |
| 39 | 27507 | PRECLEANER BOWL | |
| 40 | 27146 | COMPRESSOR TO CONDENSER | |
| 41 | 27147 | CONDENSER TO DRYER | |
| 42 | 27865 | DYER TO AC UNIT | |
| 43 | 27866 | COMPRESSOR TO AC UNIT | |
| 44 | 27150 | CAB WALL TO AC UNIT | |
| 45 | 27148 | DRYER TO CAB | |
| 46 | 27149 | WALL TO AC UNIT | |
| 47 | 27151 | CAB WALL TO COMPRESSOR | |
| 48 | 27596A | DOOR WEATHER STRIPPING 17' | |
| 49 | 27837 | STEERING WHEEL | |
| 50 | 28316 | STEERING COLUMN | |
| 51 | 22026B | STEERING WHEEL NUT | |
| 52 | 22026 | STEERING MOTOR | |
| 53 | 22026A | STEERING MOTOR SEAL KIT | |
| 54 | 25914 | SMALL LEFT WINDOW | |
| 55 | 25915 | WINDOW FRONT | |
| 56 | 25916 | REAR WINDOW | |
| 57 | 25917 | RIGHT WINDOW | |
| 58 | 25918 | LEFT WINDOW | |
| 59 | 27547 | POP RIVIT | |
| 60 | 27273A | WINDOW LATCH | |
| 61 | 27801 | BIN AUGER VALVE | |
| 62 | 27801A | BIN AUGER VALVE HANDLE | |
| 63 | 27802 | BIN AUGER VALVE SEAL KIT | |
| 64 | 27879 | DIGITAL DISPLAY | |
| 65 | 27881 | THROTTLE CONTROL | |
| 66 | 27194 | FOAM BACK WALL | |
| 67 | 27198 | FOAM FRONT DOOR | |
| 68 | 26208 | FOAM ROOF | |
| 69 | 28823 | AIR SUSPENSION SEAT | |
| 70 | 28495 | DIAGNOSTIC DECAL | |
| 71 | 25837 | PLUNGER ROTARY FLOOR |
