← Jackrabbit JR 400-180 Stage V

Engine Attachments · Jackrabbit Jackrabbit JR 400-180 Stage V

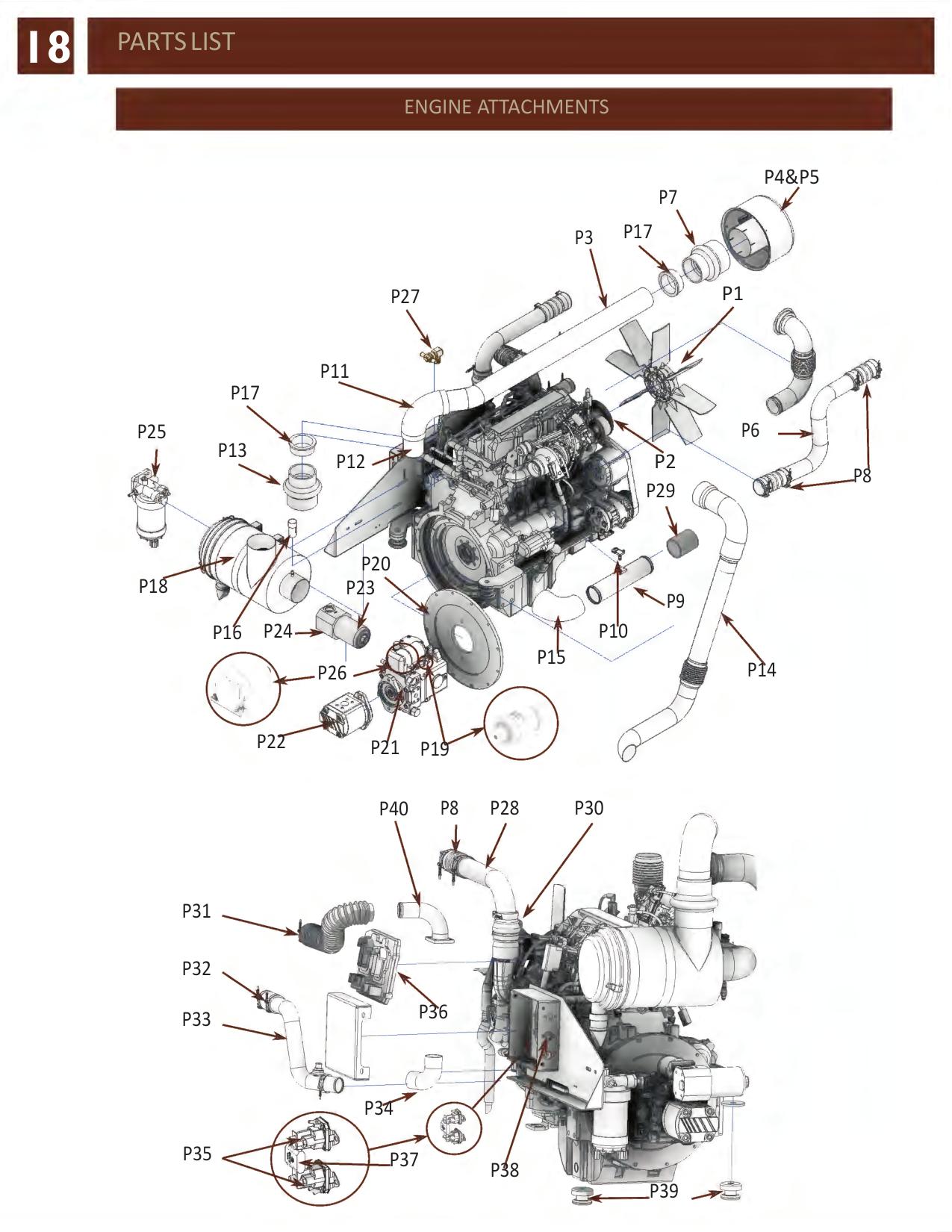

Tap a circled number on the diagram to identify the part.

#	Part number	Description	Qty
P1	34036	REVERSING FAN
P2	34301	CLEANFIX FAN ADAPTER 1-3/4"
P3	68501	PRECLEANER PIPE
P4	26939	TURBO II AIR CLEANER (NOT SHOWN)
P5	68198	CENTRI PRECLEANER
P6	68509	CAC INLET PIPE - T4F
P7	34783	REDUCING HUMP - 5" - 4"
P8	34786	2-1/2" X 6" CONVOLUTED CAC HOSE
P9	68494	AIR INTAKE PIPE WELDMENT - STAGE V
P10	34381	TBAP SENSOR
P11	68201	3.5" RUBBER 90 ELBOW
P12	68204	SHORT PRECLEANER PIPE - STAGE V
P13	68202	REDUCING HUMP 4.5" - 4"
P14	68520	EXHAUST PIPE WELDMENT SINGLE MODULE
P15	90L40R30	AIR INTAKE ELBOW
P16	27176	AIR FILTER GAUGE
P17	68203	3.5" - 4" INSERT
P18	27239	AIR FILTER BODY
P19	34347	HEAVY DUTY PRESSURE SENSOR
P20	28314B	PUMP MOUNT PLATE
P21	31121	VARIABLE DISPLACEMENT PUMP
P22	34125	GEAR PUMP
P23	34118	PRESSURE FILTER HOUSING
P24	34119	PRESSURE FILTER
P25	34311	FUEL SEPARATOR FILTER
P26	27006	CHARGE FILTER
P27	34335	DEF COOLANT VALVE
P28	34276	CAC OUTLET PIPE - T4F / STAGE 5
P29	68505	4" TURBO INTAKE STRAIGHT HOSE
P30	34784	3" - 2-1/2" CONV. REDUCER PUMP HOSE
P31	34122	FLEXIBLE RADIATOR HOSE - 2" X 20"
P32	34376	2" ID SILICONE STRAIGHT HOSE 4" LONG
P33	34294W	LOWER COOLANT PIPE
P34	34378	2" ID SILICONE ELBOW 4.5IN OC
P35	33417	MAG SWITCH
P36	34440	ELECTRONIC CONTROL MODULE CONN.
P37	33570	BUSS AMG 250A 32V FUSE
P38	34138	ENGINE POWER J-BOX
P39	27261	ENGINE MOUNT ISOLATOR
P40	34040	THERMOSTAT HOUSING WELDMENT
