Radiator Assembly · Jackrabbit Jackrabbit JR 400-180 Stage V

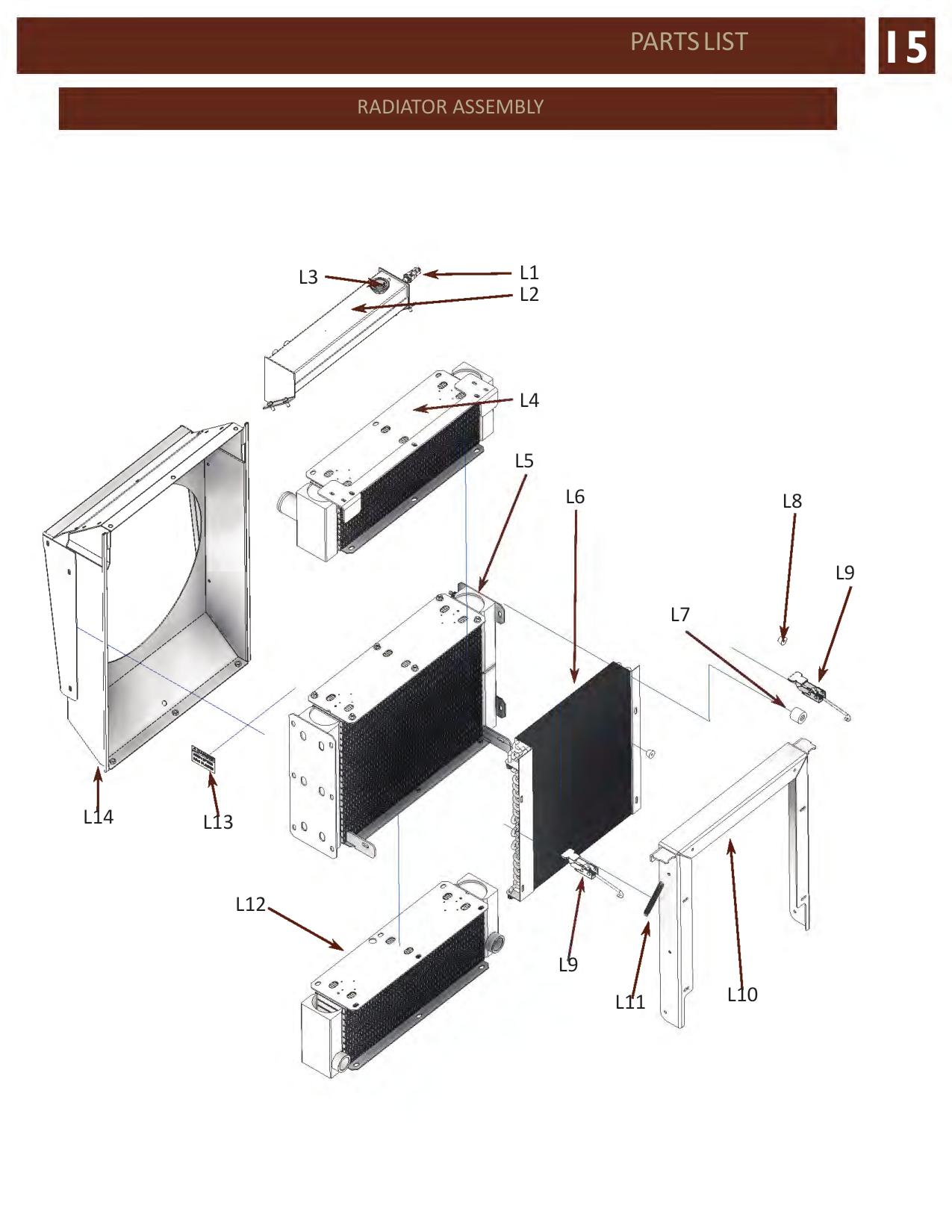

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| L1 | 33402 | SENSOR, COOLANT LEVEL, CASCO | |
| L2 | 34349 | RESERVOIR TANK | |
| L3 | 27135E | RADIATOR CAP | |
| L4 | 34341 | CAC ASSEMBLY | |
| L5 | 34343 | RADIATOR ASSEMBLY | |
| L6 | 33916 | CONDENSOR | |
| L7 | 34425 | RUBBER CONDENSER BUMPER (FRONT) | |
| L8 | 27873 | RUBBER CONDENSER BUMPER (BACK) | |
| L9 | 27018 | CONDENSOR LATCH | |
| L10 | 34530 | CONDENSOR FRAME | |
| L11 | 27391 | CONDENSOR RETURN SPRING | |
| L12 | 34342 | OIL COOLER ASSEMBLY | |
| L13 | 56480 | HIGH SPEED FAN BLADE DECAL | |
| L14 | 34344 | RADIATOR SHROUD |
