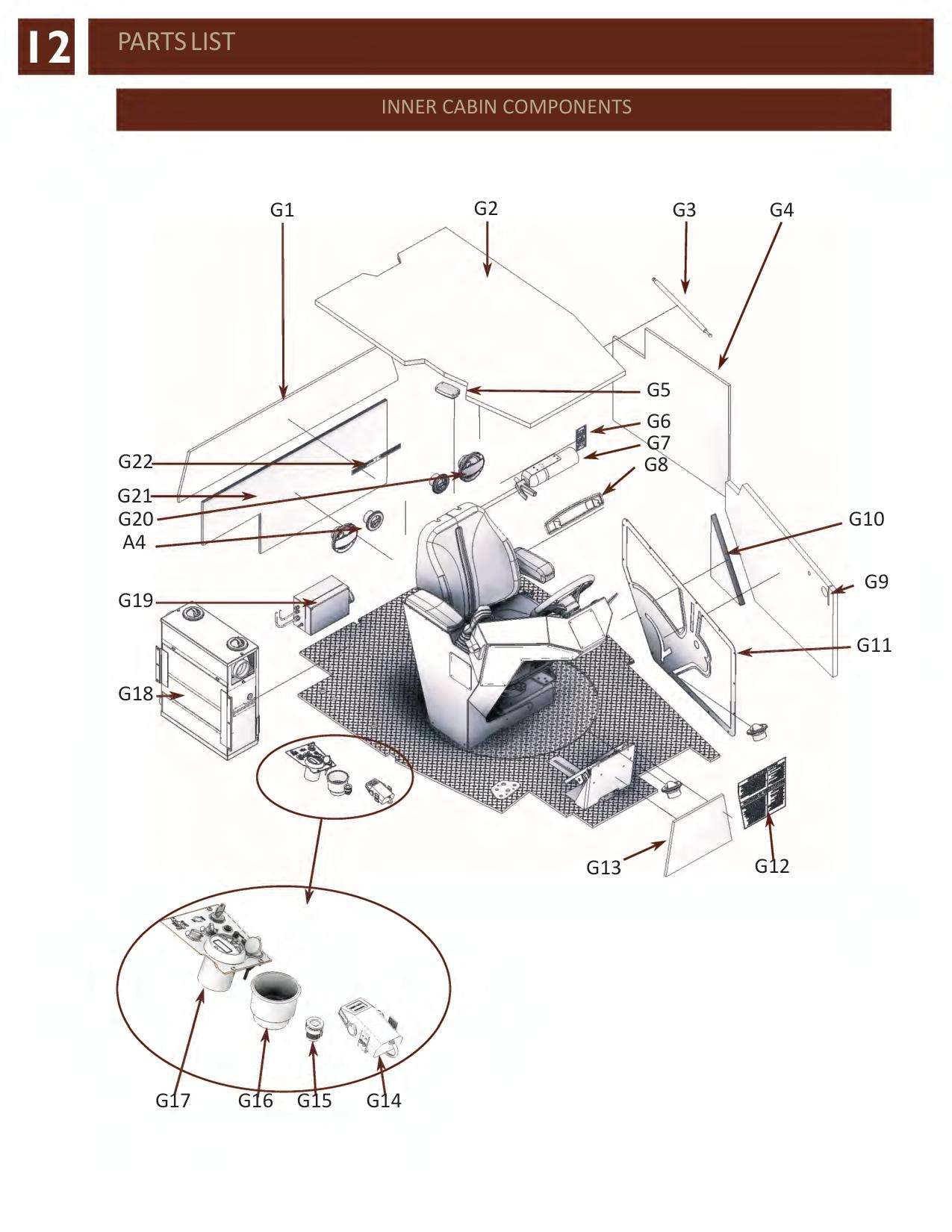

Inner Cabin Components · Jackrabbit Jackrabbit JR 400-180 Stage V
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| G1 | 62682 | CAB REAR UPPER INSULATION | |
| G2 | 62688 | CAB ROOF INSULATION | |
| G3 | 62622 | 10 X 75 DOOR GAS SHOCK | |
| G4 | 62680 | RUNNER CAB LEFT REAR INSULATION | |
| G5 | 62165 | DOME LIGHT | |
| G6 | 29880 | JR ENGRAVED SERIAL PLATE | |
| G7 | 34015 | FIRE EXTINGUISHER | |
| G8 | 62374 | WIDE ANGLE REAR VIEW MIRROR | |
| G9 | 62701 | CAB DOOR INSULATION | |
| G10 | 62679 | CAB INSULATION LEFT FRONT | |
| G11 | 62465 | CAB DOOR BUNNY | |
| G12 | 62512 | CAB MAIN WARNING LABEL | |
| G13 | 62482 | CAB FRONT INSULATION | |
| G14 | 29682 | BRAKE CONTROLLER | |
| G15 | 33929 | OUTLET RECEPTICLE 12V | |
| G16 | 62487 | COMBO DRINK HOLDER FLUSH MOUNT | |
| G17 | 62678 | CONTROL PANEL ASSEMBLY | |
| G18 | 62506 | CAB CONDENSOR UNIT | |
| G19 | 30402 | REVERSING FAN CONTROL BOX | |
| G20 | DLS524 | DLS524 SPEAKERS | |
| G21 | 62681 | CAB REAR LOWER INSULATION | |
| G22 | 33994 | POP-OUT WINDOW DECAL |
