Air Conditioning Components · Jackrabbit Jackrabbit JR 400-180 Stage V

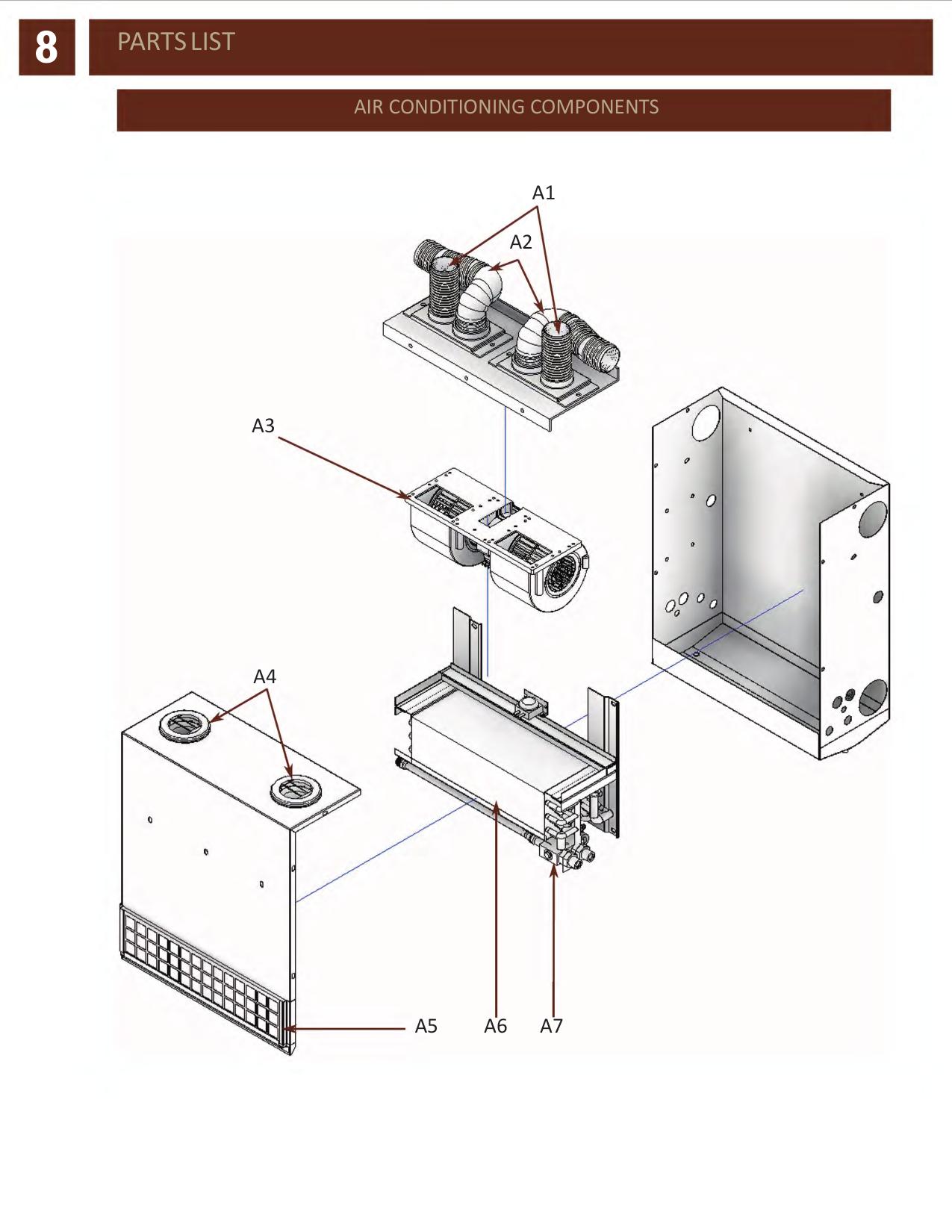

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| A1 | 34760 | 2 1/2IN AC ACORDION HOSE | |
| A2 | 34562 | 3 IN DUCT HOSE | |
| A3 | 62740 | AC BLOWER HOUSING ASSEMBLY | |
| A3.1 | 34171 | #8 COMPRESSOR TO CONDENSOR 70 IN. | |
| A3.2 | 34172 | #10 EVAPORATOR TO COMPRESSOR 82 IN. | |
| A3.3 | 34173 | #6 CONDENSER TO DRIER 51 IN. | |
| A3.4 | 34174 | #6 DRIER TO EVAPORATOR 41 IN. | |
| A4 | 34707 | DIFFUSER LOUVER | |
| A5 | 62738 | FILTER SCREEN | |
| A6 | 62739 | EVAPORATOR COIL | |
| A7 | 62737 | EXPANSION VALVE |
