← Jackrabbit JR 400-180 (s/n 823-1230)
W/Bullnose · Jackrabbit Jackrabbit JR 400-180 (s/n 823-1230)

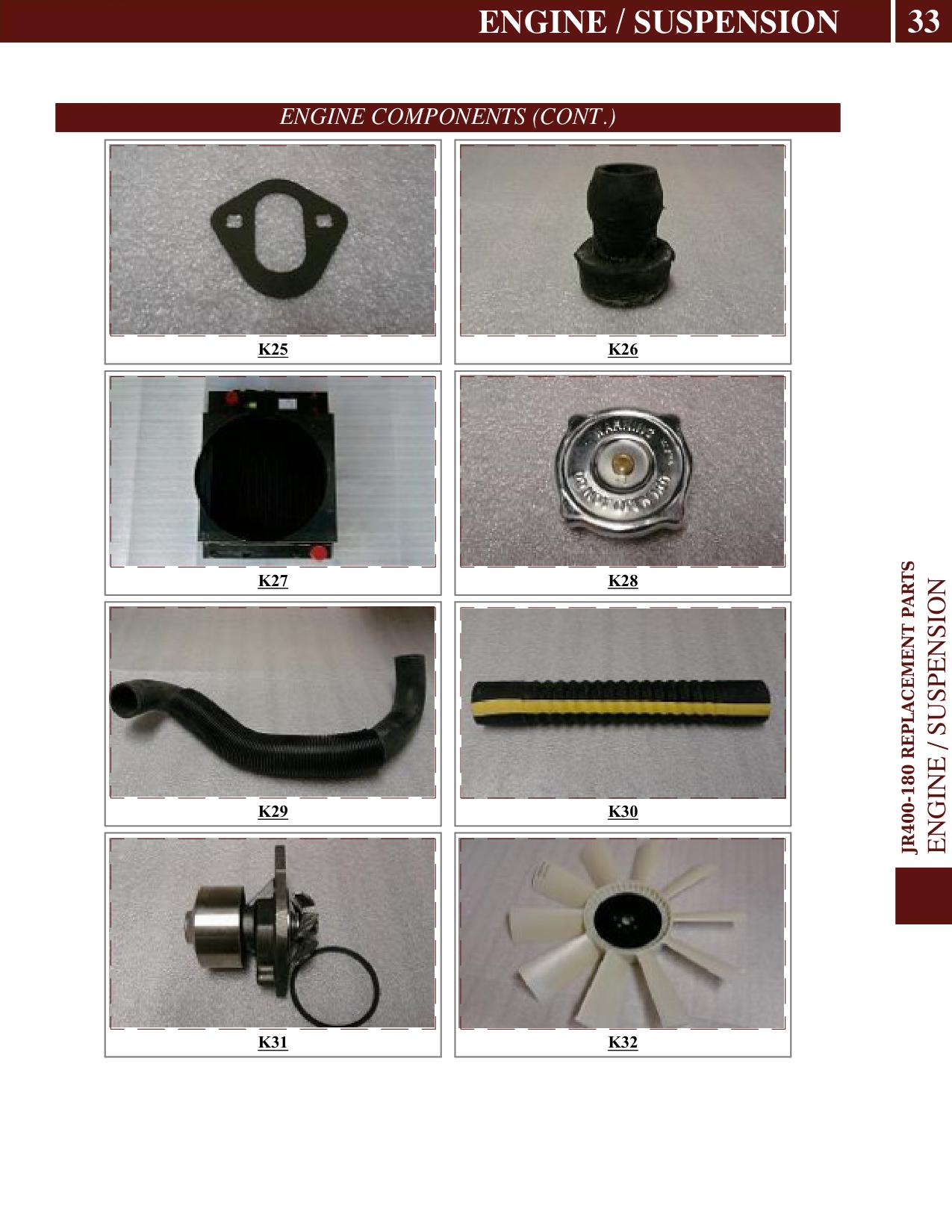

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| K25 | 28409A | Fuel Lift Pump Gasket | |
| K26 | 27261 | Isolator Bushing | |
| K27 | 27135D | Radiator | |
| K28 | 27135E | Radiator Cap | |
| K29 | 27945 | Upper Radiator Hose | |
| K30 | 27944 | Lower Radiator Hose | |
| K31 | 27754A | Water Pump | |
| K32 | 28974 | Engine Fan | |
| K33 | 28962 | Starter |
