← Jackrabbit JR 400-180 (s/n 823-1230)

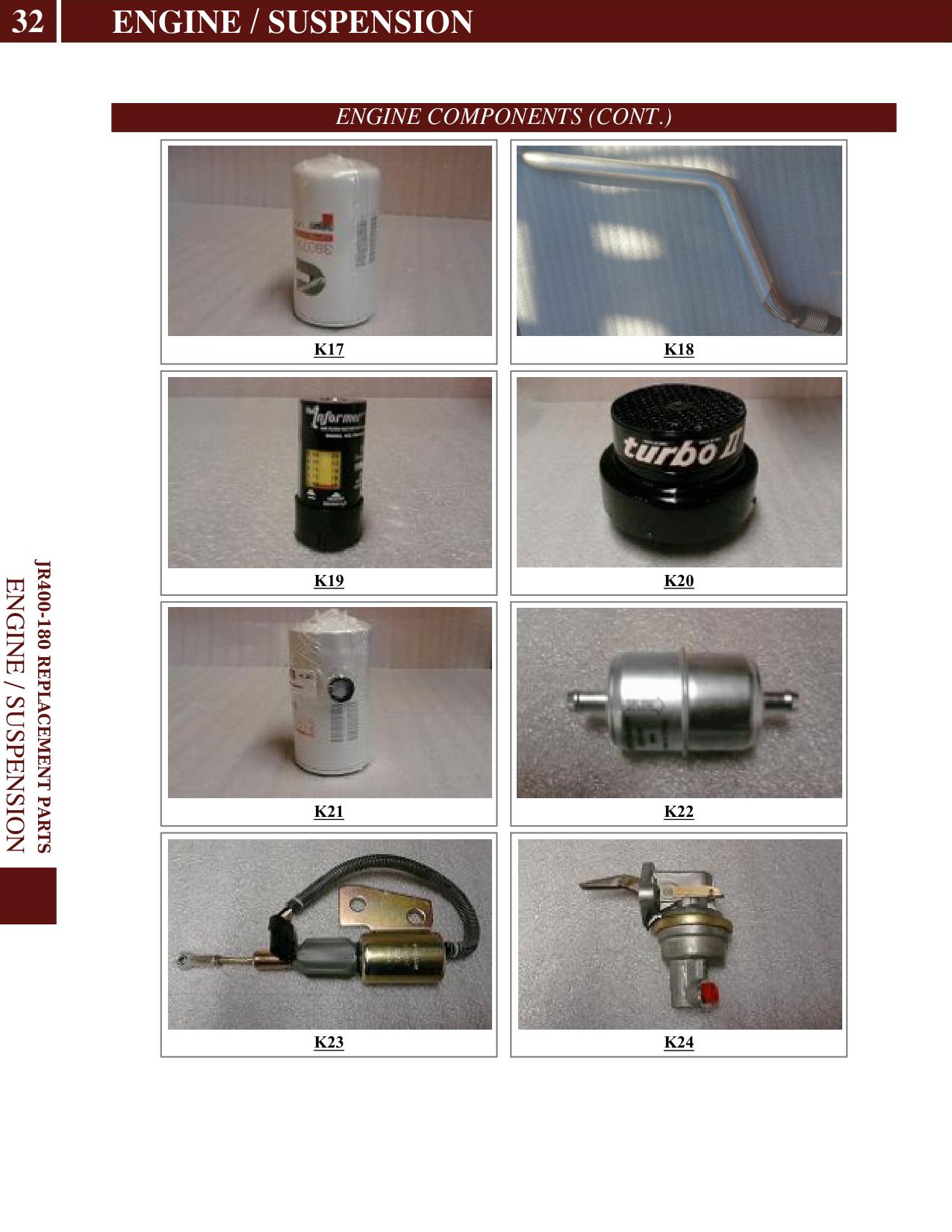

Engine Components · Jackrabbit Jackrabbit JR 400-180 (s/n 823-1230)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| K17 | 28973 | Oil Filter | |
| K18 | 26359 | Exhaust Pipe With Bellows | |
| K19 | 27176 | Filter Minder | |
| K21 | 28959 | Fuel Filter | |
| K22 | 27002 | Inline Fuel Filter | |
| K23 | 27167 | Fuel Shut Off Solenoid | |
| K24 | 28409 | Fuel Lift Pump |
