← Jackrabbit JR 400-180 (s/n 823-1230)

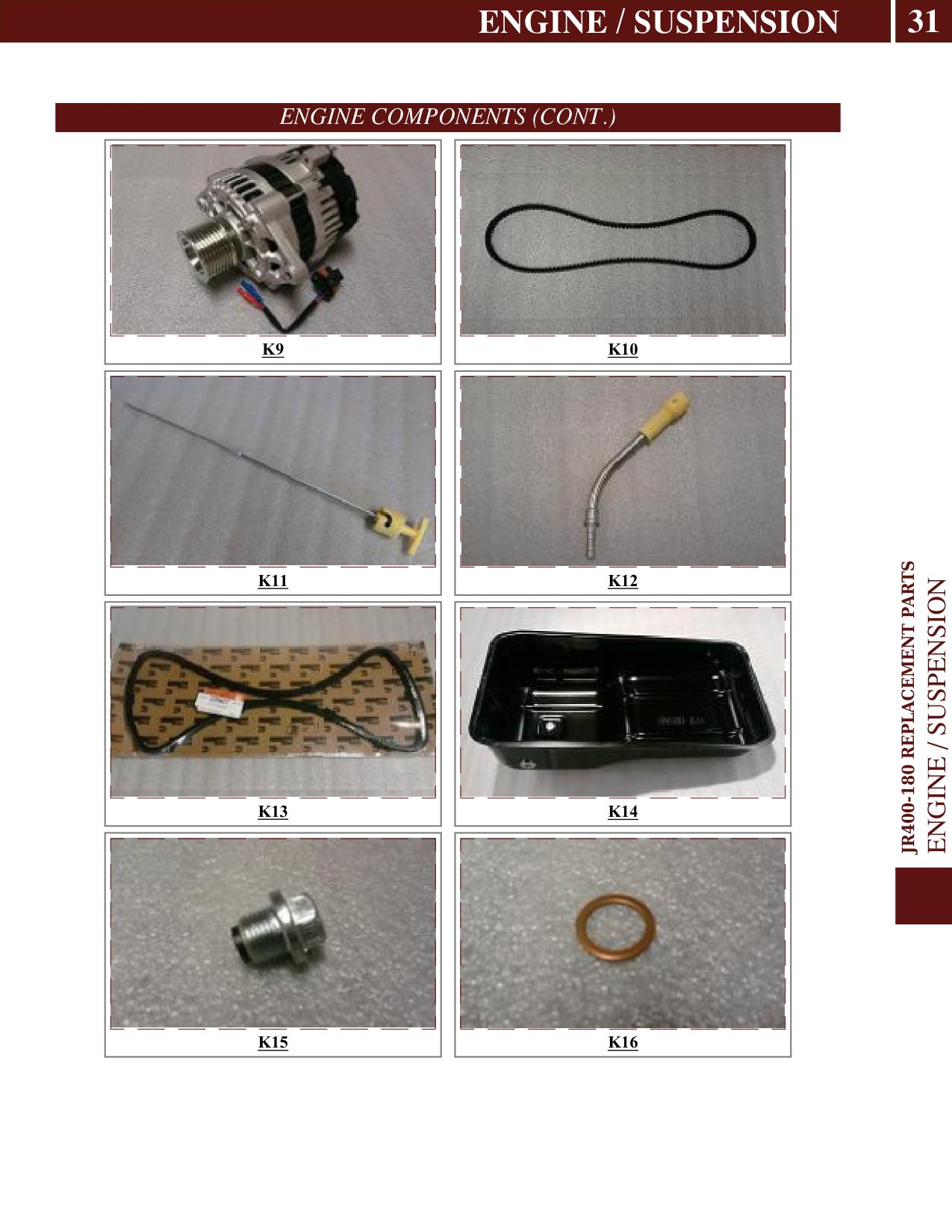

Engine Components · Jackrabbit Jackrabbit JR 400-180 (s/n 823-1230)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| K9 | 27009A | Alternator | |
| K10 | 28965 | Belt Tensioner | |
| K11 | 28963 | Dip Stick | |
| K12 | 28964 | Dip Stick Holder | |
| K13 | 28967 | Oil Pan Gasket | |
| K14 | 28966 | Oil Pan | |
| K15 | 28797 | Oil Drain Plug | |
| K16 | 28798 | Oil Drain Plug Washer |
