← Jackrabbit JR 400-180 (s/n 823-1230)
Electrical Components · Jackrabbit Jackrabbit JR 400-180 (s/n 823-1230)

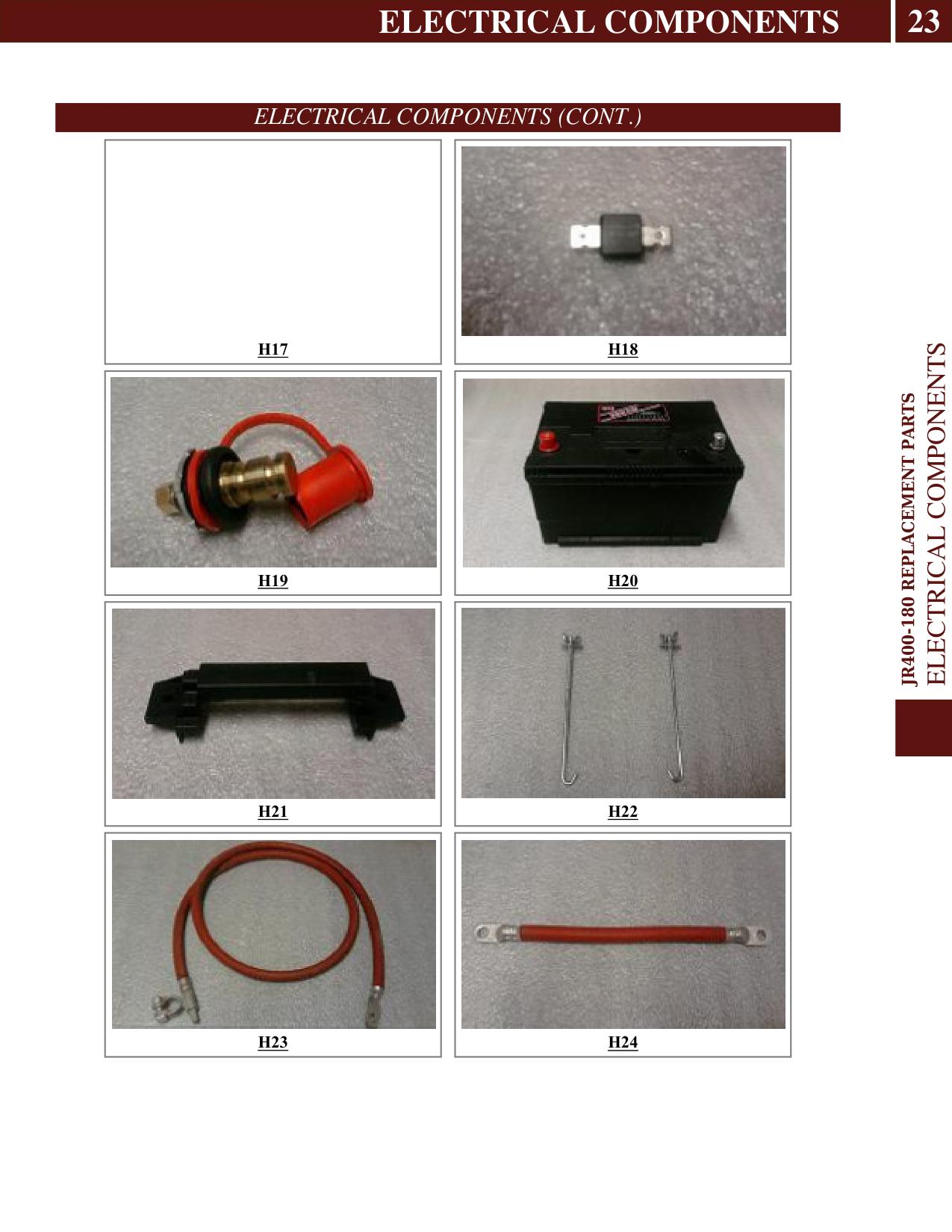

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| H17 | 27786 | 6 Amp Breaker - (No Image) | |
| H18 | 27948 | Diode | |
| H19 | 26409 | Hot Lug | |
| H20 | 27774 | Battery | |
| H21 | 28801 | Battery Hold Down | |
| H22 | 28802 | J Bolt Kit | |
| H23 | 27770 | Battery To Starter Cable | |
| H24 | 27771 | Starter To Hot Lug Cable |
