← Jackrabbit JR 400-180 (s/n 823-1230)
Electrical Components · Jackrabbit Jackrabbit JR 400-180 (s/n 823-1230)

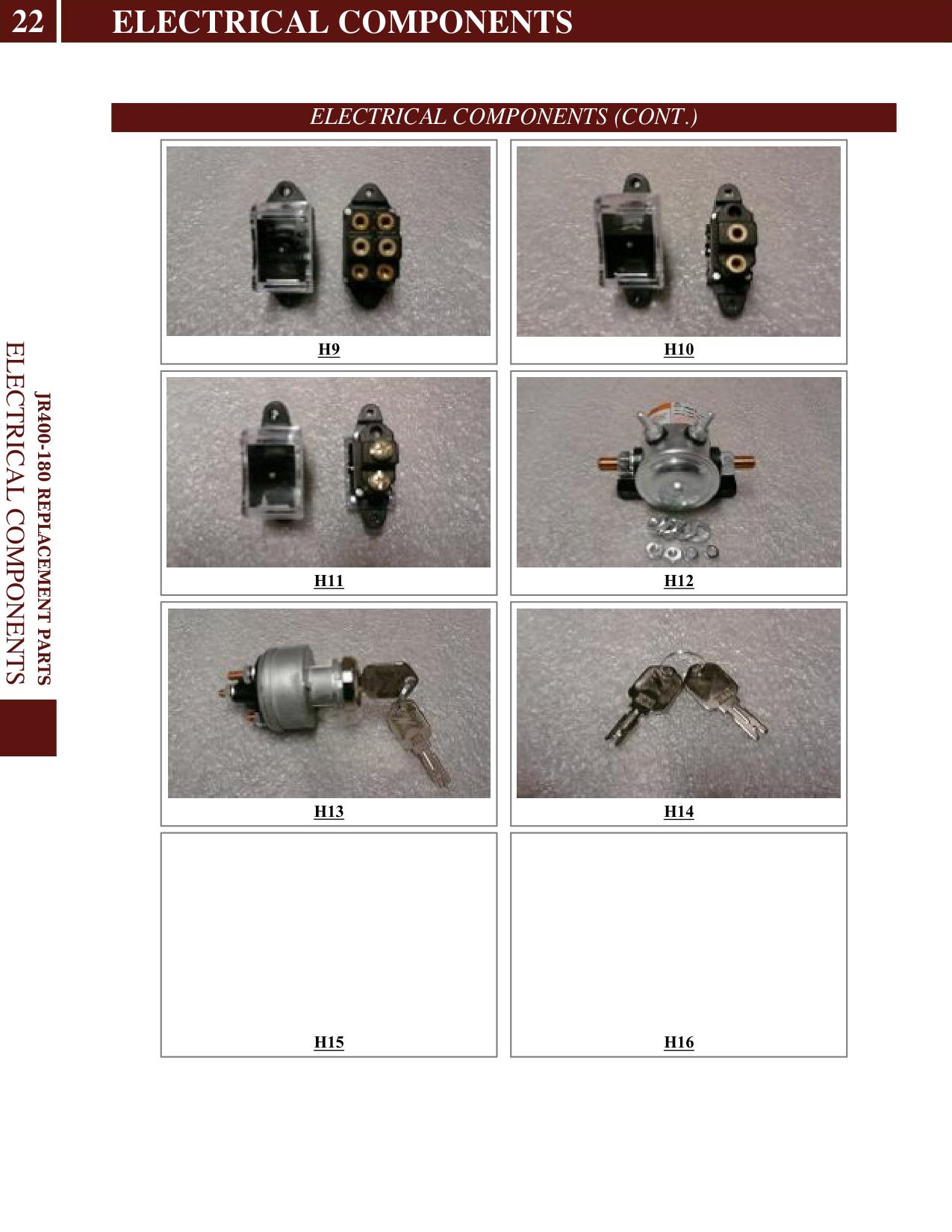

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| H9 | 26405 | Light Switch | |
| H10 | 26404 | Bin Dump Switch | |
| H11 | 26403 | Park Brake Switch | |
| H12 | 27157 | Starter Solenoid | |
| H13 | 22416 | Ignition Switch Assy | |
| H14 | 22416A | Key | |
| H15 | 33904 | 50 Amp Maxi Fuse - (No Image) | |
| H16 | 33938 | 15 Amp Circuit Breaker - (No Image) |
