← Jackrabbit JR 400-180 (s/n 823-1230)
Electrical Components · Jackrabbit Jackrabbit JR 400-180 (s/n 823-1230)

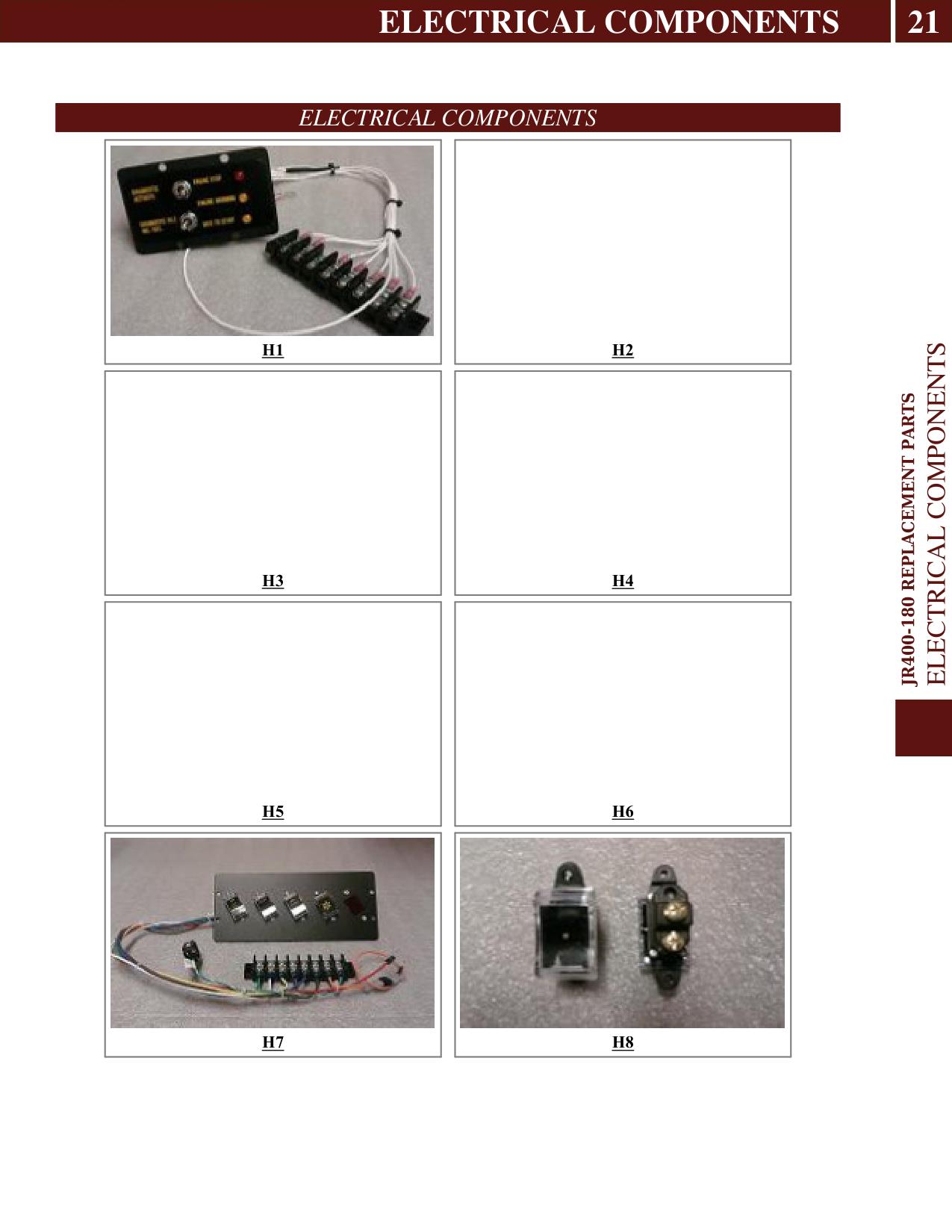

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| H1 | 27872A | 2 Switch 3 Light Assy | |
| H2 | 33946 | Component Panel Harness | |
| H3 | 33947 | Seat Harness Version 4-(No Image) | |
| H4 | 33948 | Engine Harness Version 4 - (No Image) | |
| H5 | 33949 | Vehicle Harness Version 4 - (No Image) | |
| H6 | 33940 | Ignition &A/C Switch Harness - (No Image) | |
| H7 | 27854 | 5 Switch Plate Assembly | |
| H8 | 26403 | Low Lock Switch |
