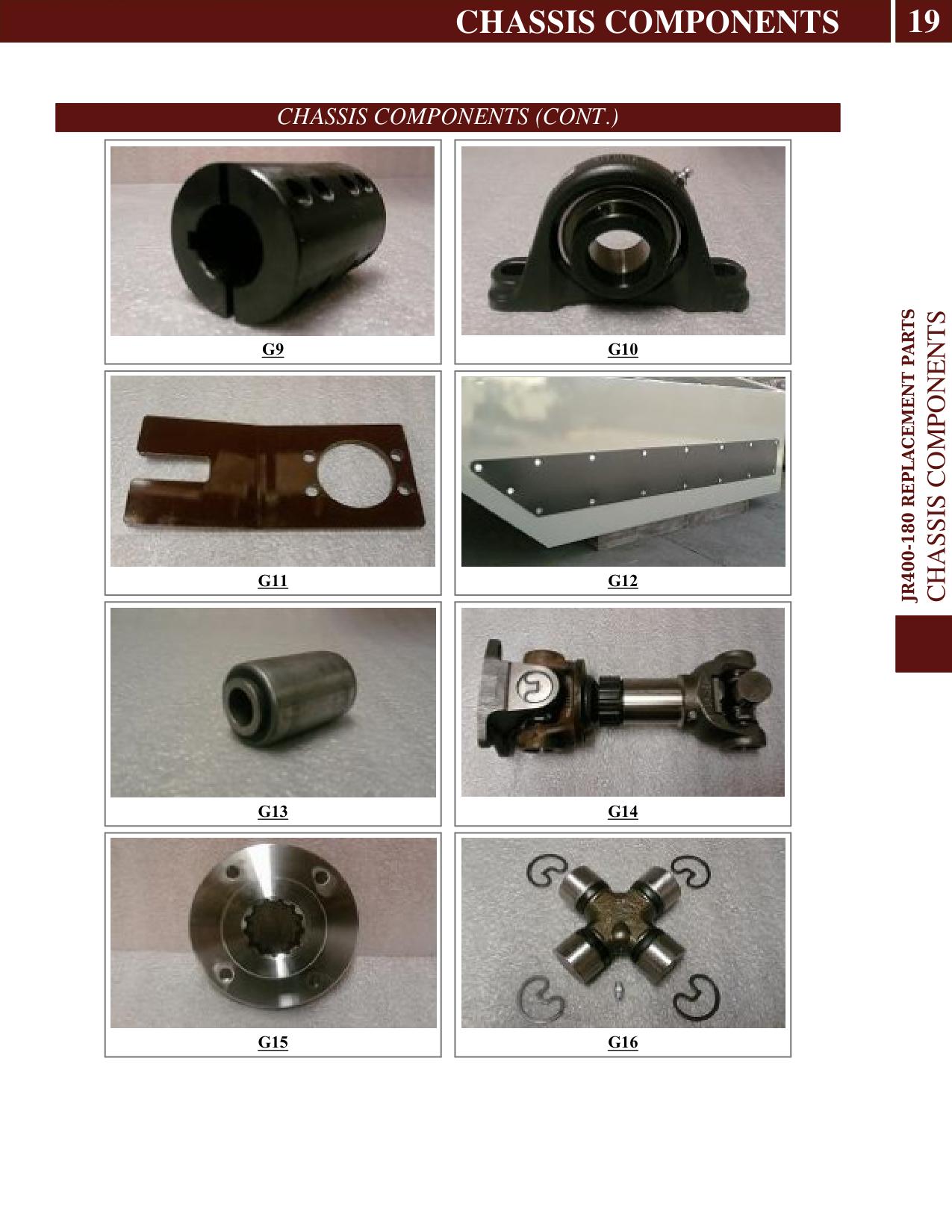

Chassis Components · Jackrabbit Jackrabbit JR 400-180 (s/n 823-1230)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| G9 | 22495 | 1-1/4 Auger Coupler | |
| G10 | 22097 | 1-1/2 Auger Bearing | |
| G11 | 25854 | Auger Motor Plate | |
| G12 | 27252 | Bin Bumper | |
| G13 | 28272A | 3/4 Bushing | |
| G14 | 26081 | Drive Line | |
| G15 | 25820 | Companion Flange | |
| G16 | 26081C | Bearing Drive Line |
